Description
AX3000 Dual-Band WiFi 6 (802.11ax) PoE Access Point, support up to 5 SSIDs and VLAN, Self-defined Network, support PoE & PoE+, easy management app, AiMesh compatible
Your Business WiFi Expert Within Reach
The ASUS ExpertWiFi EBA63 is a Power over Ethernet (PoE) solution that provides fast, seamless and secure networking, with rich features tailored for small-to-midsized businesses. With its easy scalability, it can effortlessly adapt to your business network needs.
Fast, Versatile Connectivity to Accommodate All Business Scenarios
The ASUS ExpertWiFi EBA63 provides seamless connectivity for various business settings, featuring the flexible power options of PoE (Power over Ethernet) and AC adapters. By connecting to a PoE switch or PoE wired router, you can get both power and data transmission over a single Ethernet cable.
Extend Your Business Network with ASUS ExpertWiFi
ASUS ExpertWiFi networking products are designed for easy scalability to fit a variety of SMB scenarios. By integrating ExpertWiFi series products, you can extend your business network coverage and access a complete suite of ExpertWiFi’s software features to boost your business operations. You can also connect the ExpertWiFi products with ASUS AiMesh extendable routers.
*The ASUS ExpertWiFi series is compatible with ASUS AiMesh products; however, the functionality of software features is subject to the capabilities of the primary router. The availability of some ExpertWiFi features may also depend on whether the AiMesh router supports them.
Key Features
- Seamless and Extendable Connections — Enjoy uninterrupted roaming with WiFi 6 speeds of up to 3000 Mbps, support for up to 100 active devices and easy scalability to meet the evolving needs of your business network
- Secure and Segmented Networking – Easy WiFi network settings via Self-defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios
- Flexible Deployment with PoE — Support for both Power over Ethernet (PoE) connection and AC adapters, providing versatile options for installation

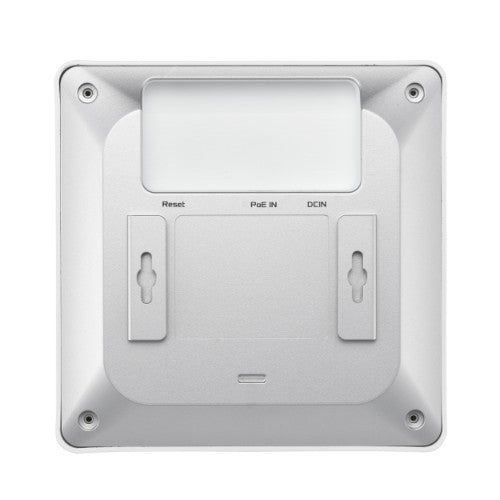

- Accommodate to Any Space — Supports ceiling and wall mounting to fit into various business environments with more flexibility
- Built for Safety and Reliability — Compliant with IEC 60601-1-2 standards, and with the top half of the device made of materials that meet the UL94 5VB plastics flammability standard*, the EBA63 ensures a stable and reliable connection
- Only the top half of the EBA63 is constructed using UL94 5VB plastics flammability standard material
Description
ASUS ExpertWiFi EBA63 PoE Access PointYour Business WiFi Expert Within Reach
The ASUS ExpertWiFi EBA63 is a Power over Ethernet (PoE) solution that provides fast, seamless and secure networking, with rich features tailored for small-to-midsized businesses. With its easy scalability, it can effortlessly adapt to your business network needs.
Fast, Versatile Connectivity to Accommodate All Business Scenarios
The ASUS ExpertWiFi EBA63 provides seamless connectivity for various business settings, featuring the flexible power options of PoE (Power over Ethernet) and AC adapters. By connecting to a PoE switch or PoE wired router, you can get both power and data transmission over a single Ethernet cable.
Extend Your Business Network with ASUS ExpertWiFi
ASUS ExpertWiFi networking products are designed for easy scalability to fit a variety of SMB scenarios. By integrating ExpertWiFi series products, you can extend your business network coverage and access a complete suite of ExpertWiFi’s software features to boost your business operations. You can also connect the ExpertWiFi products with ASUS AiMesh extendable routers.
*The ASUS ExpertWiFi series is compatible with ASUS AiMesh products; however, the functionality of software features is subject to the capabilities of the primary router. The availability of some ExpertWiFi features may also depend on whether the AiMesh router supports them.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2402 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Syslog | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Spread spectrum method | OFDMA |
| Frequency band | 2.4 - 5 GHz |
| Number of users | 100 user(s) |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2402 Mbit/s |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Processor frequency | 1.7 MHz |
| Wireless LAN features | |
| Frequency band | 2.4 - 5 GHz |
| Network | |
| Spread spectrum method | OFDMA |
| Number of users | 100 user(s) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Management features | |
| VLAN support | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Spread spectrum method | OFDMA |
| Frequency band | 2.4 - 5 GHz |
| Number of users | 100 user(s) |
| VLAN support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| BeamForming | Yes |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Processor frequency | 1.7 MHz |
| Security | |
| Number of SSID supported | 5 |
| Security algorithms | IPSec, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPS |
| MAC address filtering | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Input current | 1.5 A |
| DC voltage range | 12 V |
| Design | |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power |
| Antenna | |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Technical details | |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Processor | |
| Built-in processor | Yes |
| Indication | |
| LED indicators | Power |
| Weight & dimensions | |
| Width | 160 mm |
| Depth | 160 mm |
| Weight | 426 g |
| Height | 42 mm |
| Package width | 262 mm |
| Package depth | 180 mm |
| Package height | 58 mm |
| Package weight | 750 g |
| Packaging data | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Package type | Box |
| Package width | 262 mm |
| Package depth | 180 mm |
| Package height | 58 mm |
| Package weight | 750 g |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Package type | Box |
