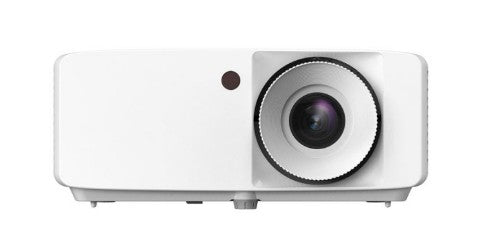

Optoma HZ146X-W, 3800 ANSI lumens, DLP, 1080p (1920x1080), 2000000:1, 16:9, 508 - 7620 mm (20 - 300")
Description
Optoma HZ146X-W. Projector brightness: 3800 ANSI lumens, Projection technology: DLP, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 30000 h. Focal length range: 12.81 - 16.74 mm, Zoom type: Manual, Zoom ratio: 1.1:1. Analog signal format system: NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL 4.43, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N,..., Supported 3D formats: Frame Sequential, Supported video modes: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. Serial interface type: RS-232, HDMI connector type: Full-size
Specifications
| Projector |
|---|
| Number of colours |
1.073 billion colours |
| Projector native resolution |
1080p (1920x1080) |
| Native aspect ratio |
16:9 |
| Supported aspect ratios |
4:3, 16:10, 16:9 |
| Screen size compatibility |
508 - 7620 mm (20 - 300") |
| Projection distance |
0.8 - 10 m |
| Contrast ratio (typical) |
2000000:1 |
| Zoom ratio |
1.1:1 |
| Vertical scan range |
24 - 120 Hz |
| Horizontal scan range |
15 - 140 kHz |
| Uniformity |
75% |
| Keystone correction, vertical |
+\-30° |
| Keystone correction, horizontal |
+\-30° |
| Projection technology |
DLP |
| Projector brightness |
3800 ANSI lumens |
| Zoom type |
Manual |
| Lamps |
|---|
| Light source type |
Laser |
| Service life of light source |
30000 h |
| Light source |
|---|
| Light source type |
Laser |
| Service life of light source |
30000 h |
| Lens system |
|---|
| Zoom ratio |
1.1:1 |
| Focal length range |
12.81 - 16.74 mm |
| Throw ratio |
1.48:1 - 1.62:1 |
| Offset |
116% |
| Zoom type |
Manual |
| Scanning frequency |
|---|
| Vertical scan range |
24 - 120 Hz |
| Horizontal scan range |
15 - 140 kHz |
| Video |
|---|
| Supported 3D formats |
Frame Sequential |
| Analog signal format system |
NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL 4.43, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L |
| Full HD |
Yes |
| 3D |
Yes |
| Supported video modes |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
15 W |
| Ports & interfaces |
|---|
| HDMI connector type |
Full-size |
| HDMI version |
2.0 |
| VGA (D-Sub) ports quantity |
0 |
| HDMI ports quantity |
2 |
| USB 2.0 ports quantity |
1 |
| Composite video in |
0 |
| Audio (L/R) in |
1 |
| Serial interface type |
RS-232 |
| DVI port |
No |
| Component video (YPbPr/YCbCr) in |
0 |
| Sound emission |
|---|
| Noise level |
34 dB |
| Technical details |
|---|
| Product colour |
White |
| On Screen Display (OSD) |
Yes |
| Performance |
|---|
| On Screen Display (OSD) |
Yes |
| Vertical scan range |
24 - 120 Hz |
| Horizontal scan range |
15 - 140 kHz |
| Noise level |
34 dB |
| Features |
|---|
| On Screen Display (OSD) |
Yes |
| Noise level |
34 dB |
| International Protection (IP) code |
IP6X |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
15 W |
| Design |
|---|
| Product type |
Standard throw projector |
| Cable lock slot type |
Kensington |
| Product colour |
White |
| Cable lock slot |
Yes |
| Power |
|---|
| Power consumption (max) |
139 W |
| Power source |
AC |
| Power consumption (typical) |
88 W |
| Power consumption (standby) |
0.5 W |
| Packaging data |
|---|
| Package width |
310 mm |
| Package depth |
250 mm |
| Package height |
120 mm |
| Package weight |
4.2 kg |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Supplier features |
|---|
| Commodity code |
8528620000 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
0 - 80% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Package width |
310 mm |
| Package depth |
250 mm |
| Package height |
120 mm |
| Weight |
3 kg |
| Width |
274 mm |
| Depth |
216 mm |
| Height |
114 mm |
| Package weight |
4.2 kg |
| Packaging content |
|---|
| Remote control included |
Yes |
| Manual |
Yes |
| Cables included |
Power |
| Batteries included |
Yes |
