Description
BCM2712 2.4GHz 64-bit Arm Cortex-A76, SDRAM 8GB, VideoCore VII GPU, 4Kp60 HDMI, Bluetooth 5.0, 802.11ac Wi-Fi
Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi. USB 3 has more total bandwidth, for much faster transfer speeds. Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.
More than twice as fast and infinitely smoother

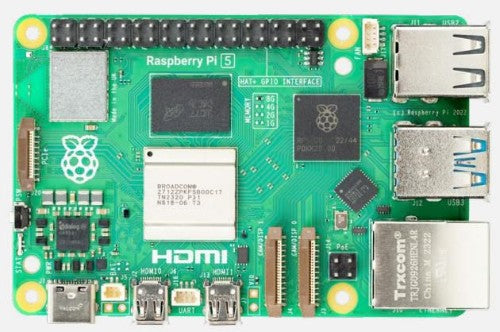

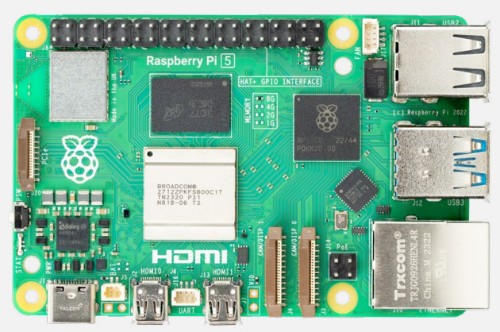

Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 8GB, this is the fastest, smoothest Raspberry Pi experience yet.
All aboard the PCI express
This addition to Raspberry Pi allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.
Raspberry Pi OS
The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5. The newest version of our operating system delivers a superb desktop performance, making it an ideal computer for work, leisure, enterprise, and more.
Key Features
- Power button
- Dual 4Kp60
- Real-time clock
- UART debug port
Description
RP1Raspberry Pi 5 is built using the RP1 I/O controller, a package containing silicon designed in-house at Raspberry Pi. USB 3 has more total bandwidth, for much faster transfer speeds. Camera and DSI display connectors are interchangeable, so you can have one of each, or two the same.
More than twice as fast and infinitely smoother
Raspberry Pi 5 features the Broadcom BCM2712 quad-core Arm Cortex A76 processor @ 2.4GHz, making it up to three times faster than the previous generation. With RAM variants up to 8GB, this is the fastest, smoothest Raspberry Pi experience yet.
All aboard the PCI express
This addition to Raspberry Pi allows you to connect an M.2 SSD to your Raspberry Pi, giving you speedy data transfer and super-fast boot.
Raspberry Pi OS
The latest release of Raspberry Pi OS is made to get the most from Raspberry Pi 5. The newest version of our operating system delivers a superb desktop performance, making it an ideal computer for work, leisure, enterprise, and more.
Specifications
| Processor | |
|---|---|
| Processor model | Arm Cortex-A76 |
| Processor frequency | 2400 MHz |
| Processor cache | 512 KB |
| Processor cores | 4 |
| 64-bit computing | Yes |
| Processor manufacturer | ARM |
| Memory | |
| Maximum internal memory | 8 GB |
| Internal memory type | LPDDR4x-SDRAM |
| Compatible memory cards | MicroSD (TransFlash) |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Bluetooth version | 5.0 |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Power over Ethernet (PoE) | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 2 |
| Bluetooth | Yes |
| MPI DSI interface | Yes |
| MPI CSI interface | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Bluetooth Low Energy (BLE) | Yes |
| Integrated LAN | Yes |
| Expansion slots | |
| PCI version | 2.0 |
| PCI Express interface data lanes | x1 |
| Features | |
| Real-time clock (RTC) | Yes |
| On/off button | Yes |
| DC input voltage | 5 V |
| USB powered | Yes |
| Power | |
| DC input voltage | 5 V |
| USB powered | Yes |
| Input current | 5 A |
| Weight & dimensions | |
| Width | 85 mm |
| Depth | 49 mm |
| Board dimensions | 85 x 49 mm |
