Manhattan Wall Mount for TV & Monitors (Full Motion), For screens 32" to 65", VESA compatability: all between 100x100mm and 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 40kg, Black, Bracket, Lifetime

Wall Mount for TV & Monitors (Full Motion), For screens 32" to 65", VESA compatability: all between 100x100mm and 600x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 40kg, Black, Bracket, Lifetime Warranty

Key Features

• Supports one flat or curved 37"" to 80"" TV up to 40 kg (88 lbs.)
• Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment

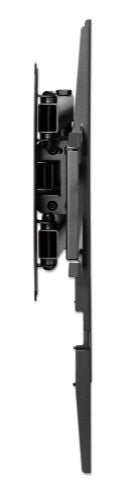

• Holds TV 67 to 355 mm (2.6 to 14 in.) from wall
• Heavy-duty steel construction with powder coating
• Includes attachable bubble level

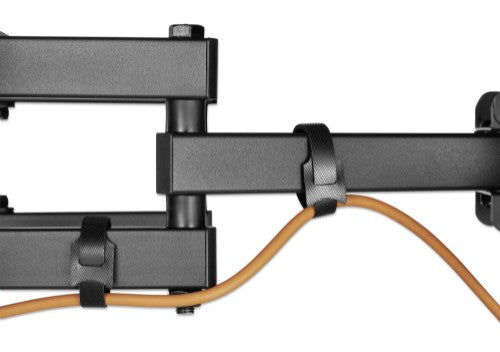

• Built-in cable management to minimize clutter
• Easy installation; ideal for home, office and commercial applications
• Meets VESA standards from 100x100 to 600x400 (e.g., 100x100, 100x150, 150x100, 100x200, 200x100, 150x150, 200x200, 300x200, 400x200, 300x300, 400x300, 600x200, 400x400, 600x300, 600x400)

Description

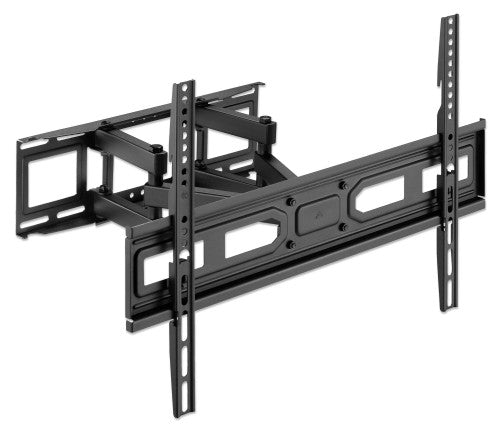

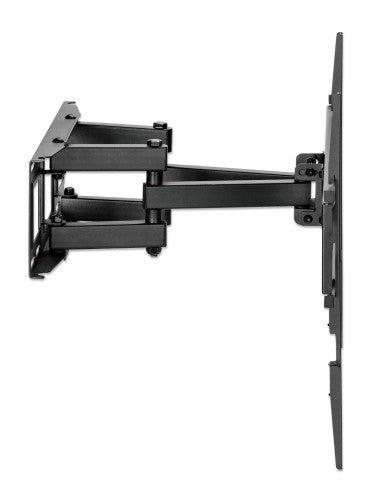

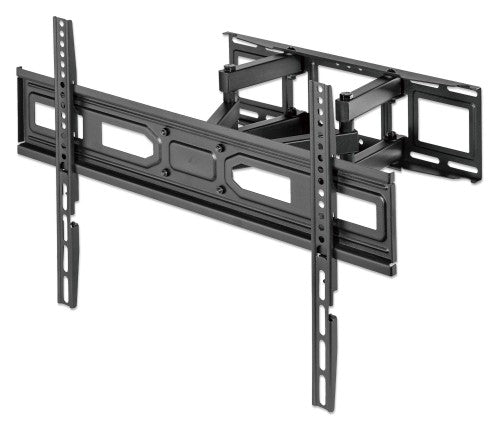

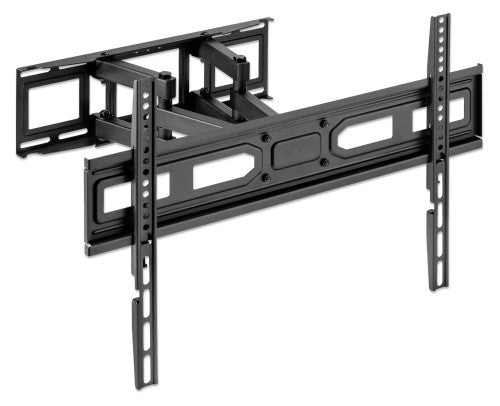

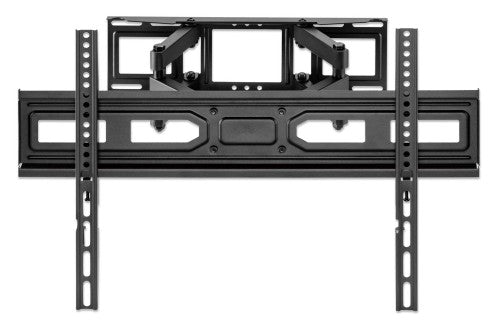

Articulating TV Wall Bracket – fully adjustable mounting bracket to fit almost any space

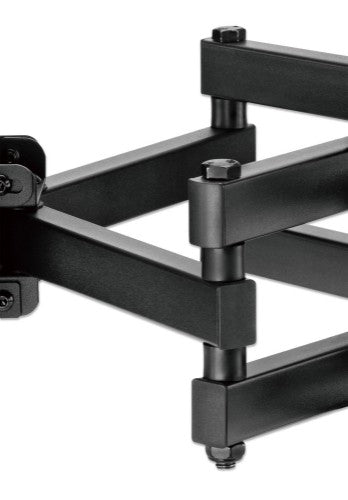

This strong, full-motion TV Wall Mount Bracket from Manhattan safely holds your TV on two articulating arms and provides optimized views with +3 to -15° tilt and +/-60° swivel adjustment. It fits flat and curved LCD, OLED or plasma TVs up to 80"" and weighing up to 40 kg (88 lbs.) with VESA compliance up to 600x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classrooms, conference rooms, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing experience front and center.

Specifications

Mounting
Mounting type	Wall
Minimum screen size	94 cm (37")
Panel mounting interface	100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400
Number of displays supported	1
Minimum VESA mount	100 x 100 mm
Maximum VESA mount	600 x 400 mm
Maximum screen size	2.03 m (80")
Maximum weight capacity	40 kg
Ergonomics
Adjustable depth	Yes
Tilt angle range	-15 - 3°
Swivel angle range	-60 - 60°
Distance to the wall (min)	6.7 cm
Distance to the wall (max)	35.5 cm
Suitable for curved screen	Yes
Tilt adjustment	Yes
Swivelling	Yes
Technical details
Number of displays supported	1
Distance to the wall (min)	6.7 cm
Distance to the wall (max)	35.5 cm
Product colour	Black
Mounting type	Wall
Quantity per pack	1 pc(s)
Post-installation leveling roll	Yes
Orientation	Landscape
Warranty period	10 year(s)
Design
Product colour	Black
Housing material	Steel
Packaging content
Mounting kit	Yes
Manual	Yes
Packaging content	Full-Motion TV Wall Mount with Post-Leveling Adjustment Attachable bubble level Installation hardware with instructions
Weight & dimensions
Width	640 mm
Height	420 mm
Weight	3.4 kg
Depth (max)	35.5 cm
Packaging data
Package width	645 mm
Package depth	62 mm
Package height	155 mm
Package type	Box
Package weight	3.92 kg
Mounting kit	Yes
Manual	Yes
Logistics data
Master (outer) case width	660 mm
Master (outer) case length	330 mm
Master (outer) case height	205 mm
Master (outer) case gross weight	24.7 kg
Products per master (outer) case	6 pc(s)
Other features
Mounting type	Wall
