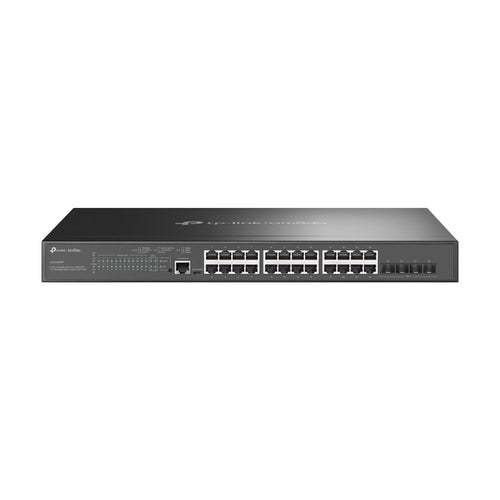

24× 10/100/1000 Mbps RJ45 PoE+, 4× 10G SFP+ Slots, RJ45/Micro-USB, 128 Gbps, 16 K MAC, 9 KB Jumbo, 440×330×44 mm
Key Features
- 4× 10 Gbps SFP+ slots
- 24× Gigabit 802.3af/at PoE+ ports
- 384 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Web-based management |
Yes |
| System event log |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| MIB support |
Yes |
| Switch layer |
L2+ |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Console port |
RJ-45/Micro-USB |
| Power connector |
AC-in jack |
| Network |
|---|
| Active link detection |
Yes |
| Networking standards |
IEEE 802.11d, IEEE 802.1s, IEEE 802.1w |
| Head-of-line (HOL) blocking |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Number of VLANs |
4000 |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Broadcast storm control |
Yes |
| 10G support |
Yes |
| Policy-based routing |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Number of static routes |
48 |
| Packet buffer memory |
12 MB |
| MAC address table |
16000 entries |
| Switching capacity |
128 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
95.23 Mpps |
| Number of VLANs |
4000 |
| Security |
|---|
| Loop protection |
Yes |
| IP-MAC-Port binding |
Yes |
| BPDU filtering/protection |
Yes |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Protocols |
|---|
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Number of fans |
2 fan(s) |
| Power |
|---|
| Power consumption (max) |
486.2 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power connector |
AC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet plus (PoE+) ports quantity |
24 |
| Total Power over Ethernet (PoE) budget |
384 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Heat dissipation |
1658.78 BTU/h |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
330 mm |
| Height |
44 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| Performance |
|---|
| Packet buffer memory |
12 MB |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Rack mounting |
Yes |
| Memory |
|---|
| Packet buffer memory |
12 MB |
| Indication |
|---|
| LED indicators |
Yes |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| Other features |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
