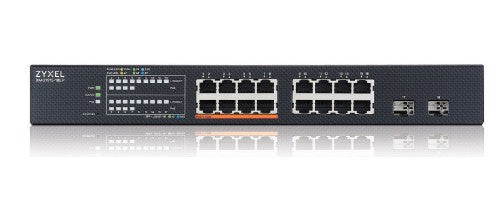

16-Port 2.5GbE, 2 SFP+, 8 x PoE++ 802.3 bt 180W Smart Switc
Description
The Zyxel XMG1915 series is a versatile family of 2.5G Multi-Gig Smart Managed switches, available in three models with and without PoE connectivity. Each Ethernet port on these models supports 2.5G speed, and they are equipped with two 10G SFP+ ports to cater to your business’s increasing need for high network speeds. The XMG1915 series is designed to support NebulaFlex, offering the most affordable Multi-Gig hybrid switch solution for the SB/SMB market. Whether you choose to set it up through the user-friendly Web GUI or the Nebula Control center for cloud-based unified management, configuration is a breeze. This series ensures that your network can keep up with the rapid growth in data demands without breaking the bank.
Specifications
| Management features |
|---|
| Multicast support |
Yes |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Network |
|---|
| IGMP snooping |
Yes |
| Networking standards |
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3x, IEEE 802.3z |
| VLAN support |
Yes |
| 10G support |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Voice VLAN |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Virtual LAN features |
MAC address-based VLAN, Port-based VLAN, Voice VLAN |
| Performance |
|---|
| Packet buffer memory |
1.5 MB |
| Mean time between failures (MTBF) |
954.032 h |
| Internal memory |
256 MB |
| Flash memory |
32 MB |
| Firmware upgradeable |
Yes |
| Technical details |
|---|
| Mean time between failures (MTBF) |
954.032 h |
| Firmware upgradeable |
Yes |
| Rack mounting |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
2 |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Data transmission |
|---|
| Jumbo frames |
12000 |
| Packet buffer memory |
1.5 MB |
| MAC address table |
16000 entries |
| Switching capacity |
120 Gbit/s |
| Jumbo frames support |
Yes |
| Forwarding rate |
89.2 Mpps |
| Security |
|---|
| SSH/SSL support |
Yes |
| Security algorithms |
SNMP, SNMPv2, SNMPv3 |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Authentication type |
RADIUS |
| DHCP features |
DHCP client, DHCP relay, DHCP snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Multicast features |
Multicast forwarding |
| Memory |
|---|
| Packet buffer memory |
1.5 MB |
| Internal memory |
256 MB |
| Flash memory |
32 MB |
| Design |
|---|
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Power |
|---|
| Power consumption (max) |
230.81 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC/PoE |
| Power over Ethernet (PoE) |
|---|
| Total Power over Ethernet (PoE) budget |
180 W |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
|---|
| Width |
330 mm |
| Depth |
230 mm |
| Height |
44 mm |
| Weight |
2.6 kg |
| Packaging data |
|---|
| Cables included |
AC |
| Packaging content |
|---|
| Cables included |
AC |
