Description
Wall Mount for TV & Monitors (Fixed), For screens 32" to 55", VESA compatability: all between 200x200mm and 400x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 40kg, Black, Bracket

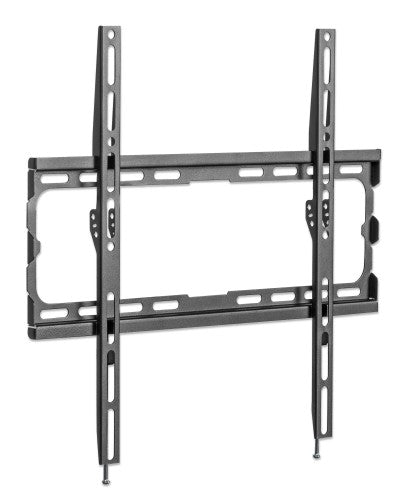

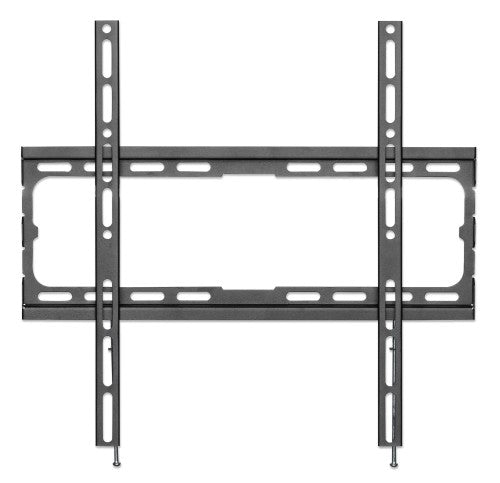

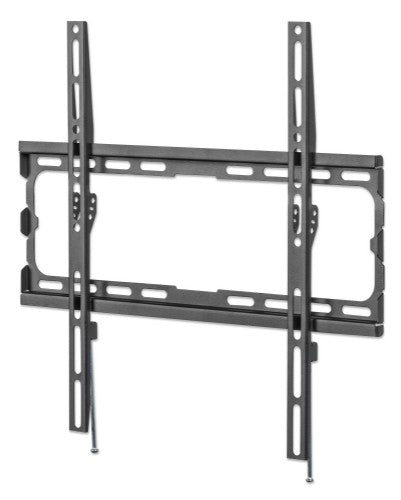

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile Fixed TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances thin, modern TV silhouettes. This ultra-slim TV bracket extends only 20 mm (0.8 in.) from the wall. Constructed of high-quality, powder-coated steel, this TV mounting bracket fits flat and curved LCD, OLED or plasma TVs up to 70"" and weighing up to 45 kg (100 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation that lets you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Key Features
- Supports one flat or curved 32"" to 70"" TV up to 45 kg (100 lbs.)

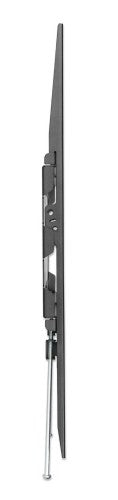

- Holds TV only 20 mm (0.8 in.) from wall for a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette
- Heavy-duty steel construction with powder coating
- Low-profile, fixed installation; ideal for home, office and commercial applications
- Meets VESA standards from 75x75 to 400x400 (e.g., 75x75, 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400)
Description
Ultra Slim TV Wall Bracket - strong mount for flush-as-possible TV installationsWhen viewing locations and TV heights are fixed at optimal positions, the Manhattan Low-Profile Fixed TV Wall Mount creates a nearly flush, close-to-the-wall installation that enhances thin, modern TV silhouettes. This ultra-slim TV bracket extends only 20 mm (0.8 in.) from the wall. Constructed of high-quality, powder-coated steel, this TV mounting bracket fits flat and curved LCD, OLED or plasma TVs up to 70"" and weighing up to 45 kg (100 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation that lets you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 81.3 cm (32") |
| Number of displays supported | 1 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Maximum screen size | 177.8 cm (70") |
| Maximum weight capacity | 45 kg |
| Technical details | |
| Number of displays supported | 1 |
| Product colour | Black |
| Mounting type | Wall |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Packaging content | Low-Profile Fixed TV Wall Mount Installation hardware with instructions |
| Weight & dimensions | |
| Width | 440 mm |
| Height | 418 mm |
| Weight | 800 g |
| Depth (max) | 2 cm |
| Packaging data | |
| Package width | 450 mm |
| Package depth | 28 mm |
| Package height | 175 mm |
| Package type | Box |
| Package weight | 1 kg |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 470 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 270 mm |
| Master (outer) case gross weight | 19.3 kg |
| Products per master (outer) case | 18 pc(s) |
| Other features | |
| Mounting type | Wall |
