Description
Wall Mount for TV & Monitors (Tiltable), For screens 32" to 55", VESA compatability: all between 200x200mm and 400x400mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 35kg, Black, Bracket

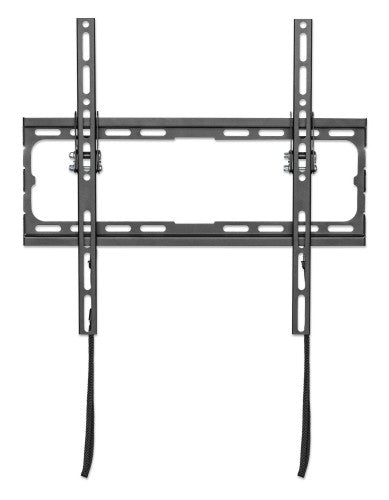

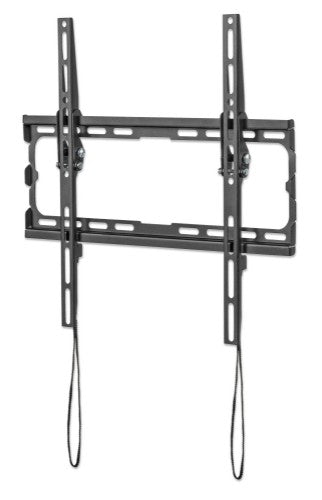

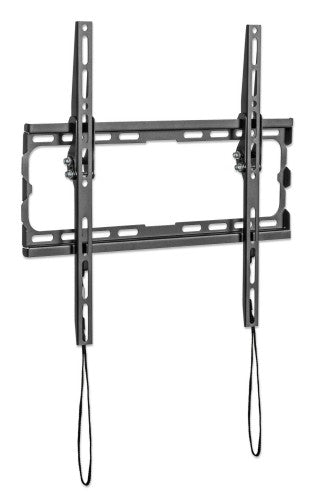

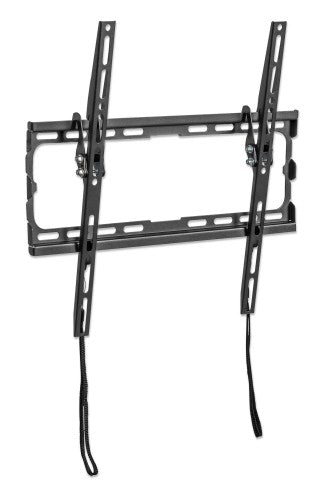

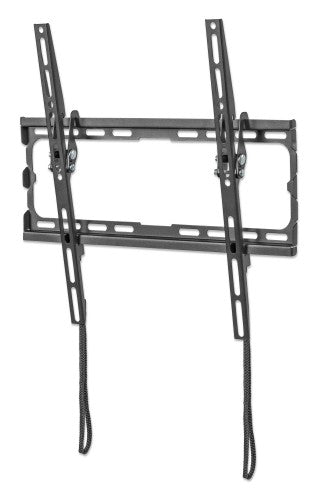

This tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless 0 to -8° tilt adjustment for optimized views. It fits flat LCD, OLED or plasma TVs up to 70"" and weighing up to 45 kg (100 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with intuitive snap-in spring locks with release cords that let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Key Features
- Securely holds one flat-panel television from 32"" to 70"" and up to 45 kg (100 lbs.)

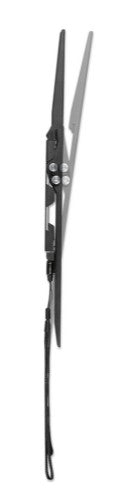

- Optimized views with 0° to -8° tilt adjustment
- Holds TV only 20 mm (0.8 in.) from wall for a nearly flush, close-to-the-wall installation that enhances the thin, modern TV silhouette
- Heavy-duty steel construction with powder coating
- Easy installation; ideal for home, office and commercial applications
- Snap-in spring locks with release cords for easy installation or removal and additional safety
- Meets VESA standards from 75x75 to 400x400 (e.g., 75x75, 100x100, 100x150, 100x200, 150x100, 150x150, 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 300x400, 400x200, 400x300, 400x400)
Description
Slim and strong Tilting TV Wall Bracket - adjustable mounting bracket puts displays in the right perspective and avoids annoying glareThis tilting TV Wall Mount from Manhattan safely holds your TV and offers a toolless 0 to -8° tilt adjustment for optimized views. It fits flat LCD, OLED or plasma TVs up to 70"" and weighing up to 45 kg (100 lbs.) with VESA compliance up to 400x400. You're all set for a confident above-the-floor installation with intuitive snap-in spring locks with release cords that let you easily and securely put the TV in place. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 81.3 cm (32") |
| Panel mounting interface | 75 x 75,100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,200 x 300,200 x 400,300 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300 |
| Number of displays supported | 1 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 400 x 400 mm |
| Maximum screen size | 177.8 cm (70") |
| Maximum weight capacity | 48 kg |
| Ergonomics | |
| Tilt angle range | -8 - 0° |
| Distance to the wall (max) | 2 cm |
| Tilt adjustment | Yes |
| Technical details | |
| Number of displays supported | 1 |
| Distance to the wall (max) | 2 cm |
| Product colour | Black |
| Mounting type | Wall |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Packaging content | Low-Profile Tilting TV Wall Mount Installation hardware with instructions |
| Weight & dimensions | |
| Width | 440 mm |
| Height | 418 mm |
| Weight | 700 g |
| Depth (max) | 2 cm |
| Packaging data | |
| Package width | 450 mm |
| Package depth | 28 mm |
| Package height | 175 mm |
| Package type | Box |
| Package weight | 1 kg |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 470 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 280 mm |
| Master (outer) case gross weight | 20.2 kg |
| Products per master (outer) case | 18 pc(s) |
| Other features | |
| Mounting type | Wall |
