Description
60-100", VESA, 100 kg, 954x625x30.5 mm
The M Universal Wallmount Fixed and Tilt series has been developed to satisfy the growing demand for extra large screen installations into the commercial and public sectors.
Capable of supporting weights of 100kg, the new super-size wall mount is designed to support larger screens, such as heavy touch screens and extra large displays in public places. The universal interface fits screens with VESA mounting patterns up to 400x600 mm and has adjustment screws that enable the screen to be leveled once mounted.
The Multibrackets M Universal Fixed HD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 100kg it can handle screens up to 100". With a wide VESA range of 400x600 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount HD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets HD mounts are the perfect solution for manyapplications.
Key Features
- Create almost any Video Wall configurations imaginable
- Clean look & easy to install
- Perfect for digital signage, educational and corporate installations

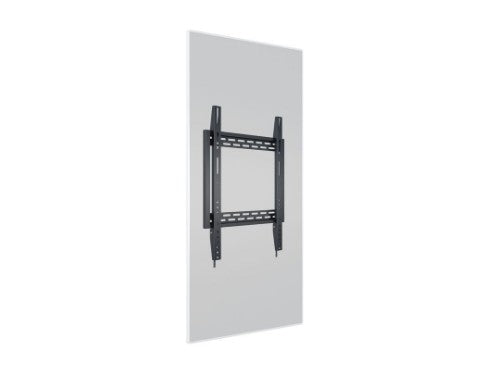

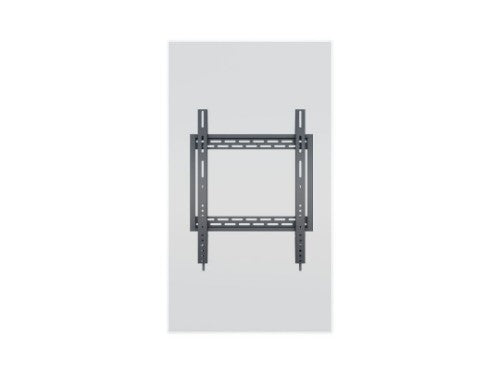

- To be used in both landscape and portait installations
- Engineered for speed of installation and usability

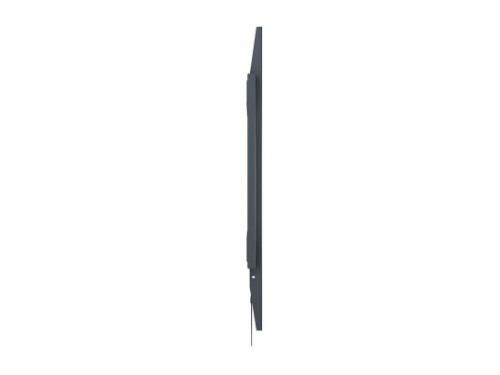

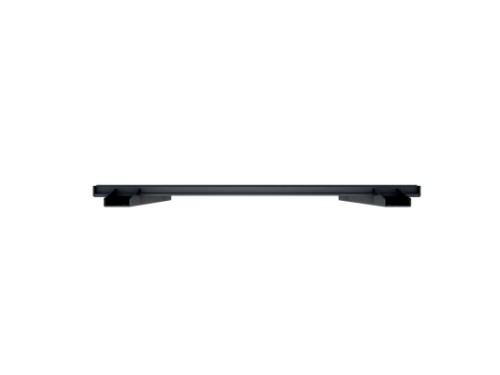

- Slim 30.5mm distance to wall
- Heavy Duty (HD) 100kg max load
- Superduty 3mm cold-rolled steel
- Arms latch securely
- Anti-theft: Lock and key (optional)
Description

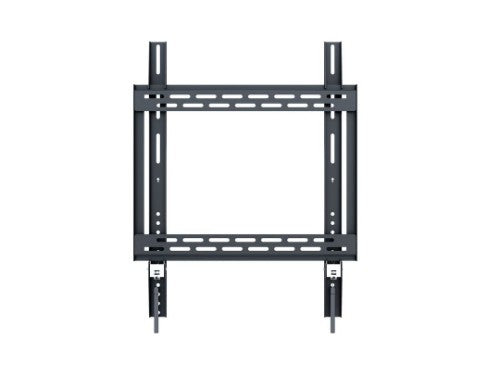

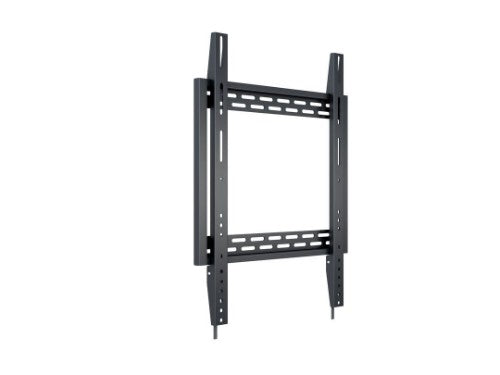

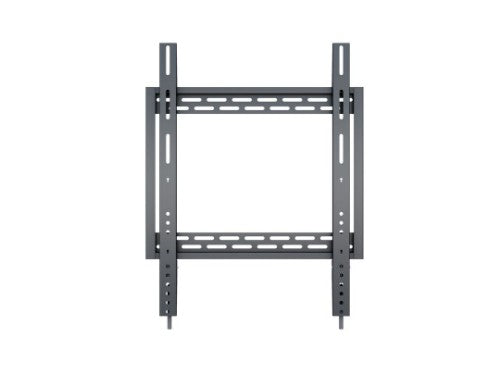

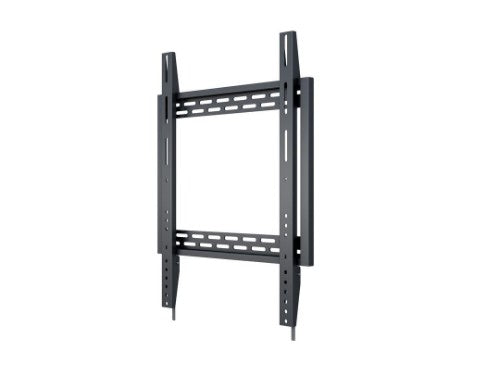

M Universal Wallmount HD Portrait 100kg 400x600 - Wall mount for LCD / LED panel - arms latch securely - 3mm cold-rolled steel - black - screen size: 60" - 100" - mounting interface: up to 400x600 mmThe M Universal Wallmount Fixed and Tilt series has been developed to satisfy the growing demand for extra large screen installations into the commercial and public sectors.
Capable of supporting weights of 100kg, the new super-size wall mount is designed to support larger screens, such as heavy touch screens and extra large displays in public places. The universal interface fits screens with VESA mounting patterns up to 400x600 mm and has adjustment screws that enable the screen to be leveled once mounted.
The Multibrackets M Universal Fixed HD is a versatile wall mount for large display installations. With its smart design the mount can be used for both landscape and portrait installations. With a maxweight capacity of 100kg it can handle screens up to 100". With a wide VESA range of 400x600 it can also handle most VESA specifications large screens are using.
The Multibrackets M Universal Mount HD series of fixed, tilt and pull-out mounts from Multibrackets are engineered to solve tough installation problems such as leveling and stud location. Installerinspired features make installation and maintenance safe and easy. This series of mounts makes it easy to take control of your installation. Universal and with low-profile mounts they are engineeredfor speed of installation and usability. With a variety of products ranging from a single TV to a video wall matrix for digital signage, Multibrackets HD mounts are the perfect solution for manyapplications.
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 152.4 cm (60") |
| Panel mounting interface | 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,400 x 600 |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 400 x 600 mm |
| Maximum screen size | 2.54 m (100") |
| Maximum weight capacity | 100 kg |
| Ergonomics | |
| Distance to the wall (max) | 4.5 cm |
| Technical details | |
| Number of displays supported | 1 |
| Distance to the wall (max) | 4.5 cm |
| Product colour | Black |
| Mounting type | Wall |
| Plastic packaging weight | 22 g |
| Metal packaging weight | 2.98 kg |
| Paper/cardboard packaging weight | 1 kg |
| Design | |
| Accepts padlock | Yes |
| Product colour | Black |
| Anti-theft function | Yes |
| Housing material | Steel |
| Packaging content | |
| Mounting kit | Yes |
| Manual | Yes |
| Weight & dimensions | |
| Width | 506 mm |
| Height | 630 mm |
| Weight | 4 kg |
| Depth (max) | 3.2 cm |
| Packaging data | |
| Package width | 406 mm |
| Package depth | 665 mm |
| Package height | 48 mm |
| Package weight | 4 kg |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Shipping (inner) case width | 42 cm |
| Shipping (inner) case length | 68 cm |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case gross weight | 17 kg |
| Products per shipping (inner) case | 4 pc(s) |
| Other features | |
| Mounting type | Wall |
