Description
Multibrackets M VESA Gas Lift Arm Basic - Mounting kit ( desk clamp mount, tilt articulating arm ) for LCD display - aluminum - black - screen size: 15" - 32"
The M VESA Gas Lift Arm is made out of a durable aluminum construction and uses a gas driven suspension technique. This makes the screen "float" and it can then be moved with near zero effort. Sleek and streamlined, the M VESA Gas Lift Arm frees up space and allows positioning of your display for greater productivity. The unique counterbalance gas technology provides smooth adjustment in any direction. Easy move the screen from landscape to portrait position or move the screen close to the desk, high up, matching almost any wanted working position imaginable.
Supports VESA standards 75x75 and 100x100 and holds screens weighing from minimum 2kg and up to maximum 10kg. This interval is important to keep due to the gas driven piston that keeps your screen floating in the air.
The snap on head gives a fast assembly and disassembly of the LCD perfect for any IT department who wants to minimize downtime.
The M VESA Gas Lift Arm Basic holds to your standard workdesk (max 50mm), or assemble it using a workdesk thru hole technique.
Description
A double jointed gas suspended monitor arm, designed by Multibrackets to optimize your productivity and help reducing strain on neck, back and eyes.The M VESA Gas Lift Arm is made out of a durable aluminum construction and uses a gas driven suspension technique. This makes the screen "float" and it can then be moved with near zero effort. Sleek and streamlined, the M VESA Gas Lift Arm frees up space and allows positioning of your display for greater productivity. The unique counterbalance gas technology provides smooth adjustment in any direction. Easy move the screen from landscape to portrait position or move the screen close to the desk, high up, matching almost any wanted working position imaginable.
Supports VESA standards 75x75 and 100x100 and holds screens weighing from minimum 2kg and up to maximum 10kg. This interval is important to keep due to the gas driven piston that keeps your screen floating in the air.
The snap on head gives a fast assembly and disassembly of the LCD perfect for any IT department who wants to minimize downtime.
The M VESA Gas Lift Arm Basic holds to your standard workdesk (max 50mm), or assemble it using a workdesk thru hole technique.
Specifications
| Mounting | |
|---|---|
| Minimum screen size | 38.1 cm (15") |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Number of displays supported | 1 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Bolt-through |
| Maximum weight capacity | 10 kg |
| Maximum screen size | 81.3 cm (32") |
| Ergonomics | |

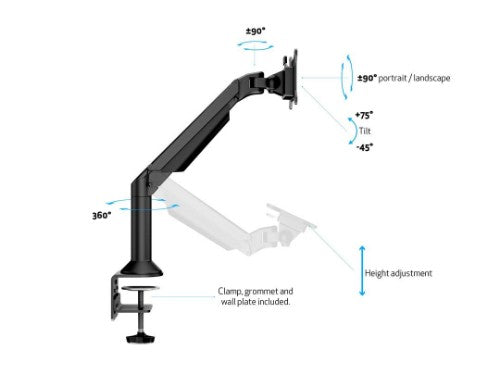

| Height adjustment | Yes |
| Turn angle | 180° |

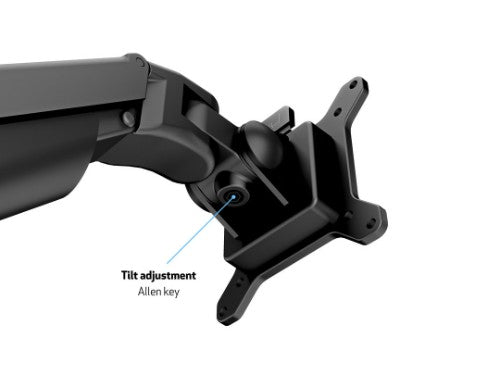

| Tilt angle range | -45 - 75° |
| Angle of rotation | 90° |
| Technical details | |
| Mounting type | Desk |
| Product colour | Black |
| Design | |
| Easy to install | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| Weight & dimensions | |
| Package width | 195 mm |
| Package depth | 475 mm |
| Package height | 140 mm |
| Weight | 2.4 kg |
| Package type | Box |
| Package weight | 4.1 kg |
| Packaging data | |
| Package type | Box |
| Package weight | 4.1 kg |
| Logistics data | |
| Shipping (inner) case width | 21 cm |
| Shipping (inner) case length | 49 cm |
| Shipping (inner) case height | 44 cm |
| Shipping (inner) case gross weight | 12.8 kg |
| Products per shipping (inner) case | 3 pc(s) |
| Other features | |
| Mounting type | Desk |
| Mounting | Clamp/Bolt-through |
