Description

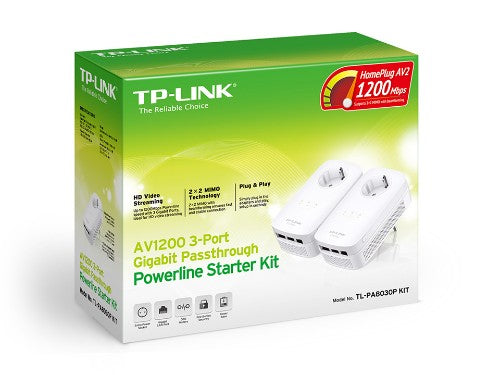

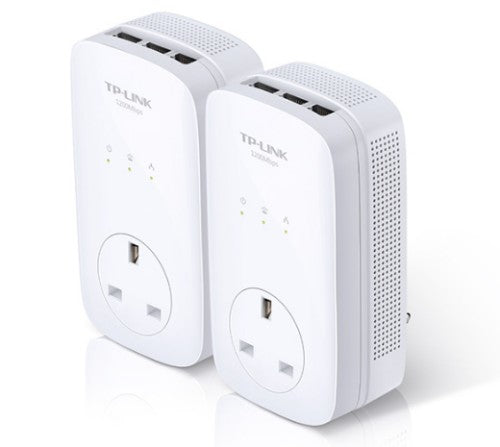

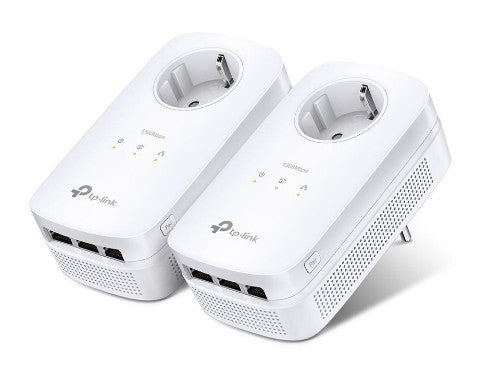

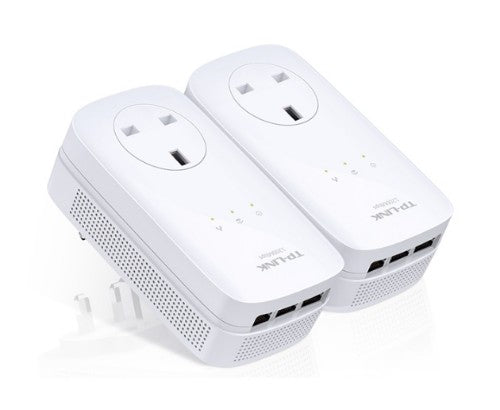

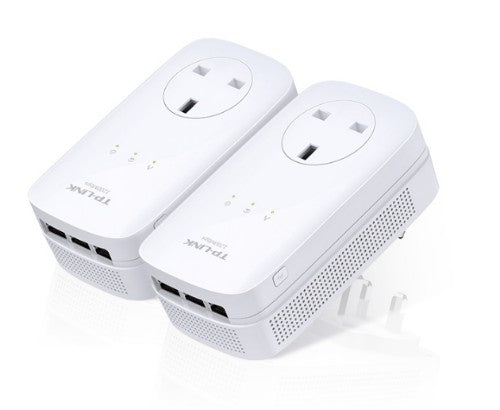

AV1200 3-Port Gigabit Passthrough Powerline Starter Kit
1200Mbps! Perfect for Bandwidth Demanding Activities
With its advanced HomePlug AV2 technology, TL-PA8030P KIT is introducing a powerline generation for even faster data transmission in the home network. TL-PA8030P KIT supports 2x2 MIMO* with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1200Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.
*The Multiple Input Multiple Output functionality within HomePlug AV2 significantly improves data transfer rates especially during peak periods. It uses any two electrical wire lines within a 3 wire network to boost performance.
Description
Using your home’s existing electrical circuit, TP-LINK’s TL-PA8030P KIT AV1200 3-Port Gigabit Passthrough Powerline Starter Kit turns any electrical socket into an Internet connection. Simply plug into your wall socket and you are ready to enjoy HD streaming and gaming, no configuration required. You also won't lose a socket with its integrated pass through socket included! With speeds of up to 1200Mbps for smooth Ultra HD streaming, online gaming or faster downloads, TL-PA8030P KIT is a perfect home entertainment companion.1200Mbps! Perfect for Bandwidth Demanding Activities
With its advanced HomePlug AV2 technology, TL-PA8030P KIT is introducing a powerline generation for even faster data transmission in the home network. TL-PA8030P KIT supports 2x2 MIMO* with beamforming, so users benefit from ultra-fast data transfer speeds of up to 1200Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.
*The Multiple Input Multiple Output functionality within HomePlug AV2 significantly improves data transfer rates especially during peak periods. It uses any two electrical wire lines within a 3 wire network to boost performance.
Specifications
| Performance | |
|---|---|
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 3 |
| Wi-Fi | No |
| Maximum data transfer rate | 1200 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Plug and Play | Yes |
| Technical details | |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 3 |
| Wi-Fi | No |
| Maximum data transfer rate | 1200 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Built-in power socket | Yes |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| LED indicators | Yes |
| Product colour | White |
| Plug and Play | Yes |
| Compliance certificates | RoHS |
| Power | |
| Power consumption (typical) | 6 W |
| Power consumption (standby) | 0.5 W |
| Current | 16 A |
| Design | |
| LED indicators | Yes |
| Product colour | White |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 72 mm |
| Depth | 42 mm |
| Height | 131 mm |
| Certificates | |
| Compliance certificates | RoHS |
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
