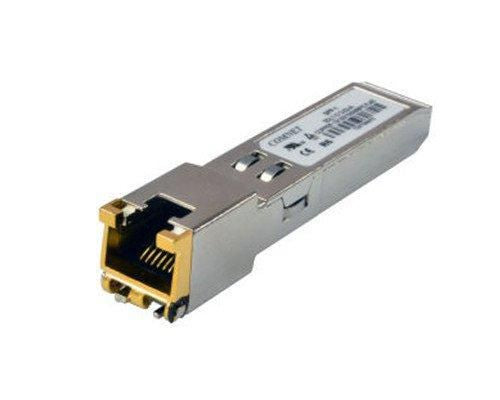

RJ45, 1000 Mbps, Copper, IEEE 802.3
Key Features
- Interchangeable SFP for fiber type, distance and connector
- IEEE 802.3 compliant
- Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA)
- Operating temperature: -40 ̊ C to +75 ̊ C
- Storage temperature: -40 ̊ C to +85 ̊ C
- No in-field adjustments required
Description
The ComNet selection of MSA Compliant Small Form-Factor Pluggable (SFP) modules allows for an optical or electrical interface when using a ComNet managed switch, unmanaged switch or media converter. These interchangeable SFP modules are available for use with copper media, multimode optical fiber, or single mode optical fiber. The optical fiber SFP modules are available in Fast Ethernet one and two fiber versions and Gigabit Ethernet one and two fiber versions. They also are available with LC or SC optical connectors. The ComNet SFP modules offer different wavelengths and optical power budget to allow distances from 300 meters to 120 kilometers. These SFP modules are industrially rated to perform in the most difficult operating environments. A ComNet SFP interface is required for use with all ComNet SFP configurable products to qualify for the ComNet Lifetime Warranty.
Specifications
| Performance |
|---|
| SFP transceiver type |
Copper |
| Ethernet LAN |
Yes |
| Networking standards |
IEEE 802.3 |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
RJ-45 |
| Single-mode fiber (SMF) supported |
No |
| Multi-mode fiber (MMF) supported |
No |
| Ethernet interface type |
Gigabit Ethernet |
| Product colour |
Nickel |
| Compatible products |
CNGE4US, CNGE8US & CNGE2FE4SMS |
| Features |
|---|
| Product colour |
Nickel |
| Compatible products |
CNGE4US, CNGE8US & CNGE2FE4SMS |
| Certification |
MSA |
| Certificates |
|---|
| Certification |
MSA |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 75 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Network |
|---|
| SFP transceiver type |
Copper |
| Networking standards |
IEEE 802.3 |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
RJ-45 |
| Ethernet interface type |
Gigabit Ethernet |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Compatible products |
CNGE4US, CNGE8US & CNGE2FE4SMS |
| Ethernet LAN |
Yes |
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
