Description
Hub, 0.96" display, PoE, RJ-45
Key Features
- (1) video and (1) audio port for connecting a lens and audio module
- Supports AI Theta Standard and Professional Lenses, with (1) included cable for connecting a lens
- Advanced AI: Detect people, read license plates, and more
- 0.96" color display for device status and configuration
- Connect and power using PoE
- Supports optional AI Theta Audio module for two-way audio
Description
Remote processing hub for any AI Theta deployment, compatible with any AI Theta Lens and AI Theta Audio.Specifications
| Features | |
|---|---|
| Housing material | Aluminium |
| Brand compatibility | Ubiquiti Networks |
| Compatibility | AI Theta Lens, AI Theta Audio |
| Type | Hub |
| Placement supported | Indoor |
| Product colour | White |
| Certification | FCC, IC, CE |
| Video compression formats | H.264 |
| Built-in display | Yes |
| Display type | LCM |
| Display diagonal | 2.44 cm (0.96") |
| Reset button | Yes |
| Built-in processor | Yes |
| Processor model | Cortex-A53 |

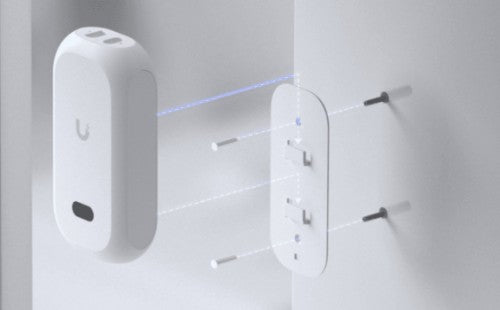

| Wall mountable | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Power | |
| Output voltage | 5 V |
| Output current | 1 A |
| Input voltage | 37 - 57 V |
| Power consumption (max) | 12.5 W |
| Power source type | PoE |
| Technical details | |
| Compatibility | AI Theta Lens, AI Theta Audio |
| Type | Hub |
| Placement supported | Indoor |
| Weight & dimensions | |
| Width | 70 mm |
| Weight | 330 g |
| Height | 38 mm |
| Depth | 140 mm |
| Colour | |
| Product colour | White |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Mounting kit | Yes |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 40 °C |
| Certificates | |
| Certification | FCC, IC, CE |
