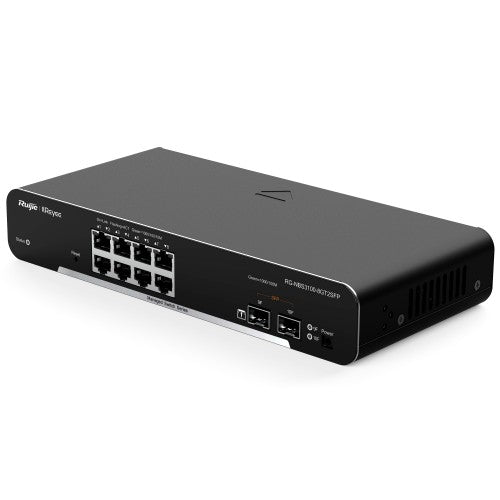

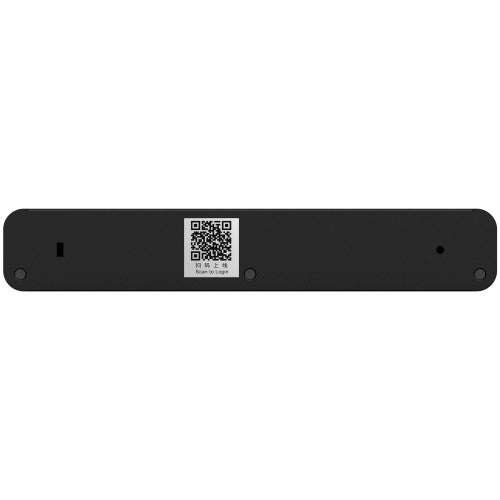

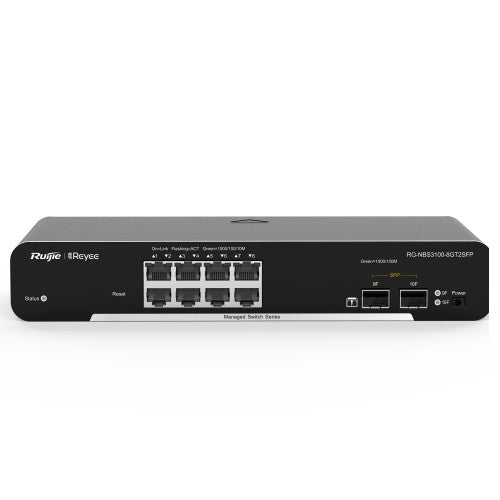

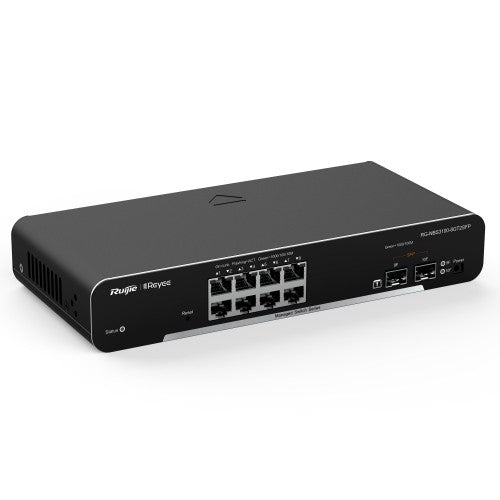

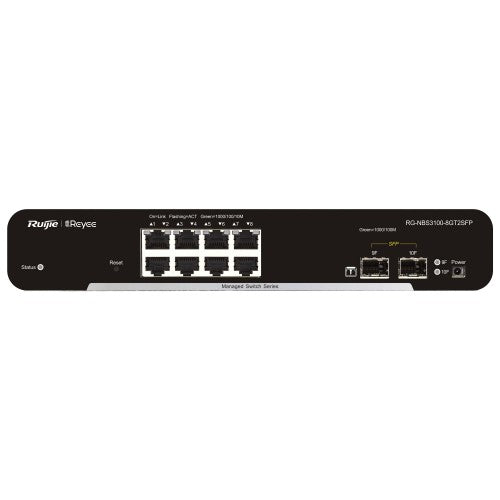

Ruijie Networks RG-NBS3100-8GT2SFP network switch Managed L2 Gigabit Ethernet (10/100/1000) Black

10-Port Gigabit Layer 2 Cloud Managed Non-PoE Switch, 8 Gigabit Ports, 2 SFP, 20 Gbps, Black, 1.2 kg

Key Features

• 10-Port gigabit Layer 2 managed non-PoE switch, 2 SFP uplink
• Enterprise-class Quality Ensures High Performance
• IP Camera Recognition, Unique Value for CCTV Network
• Multiple Security Policies Protect Your Network
• Lifetime management on Ruijie Cloud at anytime anywhere

Description

Enterprise-class Quality Ensures High Performance

Multiple Security Policies Protect Your Network

Cloud, Make Your Business Easy

- SON, zero touch provisioning to Cloud
- Monitor switch statistics at anytime anywhere
- Configure VLANs on Ruijie Cloud APP
- Easy maintainance, save onsite time and cost

Specifications

Management features
Switch type	Managed
Web-based management	Yes
System event log	Yes
Multicast support	Yes
Switch layer	L2
Ports & interfaces
SFP module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
VLAN support	Yes
Number of VLANs	4094
Link aggregation	Yes
Flow control support	Yes
10G support	No
Virtual LAN features	Voice VLAN
IGMP snooping	Yes
Data transmission
Jumbo frames	9216
MAC address table	8000 entries
Switching capacity	20 Gbit/s
Jumbo frames support	Yes
Forwarding rate	14.88 Mpps
Number of VLANs	4094
Security
Loop protection	Yes
Security algorithms	HTTPS
IGMP snooping	Yes
Access Control List (ACL)	Yes
Multicast features
Multicast support	Yes
Design
Product colour	Black
Performance
Mean time between failures (MTBF)	200000 h
Fanless	Yes
Power
AC input voltage	100 - 240 V
Input current	1 A
Power source	AC
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Other features
Warranty period	5 year(s)
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Operating altitude	-500 - 5000 m
Virtual LAN features
VLAN support	Yes
Number of VLANs	4094
Virtual LAN features	Voice VLAN
Weight & dimensions
Width	260 mm
Depth	120 mm
Height	43.6 mm
Weight	1.2 kg
Packaging data
Package weight	2 kg
Sustainability
Sustainability compliance	Yes
Technical details
Product colour	Black
Mean time between failures (MTBF)	200000 h
Sustainability compliance	Yes
Warranty period	5 year(s)
Compliance certificates	CE, RoHS
Certificates
Compliance certificates	CE, RoHS
