Description
PoE, 1 x GbE RJ45 port, 2 x RP-SMA, 2.4 GHz 300 Mbps, 5 GHz 866.7 Mbps, IPX6, UV-stabilized polycarbonate, white
Key Features
- 115 m² (1,250 ft²) coverage with internal antenna
- 200+ connected devices
- WiFi 5 (2x2 MIMO)
- Powered using PoE
- Compact form factor

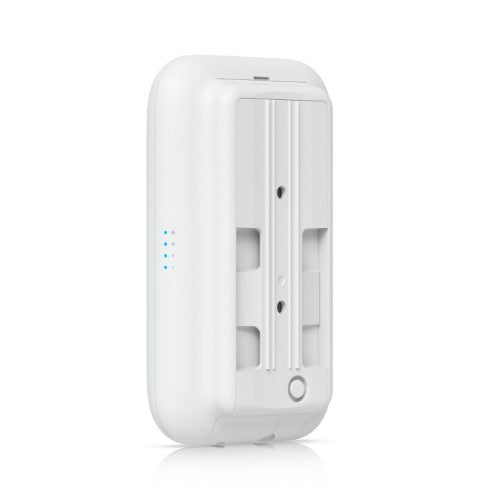

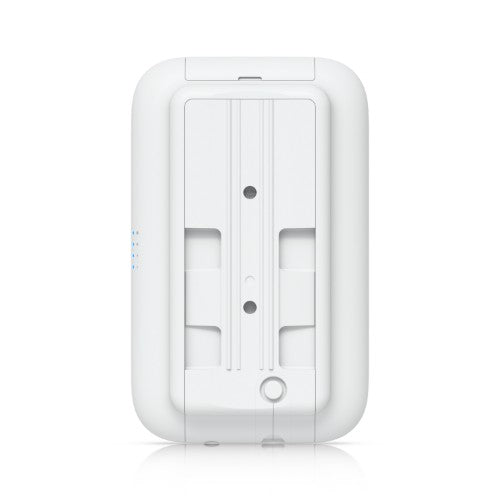

- Versatile wall and pole mounting

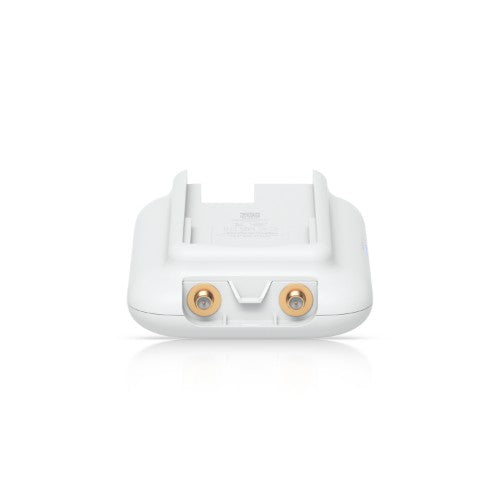

- (2) RP-SMA connectors for optional external antennas
Description
Incredibly compact indoor/outdoor PoE access point with long-range external antenna support and versatile mounting options.Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 866.7 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Web-based management | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 866.7 Mbit/s |
| MIMO | Yes |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Features | |
| 6 GHz | No |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 866.7 Mbit/s |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 866.7 Mbit/s |
| Security | |
| Security algorithms | AES, TKIP, WPA, WPA-Enterprise, WPA-PSK, WPA2 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 8 W |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 44- 57 V |
| Design | |
| International Protection (IP) code | IPX6 |
| Housing material | Polycarbonate (PC) |
| Placement | Ceiling, Pole, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power, Signal strength |
| Antenna | |
| Number of connectors | 2 |
| Antenna type | Internal |
| Antennas quantity | 1 |
| Antenna gain level (max) | 6 dBi |
| Antenna connector type | RP-SMA |
| Technical details | |
| Reset button | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Indication | |
| LED indicators | Power, Signal strength |
| Weight & dimensions | |
| Width | 84 mm |
| Depth | 34 mm |
| Weight | 173 g |
| Height | 137 mm |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
