Description
Intel Core i5-13420H, 8C (4P + 4E)/12T, P-core 2.1/4.6GHz, E-core 1.5/3.4GHz, 12MB, 1x 16GB SO-DIMM DDR4-3200, 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0, Intel UHD Graphics, Intel Wi-Fi 6 AX201 802.11ax 2x2 + BT5.2, Windows 11 Pro
Key Features
- Intel Core i5-13420H, 8C (4P + 4E)/12T, P-core 2.1/4.6GHz, E-core 1.5/3.4GHz, 12MB
- 1x 16GB SO-DIMM DDR4-3200
- 512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal 2.0
- Intel UHD Graphics
- Windows 11 Pro
Description
Specifications
| Processor | |
|---|---|
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor cache type | Smart Cache |
| Processor cache | 12 MB |
| Processor model | i5-13420H |
| Processor manufacturer | Intel |
| Processor boost frequency | 4.6 GHz |
| Processor threads | 12 |
| Processor cores | 8 |
| Processor family | Intel® Core™ i5 |
| Performance cores | 4 |
| Efficient cores | 4 |
| Processor base power | 45 W |
| Maximum turbo power | 95 W |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Memory | |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Storage | |
| Storage media | SSD |
| Optical drive type | No |
| SSD interface | PCI Express 4.0 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| Card reader integrated | No |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |

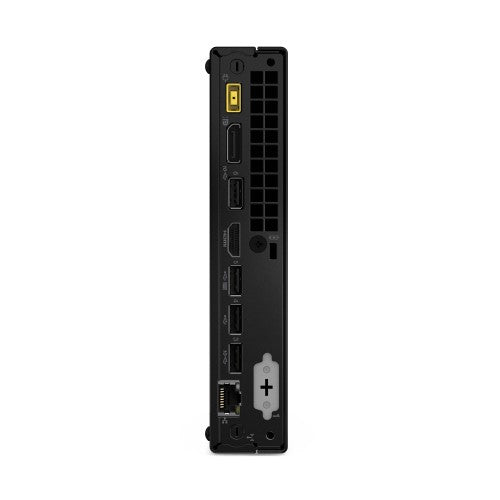

| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI version | 2.1 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| Audio system | High Definition Audio |
| Cable lock slot | Yes |
| Motherboard chipset | Intel SoC |
| Sustainability certificates | TCO, ENERGY STAR, EPEAT Gold, ErP |
| Compliance certificates | RoHS |
| Design | |
| Volume | 1 L |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Colour name | Black |
| Performance | |
| Audio chip | Realtek ALC256 |
| Number of speakers | 1 |
| Password protection | Yes |
| Password protection type | BIOS, Supervisor, HDD |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Audio system | High Definition Audio |
| Built-in speaker(s) | Yes |
| Motherboard chipset | Intel SoC |
| Software | |
| Operating system architecture | 64-bit |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply input frequency | 50 - 60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 65 W |
| Operational conditions | |
| Operating altitude | -15.2 - 3048 m |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Non-operating altitude | -15.2 - 10668 m |
| Certificates | |
| Certification | ENERGY STAR 8.0 EPEAT Gold ErP Lot 3 and Lot 7 TCO Certified 9.0 RoHS compliant |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability certificates | TCO, ENERGY STAR, EPEAT Gold, ErP |
| Weight & dimensions | |
| Volume | 1 L |
| Package width | 140 mm |
| Package depth | 262 mm |
| Package height | 500 mm |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 36.5 mm |
| Package weight | 5.18 kg |
| Weight | 1.11 kg |
| Packaging data | |
| Package width | 140 mm |
| Package depth | 262 mm |
| Package height | 500 mm |
| Package weight | 5.18 kg |
| Packaging content | |
| Mouse included | Yes |
| Display included | No |
| Keyboard included | Yes |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
| Display | |
| Display included | No |
| Other features | |
| Number of speakers | 1 |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| Built-in speaker(s) | Yes |
