Description

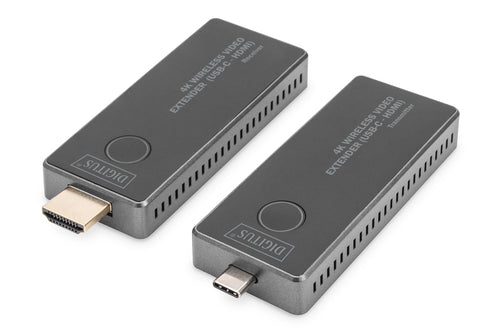

4K Wireless AV Extender Set, 30 m USB-C - HDMI, 4K/30 Hz
- Wireless HDMI signal transmission up to 30 m (unrestricted view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to 4K UHD (4K/30Hz)
- Power supply via USB-C connection
- AES 128 bit encryption
- WPA2 protocol
- HDMI 2.0
- DP 1.2
- HDCP 2.2/1.3
Experience cable-free audio and video transmission in razor-sharp UHD 4K/30Hz with the 4K Wireless Video Extender. The set enables easy setup without drivers or software thanks to Plug & Play. With a range of up to 30 meters in clear view, it guarantees reliable transmission. AES 128-bit encryption and the WPA2 protocol ensure secure data transmission. Compatible with HDMI 2.0, DP 1.2 and HDCP 2.2/1.3. Ideal e.g. for home cinemas, conference rooms and training facilities. Discover the freedom of wireless entertainment!
Key Features
- Wireless HDMI signal transmission up to 30 m (unrestricted view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to 4K UHD (4096x2160p, 30Hz)
- Simple operation and handling thanks to Plug & Play - plug in and go, no drivers or software required
- Power supply via USB-C connection
- AES 128 bit encryption
- Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
- HDMI version: 2.0 (RX)
- DP version: 1.2 (TX)
- HDCP version: 2.2 (RX) /1.3 (TX)
- Radio standard: IEEE 802.11.b/g/n/ac
- Frequency band: Dual band, 2.4/5G
- Transmitter connections: 1x USB-C plug, 1x USB-C socket
- Receiver connections: 1x HDMI plug, 1x USB-C socket
- Connection button with LED status indicator
- Power supply: Transmitter - 5V/1A, Receiver - 5V/0.6A
- Compression: H.265
- Latency: approx. 100 ms
- Audio format: PCM
- Audio channel: 2 channels
- Supports signal sources with USB-C connection (with DP-Alt Mode or Thunderbolt) with Windows, macOS, iOS, iPadOS, Android
- ABS housing
- Power consumption: Transmitter approx. 3W, receiver approx. 4W
- Operating temperature: 0-40°C
- Dimensions (1 unit): L 8.1 x W 3.4 x H 1.3 cm
- Weight: Transmitter 30 g, receiver 28 g
- Color: Black/Grey
- Manufacturer's instructions:
- The transmission distance with limited visibility cannot be determined across the board and depends on the conditions on site
- Walls, glass, etc. shorten the signal coverage or cause signal loss
- Not all USB-C ports support all functions of the USB Type-C standard. Make sure that the USB-C port on your device supports DisplayPort Alternate Mode (DP-Alt Mode) or Thunderbolt
Description
Transmits video and audio signals wirelessly in UHD 4K/30Hz over a distance of up to 30 m with unrestricted visibility- Wireless HDMI signal transmission up to 30 m (unrestricted view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to 4K UHD (4K/30Hz)
- Power supply via USB-C connection
- AES 128 bit encryption
- WPA2 protocol
- HDMI 2.0
- DP 1.2
- HDCP 2.2/1.3
Experience cable-free audio and video transmission in razor-sharp UHD 4K/30Hz with the 4K Wireless Video Extender. The set enables easy setup without drivers or software thanks to Plug & Play. With a range of up to 30 meters in clear view, it guarantees reliable transmission. AES 128-bit encryption and the WPA2 protocol ensure secure data transmission. Compatible with HDMI 2.0, DP 1.2 and HDCP 2.2/1.3. Ideal e.g. for home cinemas, conference rooms and training facilities. Discover the freedom of wireless entertainment!
Specifications
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Technical details | |
| Type | AV transmitter & receiver |
