Description
4K Wireless HDMI Extender/Splitter Set, 1x4 150 m, 1x TX, 1x RX
- Wireless HDMI signal transmission up to 150 m (unobstructed view)
- Point-to-multipoint connection - 1x transmitter (source) + up to 4x receivers (output device)
- Additional receiver units available separately: DS-55329
- Supports wireless AV signal transmission with resolutions up to 4K UHD (2160p/30Hz)
- Easy operation and handling thanks to Plug & Play - Just plug in and get started, no driver or software required
- KVM functionality for connection to mouse and keyboard
- Touch Screen Back Control - Supports touch screen panels (via USB connection on the receiver)
- Power supply via USB-C connection + power adapter (included)
- AES 128 bit encryption
- WPA2 protocol
- HDMI 2.0 / HDCP 2.2

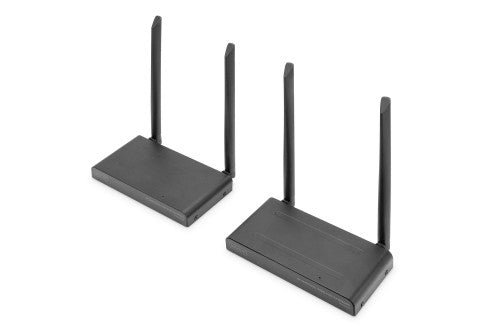

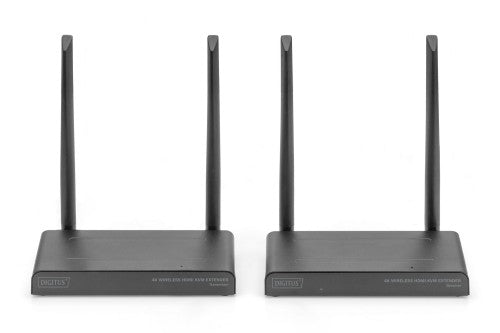

The 4K Wireless HDMI® KVM Extender Set transfers your HDMI® video and audio signals in UHD 4K/30 Hz without a cable over a distance of up to 150 m (unobstructed view). This consists of a transmitter and receiver unit. Thanks to KVM functionality, the mouse/keyboard can be connected to the receiver unit, which makes it possible to control the signal source directly on the output device. Using the HDMI loop-out to the transmitter unit, a local monitor can be connected in order to control the output to the receiver. The Extender Set can be extended on up to 4 screens (output devices) - additional receiver available separately: DS-55329.
Key Features
- Wireless HDMI signal transmission up to 150 m (unobstructed view)
- Point-to-multipoint connection - 1x transmitter (source) + up to 4x receivers (output device)
- Additional receiver units available separately: DS-55329
- Supports wireless AV signal transmission with resolutions up to 4K UHD (2160p/30Hz)
- Easy operation and handling thanks to Plug & Play - Just plug in and get started, no driver or software required
- Touch Screen Back Control - Supports touch panels (via USB connection on the receiver)
- Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise), AES 128 bit encryption
- Transmission distance 1:1 connection: up to 150 m (unobstructed view)
- Transmission distance 1:2 connection: up to 100 m (unobstructed view)
- Transmission distance 1:3 connection: up to 30 m (unobstructed view)
- Transmission distance 1:4 connection: up to 15 m (unobstructed view)
- HDMI version: 2.0
- HDCP version: 2.2
- Wireless channel: IEEE 802.11.b/g/n/ac
- Frequency band: Dual Band, 2,4/5G
- Compression: H.265
- Latency: approx. 100 ms
- Audio format: PCM
- Audio channel: 2 channels

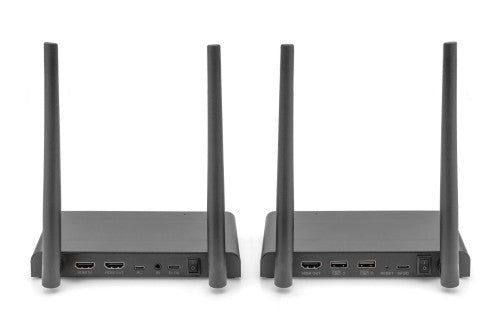

- Transmitter unit connections:
- 1x HDMI input (signal source, 4K/60Hz max.)
- 1x HDMI loop-out/output (output device, 4K/60Hz max.)
- 1x Micro USB input - Data connection of source for use of KVM function
- 1x IR output - Connection of IR transmitter to control the signal source
- 1x USB-C input - connection power adapter (5V/2A)
- 1x On/Off switch
- Receiver unit connections:
- 1x HDMI output (output device, 4K/60Hz max.)
- 2x USB-A input (connection of mouse/keyboard/touch panel)
- 1x Reset button
- Housing: Metal
- Color: black
- Dimensions (1 unit): W 15.4 x D 7.75 x H 2.1 cm
- Weight (1 unit): 330 g
- Power consumption (1 unit): approx. 5W
- Operating temperature: 0-40 °C
- The transmission distance with a restricted visual range cannot be determined generally and depends on the specific circumstances where installed
- Walls, glass etc. shorten the signal range or cause signal losses
Description
Wirelessly transmits HDMI video and audio signals in UHD 4K/30Hz over a distance of up to 150 m with an unobstructed view and offers KVM functionality- Wireless HDMI signal transmission up to 150 m (unobstructed view)
- Point-to-multipoint connection - 1x transmitter (source) + up to 4x receivers (output device)
- Additional receiver units available separately: DS-55329
- Supports wireless AV signal transmission with resolutions up to 4K UHD (2160p/30Hz)
- Easy operation and handling thanks to Plug & Play - Just plug in and get started, no driver or software required
- KVM functionality for connection to mouse and keyboard
- Touch Screen Back Control - Supports touch screen panels (via USB connection on the receiver)
- Power supply via USB-C connection + power adapter (included)
- AES 128 bit encryption
- WPA2 protocol
- HDMI 2.0 / HDCP 2.2
The 4K Wireless HDMI® KVM Extender Set transfers your HDMI® video and audio signals in UHD 4K/30 Hz without a cable over a distance of up to 150 m (unobstructed view). This consists of a transmitter and receiver unit. Thanks to KVM functionality, the mouse/keyboard can be connected to the receiver unit, which makes it possible to control the signal source directly on the output device. Using the HDMI loop-out to the transmitter unit, a local monitor can be connected in order to control the output to the receiver. The Extender Set can be extended on up to 4 screens (output devices) - additional receiver available separately: DS-55329.
Specifications
| Features | |
|---|---|
| Material | Metal |
| HDCP | Yes |
| Audio output channels | 2.0 channels |
| Plug and Play | Yes |
| Maximum refresh rate | 30 Hz |
| On/off switch | Yes |
| Video compression formats | H.265 |
| Security algorithms | WPA2, 128-bit AES |
| Audio formats supported | PCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 150 m |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 3840 x 2160, 1920 x 1080 (HD 1080) |
| LED indicators | Status |
| Product colour | Black |
| HDCP version | 2.2 |
| Technical details | |
| Material | Metal |
| HDCP | Yes |
| Audio output channels | 2.0 channels |
| Plug and Play | Yes |
| Maximum refresh rate | 30 Hz |
| On/off switch | Yes |
| Wi-Fi | Yes |
| Video compression formats | H.265 |
| Security algorithms | WPA2, 128-bit AES |
| Audio formats supported | PCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 150 m |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 3840 x 2160, 1920 x 1080 (HD 1080) |
| Product colour | Black |
| Connectivity technology | Wired & Wireless |
| Quantity per pack | 2 pc(s) |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| USB ports quantity | 5 |
| Wi-Fi | Yes |
| USB connector type | Micro-USB A, USB Type-A, USB Type-C |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| Connectivity technology | Wired & Wireless |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Power | |
| Power consumption (typical) | 5 W |
| Indication | |
| LED indicators | Status |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Width | 154 mm |
| Package depth | 233 mm |
| Height | 21 mm |
| Depth | 77.5 mm |
| Package width | 250 mm |
| Package height | 57 mm |
| Weight | 330 g |
| Package weight | 1.16 kg |
| Packaging data | |
| Package depth | 233 mm |
| Package width | 250 mm |
| Package height | 57 mm |
| Package weight | 1.16 kg |
| Quantity per pack | 2 pc(s) |
| Packaging content | |
| Cables included | HDMI, IR, USB |
| Quick start guide | Yes |
| AC adapter included | Yes |
