Description

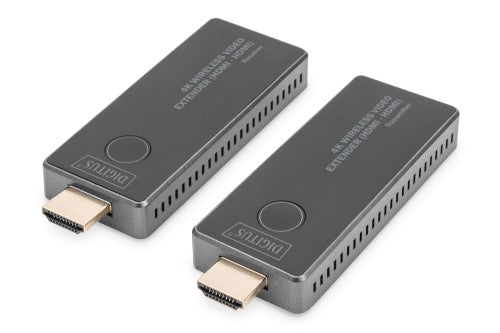

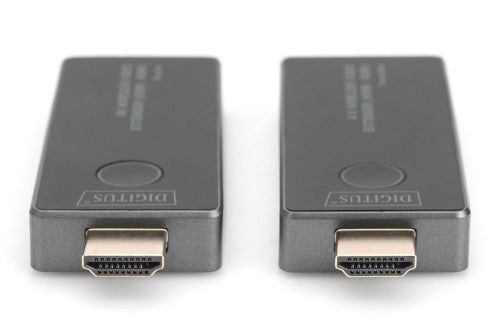

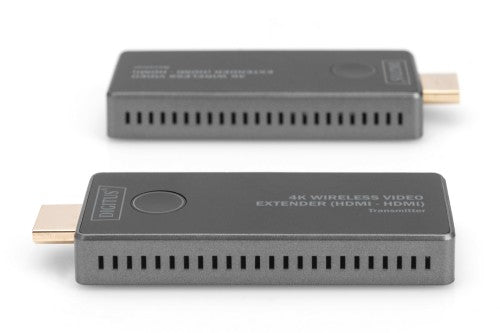

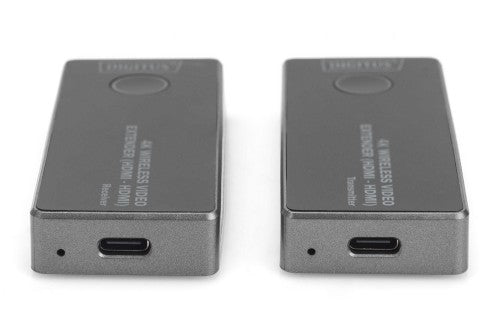

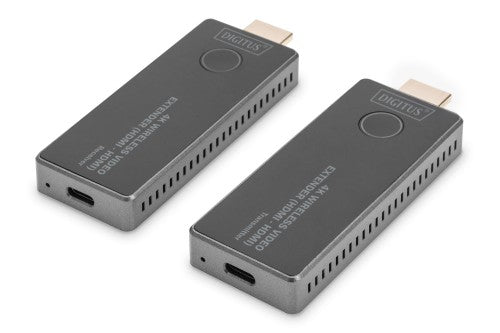

4K Wireless HDMI Extender Set, 30 m HDMI - HDMI, 4K/30 Hz
- Wireless HDMI signal transmission up to 30 m (unrestricted view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to 4K UHD (4K/30Hz)
- Simple operation and handling thanks to Plug & Play - plug in and go, no drivers or software required
- Power supply via USB-C connection
- AES 128 bit encryption
- WPA2 protocol
- HDMI 2.0/1.4
- HDCP 2.2/1.4
Experience cable-free audio and video transmission in razor-sharp UHD 4K/30Hz with the 4K Wireless HDMI Extender. The set enables easy setup without drivers or software thanks to Plug & Play. With a range of up to 30 meters in clear view, it guarantees reliable transmission. AES 128-bit encryption and the WPA2 protocol ensure secure data transmission. Compatible with HDMI 2.0/1.4 and HDCP 2.2/1.4. Ideal e.g. for home cinemas, conference rooms and training facilities. Discover the freedom of wireless entertainment!
Key Features
- Wireless HDMI signal transmission up to 30 m (unrestricted view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to 4K UHD (4096x2160p, 30Hz)
- Simple operation and handling thanks to Plug & Play - plug in and go, no drivers or software required
- Power supply via USB-C connection
- AES 128 bit encryption
- Authentication protocol: WPA2 (WPAS-PSK / WPA2-Enterprise)
- HDMI version: 2.0 (RX) / 1.4 (TX)
- HDCP version: 2.2 (RX) /1.4 (TX)
- Radio standard: IEEE 802.11.b/g/n/ac
- Frequency band: Dual band, 2.4/5G
- Connections per unit: 1x HDMI plug, 1x USB-C socket
- Connection button with LED status indicator
- Power supply: Transmitter - 5V/1A, Receiver - 5V/0.6A
- Compression: H.265
- Latency: approx. 100 ms
- Audio format: PCM
- Audio channel: 2 channels
- Supports signal sources (e.g. games consoles, Blu-Ray players, etc.) with HDMI output as well as PCs/notebooks with Windows, macOS
- ABS housing
- Power consumption: transmitter approx. 3W, receiver approx. 4W
- Operating temperature: 0-40°C
- Dimensions (1 unit): L 8.1 x W 3.4 x H 1.3 cm
- Weight: Transmitter 31 g, receiver 28 g
- Color: Black/Grey
- The transmission distance with limited visibility cannot be determined across the board and depends on the conditions on site
- Walls, glass, etc. shorten the signal coverage or cause signal loss
Description
Transmits HDMI video and audio signals wirelessly in UHD 4K/30Hz over a distance of up to 30 m with unrestricted visibility- Wireless HDMI signal transmission up to 30 m (unrestricted view)
- Point-to-point connection - 1x transmitter (source) + 1x receiver (output device)
- Supports resolutions up to 4K UHD (4K/30Hz)
- Simple operation and handling thanks to Plug & Play - plug in and go, no drivers or software required
- Power supply via USB-C connection
- AES 128 bit encryption
- WPA2 protocol
- HDMI 2.0/1.4
- HDCP 2.2/1.4
Experience cable-free audio and video transmission in razor-sharp UHD 4K/30Hz with the 4K Wireless HDMI Extender. The set enables easy setup without drivers or software thanks to Plug & Play. With a range of up to 30 meters in clear view, it guarantees reliable transmission. AES 128-bit encryption and the WPA2 protocol ensure secure data transmission. Compatible with HDMI 2.0/1.4 and HDCP 2.2/1.4. Ideal e.g. for home cinemas, conference rooms and training facilities. Discover the freedom of wireless entertainment!
Specifications
| Features | |
|---|---|
| Material | ABS |
| HDCP | Yes |
| Audio output channels | 2.0 channels |
| Plug and Play | Yes |
| Maximum refresh rate | 30 Hz |
| Video compression formats | H.265 |
| Security algorithms | 128-bit AES, WPA2 |
| Audio formats supported | PCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 30 m |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| LED indicators | Status |
| Product colour | Black, Silver |
| HDCP version | 2.2 |
| Technical details | |
| Material | ABS |
| HDCP | Yes |
| Audio output channels | 2.0 channels |
| Plug and Play | Yes |
| Maximum refresh rate | 30 Hz |
| Wi-Fi | Yes |
| Video compression formats | H.265 |
| Security algorithms | 128-bit AES, WPA2 |
| Audio formats supported | PCM |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum transfer distance | 30 m |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Product colour | Black, Silver |
| Connectivity technology | Wired & Wireless |
| Quantity per pack | 2 pc(s) |
| Ports & interfaces | |
| Wi-Fi | Yes |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| Connectivity technology | Wired & Wireless |
| Power | |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 4 W |
| Power consumption (transmitter) (max) | 1000 mA |
| Power consumption (receiver) (max) | 600 mA |
| Operating voltage | 5 V |
| Power source type | USB |
| Indication | |
| LED indicators | Status |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
| Receiver weight | 28 g |
| Transmitter weight | 31 g |
| Transmitter dimensions (WxDxH) | 34 x 81 x 13 mm |
| Receiver dimensions (WxDxH) | 34 x 81 x 13 mm |
| Package depth | 119 mm |
| Package width | 119 mm |
| Package height | 49 mm |
| Package weight | 290 g |
| Packaging data | |
| Package depth | 119 mm |
| Package width | 119 mm |
| Package height | 49 mm |
| Package weight | 290 g |
| Quantity per pack | 2 pc(s) |
| Packaging content | |
| Cables included | USB Type-A, USB Type-C |
| Quick start guide | Yes |
