Description
15.6'' TFT LCD (LED) 1920 x 1080, Intel Celeron 7305L, 8GB RAM, 128 SSD, No OS, Without Stand
I‑Series 3 with Intel.
Brilliant and beautiful,
interactive platform.
- 10-touch TouchPro PCAP
- Fanless, IP54 rated design
- Full HD IPS Touchscreen
- Easy to clean edge-to-edge glass
- 50,000 MTBF
Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.

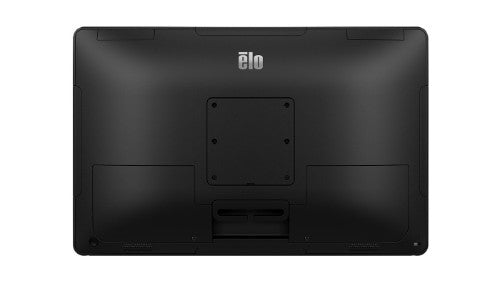

Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
Description
Completely redesignedI‑Series 3 with Intel.
Brilliant and beautiful,
interactive platform.
- 10-touch TouchPro PCAP
- Fanless, IP54 rated design
- Full HD IPS Touchscreen
- Easy to clean edge-to-edge glass
- 50,000 MTBF
Modular design.
Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Enhanced connectivity for all your accessories.
- USB-C full featured
- Gigabit LAN
- Powered RJ50 Serial
- 4x USB 3.0
- 4x Micro-USB Edge Connect
- WiFi & Bluetooth 5.2
Specifications
| Display | |
|---|---|
| HD type | Full HD |
| Panel type | LCD |
| Display diagonal | 39.6 cm (15.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Display brightness | 350 cd/m² |
| Native aspect ratio | 16:9 |
| Processor | |
| Processor cache type | Smart Cache |
| Processor frequency | 1.1 GHz |
| Processor family | Intel® Celeron® |
| Processor model | 7305L |
| Processor cores | 5 |
| Processor cache | 8 MB |
| Processor manufacturer | Intel |
| Processor base power | 15 W |
| Maximum turbo power | 28 W |
| Performance-core Max Turbo Frequency | 1.1 GHz |
| Performance cores | 1 |
| Efficient cores | 4 |
| Performance-core boost frequency | 1.1 GHz |
| Memory | |
| Memory form factor | DIMM/SO-DIMM |
| Internal memory | 8 GB |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 4800 MHz |
| Hard drive | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Storage | |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Optical drive type | No |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 128 GB |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| On-board GPU manufacturer | Intel |
| Audio | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Camera | |
| Built-in camera | No |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 2.0 ports quantity | 4 |
| HDMI ports quantity | 0 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| On/off button | Yes |
| USB4 Gen 3x2 ports quantity | 0 |
| Technical details | |
| Product type | All-in-One PC |
| Product colour | Black |
| Security | |
| Trusted Platform Module (TPM) | Yes |
| HDD user password | Yes |
| Design | |
| Product colour | Black |
| On/off button | Yes |
| Performance | |
| Product type | All-in-One PC |
| Trusted Platform Module (TPM) | Yes |
| HDD user password | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | No |
| Power | |
| AC adapter power | 180 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 24 V |
| Multimedia | |
| Built-in camera | No |
| Weight & dimensions | |
| Package width | 481 mm |
| Package depth | 345 mm |
| Package height | 197 mm |
| Package weight | 5 kg |
| Width (with stand) | 384.1 mm |
| Depth (with stand) | 37.2 mm |
| Height (with stand) | 147.7 mm |
| Weight (with stand) | 3.1 kg |
| Packaging data | |
| Package width | 481 mm |
| Package depth | 345 mm |
| Package height | 197 mm |
| Package weight | 5 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | Canada cUL, IC; United States UL, FCC; Germany TUV; Europe CE; Australia RCM; United Kingdom UKCA; International CB; Argentina S-Mark; Brazil ANATEL; Japan VCCI, MIC; China CCC, SRRC; Mexico NOM; RoHS CoC |
| Other features | |
| On-board graphics card | Yes |
| SSD capacity | 128 GB |
| Processor manufacturer | Intel |
| Number of SSDs installed | 1 |
