Description
54V, 90W, 10/100/1000 Mbps
This midspan delivers a power output of 90 W. With portcast technology it enables both audio and I/O connectivity to your Axis PTZ cameras. Plus, with an SFP port, it supports both network and fiber installations.
Add connectivity
With AXIS TU8003 you can easily add two-way audio and I/O connectivity to your cameras. With portcast technology, this midspan uses the camera’s IP address to provide seemingly camera-integrated audio and I/O connectivity. This enables audio and video in one stream over the network with no extra VMS license. Plus, it supports both digital and unbalanced microphones.
Add power possibilities
AXIS TU8003 deliveries up 90 W and can be used to power selected PTZ cameras. Featuring a built-in SFP slot, it is perfect for long-distance installations. And, with remote on/off functionality with I/O, it's possible to save power if needed. Furthermore, this 90 W midspan is compatible with IEEE 802.3bt, IEEE 802.3af (15 W), IEEE 802.3at and Axis High PoE.
Description

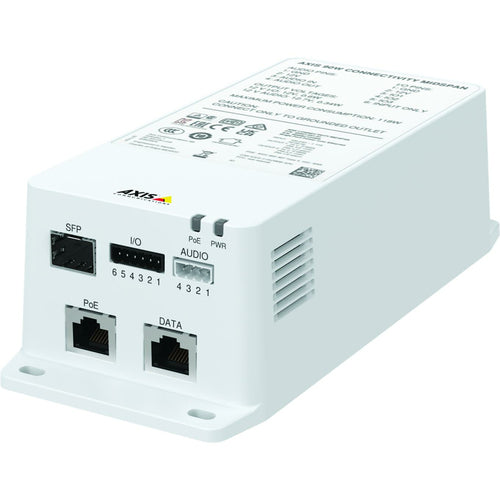

AXIS TU8003 90 W Connectivity MidspanThis midspan delivers a power output of 90 W. With portcast technology it enables both audio and I/O connectivity to your Axis PTZ cameras. Plus, with an SFP port, it supports both network and fiber installations.
Add connectivity
With AXIS TU8003 you can easily add two-way audio and I/O connectivity to your cameras. With portcast technology, this midspan uses the camera’s IP address to provide seemingly camera-integrated audio and I/O connectivity. This enables audio and video in one stream over the network with no extra VMS license. Plus, it supports both digital and unbalanced microphones.
Add power possibilities
AXIS TU8003 deliveries up 90 W and can be used to power selected PTZ cameras. Featuring a built-in SFP slot, it is perfect for long-distance installations. And, with remote on/off functionality with I/O, it's possible to save power if needed. Furthermore, this 90 W midspan is compatible with IEEE 802.3bt, IEEE 802.3af (15 W), IEEE 802.3at and Axis High PoE.
Specifications
| Features | |
|---|---|
| Brand compatibility | Axis |
| Compatibility | Q6074-E PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6135-LE PTZ, Q6225-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ, P3735-PLE, P3737-PLE, P3738-PLE |
| Type | Midspan |
| Placement supported | Universal |
| Product colour | White |
| Certification | UL/cUL, BIS, CE, KC, VCCI, RCM, TAA |
| LED indicators | Yes |
| Networking standards | IEEE 802.3bt |
| Cable length | 1.8 m |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Power | |
| Output voltage | 54 V |
| Input voltage | 100-240 V |
| Rated power | 90 W |
| Input frequency | 50/60 Hz |
| Technical details | |
| Compatibility | Q6074-E PTZ, Q6075-E PTZ, Q6078-E PTZ, Q6135-LE PTZ, Q6225-LE PTZ, Q6315-LE PTZ, Q6318-LE PTZ, P3735-PLE, P3737-PLE, P3738-PLE |
| Type | Midspan |
| Placement supported | Universal |
| Doesn't contain | PVC |
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
| Cable length | 1.8 m |
| Width | 80 mm |
| Weight | 415 g |
| Height | 56 mm |
| Depth | 184 mm |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -25 - 60 °C |
| Certificates | |
| Certification | UL/cUL, BIS, CE, KC, VCCI, RCM, TAA |
