Description
800 MHz, RouterOS v7, 256 MB, 128 MB, DC, 12-28 V, PoE, 18-28 V, 802.11b/g/n/ax, Wi-Fi 6, USB type A, IP55

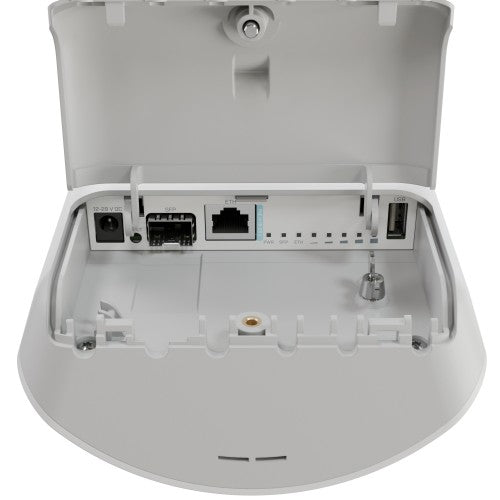

A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
Upgrading your setup to Wi-Fi 6 offers multiple benefits:
Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.
Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks
Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.
Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

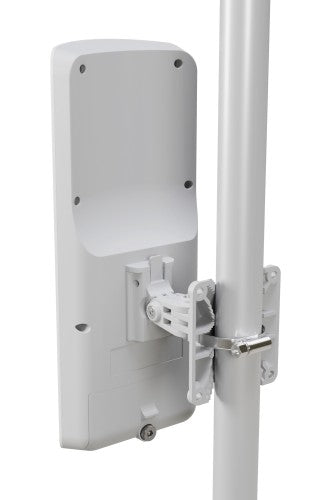

mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.
*It's important to note that while longer links are feasible, their reliability may vary.
Description
Managing outdoor wireless network has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for a vast variety of devices over a distance of 20 kilometers!*A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
Upgrading your setup to Wi-Fi 6 offers multiple benefits:
Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.
Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like bruteforcing and WPA2 handshakecapture deauthentication attacks
Reliability: seamless fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if the connection is shared by a large number of users.
Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!
mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows turning antenna within 140° both horizontally and vertically. With the quickMOUNT pro it is possible to perfectly set antenna alignment using an integrated graduated scale.
*It's important to note that while longer links are feasible, their reliability may vary.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC, IC, EAC, ROHS |
| Chipset | QCN-6102, IPQ-5010 |
| Operating system installed | RouterOS |
| Internal memory | 126 MB |
| Flash memory | 256 MB |
| Compatible operating systems | RouterOS v7 |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Network | |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Memory | |
| Internal memory | 126 MB |
| Flash memory | 256 MB |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Operating system installed | RouterOS |
| Internal memory | 126 MB |
| Flash memory | 256 MB |
| Compatible operating systems | RouterOS v7 |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Ports & interfaces | |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 21 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Pole, Wall |
| Product colour | White |
| Certification | CE, FCC, IC, EAC, ROHS |
| Antenna | |
| Antenna type | Sector antenna |
| Polarization | Dual polarization |
| Antenna gain level (max) | 15 dBi |
| Technical details | |
| Polarization | Dual polarization |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | CE, FCC, IC, EAC, ROHS |
| Packaging data | |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| AC adapter included | Yes |
| Packaging content | |
| Mounting kit | Yes |
| PoE adapter included | Yes |
| AC adapter included | Yes |
| Packaging content | 24V 1.2A power adapter Gigabit PoE injector Hose clamp 1 QMP K-41 fastening set |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| System requirements | |
| Compatible operating systems | RouterOS v7 |
| Other features | |
| Polarization | Dual polarization |
