Description
SD4842P EQ USB-C 10Gbps Triple Video Driverless Docking Station with 100W Power Delivery
Aimed at reducing our environmental impact, all the plastic material used in the SD4842P is composed of up to 70% post-consumer recycled content (PCR). The SD4842P supports up to 3 external Full HD monitors (1080p @ 120Hz) via 1 x DP and 2 x HDMI® connections. The dock also eliminates the need for cumbersome adapters, charging connected accessories without relying on a host laptop connection.
Expand your screens with an effortless dock that will enhance your workflow.
Key Features
- Supports up to 3 external monitors (1080p @ 120Hz*) via 1 x DP and 2 x HDMI® connections.**For maximum resolution, the DSC-enabled laptop, docking station, monitor and laptop all need to support DSC v1.2.
- *This dock supports the Gigabit Ethernet standard which provides a maximum data rate of 1Gbps. Actual Ethernet speeds may vary depending on, but not limited to, Internet bandwidth, Ethernet cables, network switches, and the hardware and firmware performance of the host computer.
- The plastic in this product contains up to 70% post-consumer recycled (PCR) content.*Does not include the cable, power supply or power cords
- Plug-and-play for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® Alt-Mode laptops running Windows 10 or above.
- Up to 100W Power Delivery - charges connected accessories even when host laptop is not connected.
- Provides 5 x plug-and-charge USB ports, 1 x Gigabit Ethernet port and 1 x combo audio jack.
- Compact GaN technology power supply offers enhanced power efficiency.
- Fixed host cable ensures a consistent, reliable connection and prevents cable theft.
- Accommodates Zero-Footprint Mounting and Kensington Security Lock.
- Includes 3-year limited warranty and free Kensington Dockworks™ software.
Reasons To Buy
Triple Video Displays
The SD4842P supports up to 3 external monitors (1080p @ 120Hz*) via 1 x DP and 2 x HDMI® connections.**For maximum resolution, the DSC-enabled laptop, docking station, monitor and laptop all need to support DSC v1.2.Plug-and-Play
A simple plug-and-play solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® Alt-Mode laptops running Windows 10 or above. No drivers or downloads required.Up to 100W Power Delivery
Supports up to 100W laptop charging using a compact GaN technology power supply unit. The plug-and-charge feature allows continuous charging of connected devices even when the host laptop is disconnected.Sustainability Attributes
The plastic in this product contains up to 70% post-consumer recycled (PCR) content.*Does not include the cable, power supply or power cordsMultiple Productivity Ports

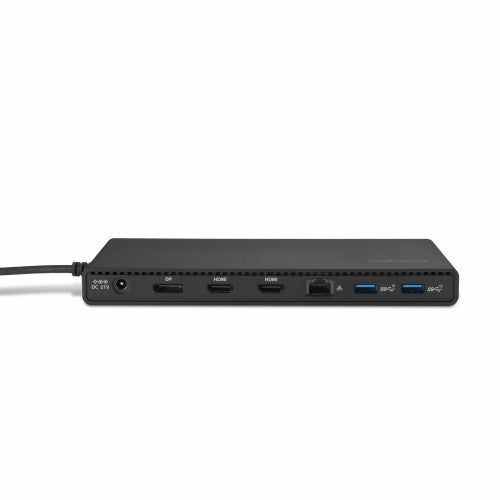

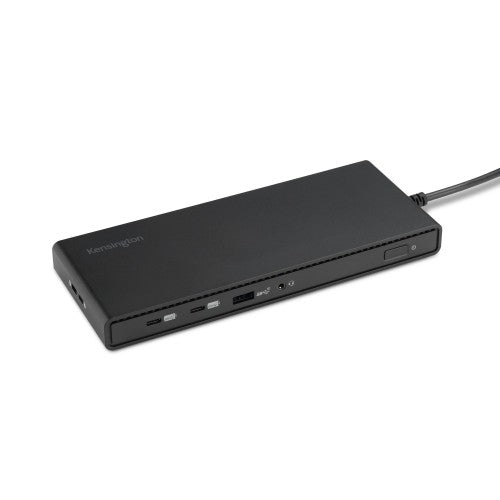

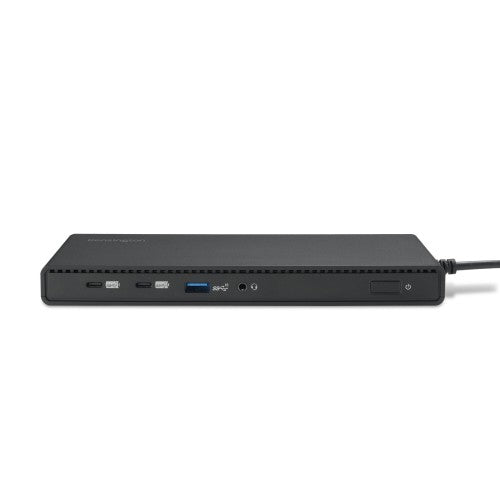

5 x plug-and-charge USB ports support peripherals with up to 10Gbps (2 x USB-C® 3.2 Gen2 (5V/3A) and 3 x USB-A 3.2 Gen2 (5V/0.9A). Also includes 1 x Gigabit Ethernet port and 1 x combo audio jack.Fixed Host Cable and Compact GaN Power Supply

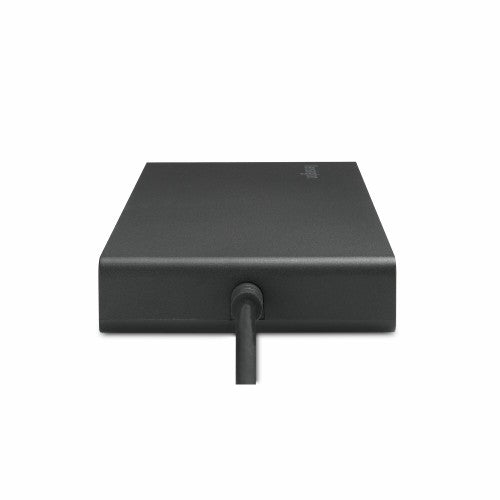

A fixed host cable ensures a reliable connection between the dock and the laptop, providing peace of mind against cable theft. The compact GaN technology power supply unit offers enhanced power efficiency.Zero-Footprint Mounting Option and Security Cable Lock Slots

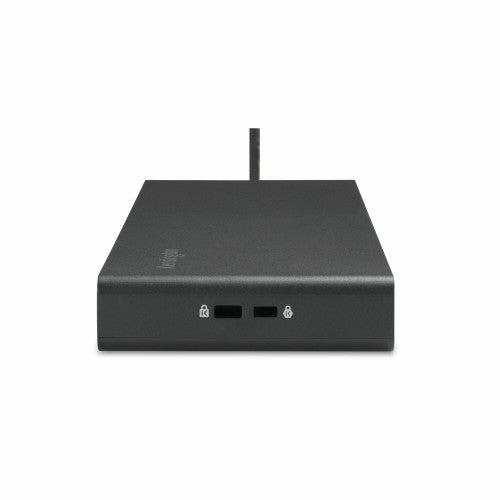

Maximise desktop space by mounting your docking station out of the way. Mounting bracket sold separately (K34050WW). Protect your investment with a Kensington cable lock (K65020EU or K65021WW), sold separately.Free Kensington DockWorks™ Software and 3-Year Limited Warranty
Free DockWorks™ software delivers the best connection, performance and security from your Kensington dock. Enjoy peace of mind knowing your covered by Kensington with a professional warranty.Description
Ideal for professionals requiring a plug-and-play docking solution for USB-C laptops and organizations putting sustainability at the forefront, the SD4842P USB-C® 10Gbps Triple Video Docking Station amplifies visual productivity.Aimed at reducing our environmental impact, all the plastic material used in the SD4842P is composed of up to 70% post-consumer recycled content (PCR). The SD4842P supports up to 3 external Full HD monitors (1080p @ 120Hz) via 1 x DP and 2 x HDMI® connections. The dock also eliminates the need for cumbersome adapters, charging connected accessories without relying on a host laptop connection.
Expand your screens with an effortless dock that will enhance your workflow.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Docking |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| DisplayPort version | 1.4 |
| HDCP | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Number of displays supported | 3 |
| On/off switch | Yes |
| Country of origin | Vietnam |
| Product colour | Black |
| Card reader integrated | No |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| LED indicators | Yes |
| Data transfer rate | 10 Gbit/s |
| Cable lock slot type | Kensington, Nano |
| HD type | 8K Ultra HD |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |
| Maximum refresh rate | 120 Hz |
| Technical details | |
| Product colour | Black |
| Cable lock slot | Yes |
| Plug and Play | Yes |
| Data transfer rate | 10 Gbit/s |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI |
| Products per master (outer) case | 6 pc(s) |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | DC |
| Input current | 2.5 A |
| Compatible power plug types | EU, UK |
| AC input voltage | 100 - 240 V |
| Output voltage | 21 V |
| Output current | 7.1 A |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -18 - 60 °C |
| Operating relative humidity (H-H) | 0 - 55% |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | ErP |
| Weight & dimensions | |
| Weight | 293 g |
| Width | 195 mm |
| Depth | 104 mm |
| Height | 36 mm |
| Package weight | 1.15 kg |
| Package width | 245 mm |
| Package depth | 110 mm |
| Package height | 100 mm |
| Design | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Country of origin | Vietnam |
| Product colour | Black |
| Cable lock slot | Yes |
| LED indicators | Yes |
| Cable lock slot type | Kensington, Nano |
| Packaging data | |
| Package weight | 1.15 kg |
| Package width | 245 mm |
| Package depth | 110 mm |
| Package height | 100 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Warranty card | Yes |
| Logistics data | |
| Products per master (outer) case | 6 pc(s) |
| Other features | |
| Minimum system requirements | CPU: Intel Core i5 6th generation or above Memory: 8Gb or above GPU: Intel HD Graphics 620 or above |
