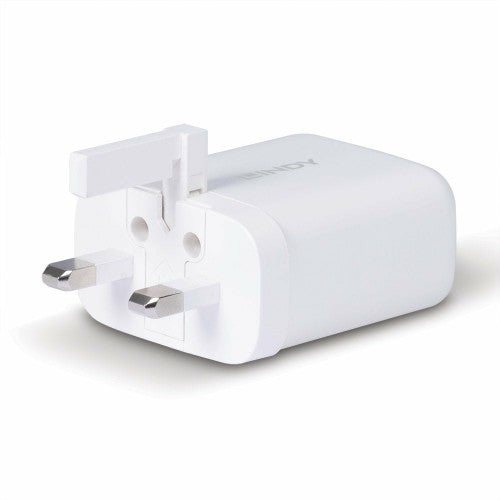

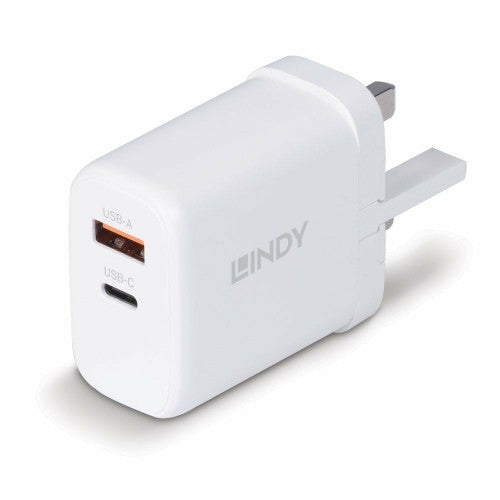

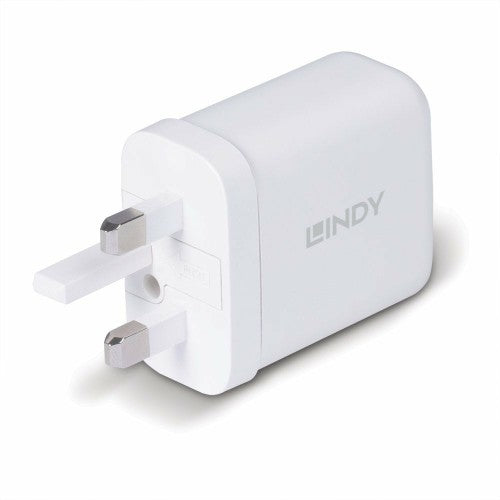

Lindy 65W USB Type A and C GaN Charger

UK Plug, USB A, USB C, 65W, 100-240VAC, 50/60Hz 1.5A, PD 3.0, 40 g

Key Features

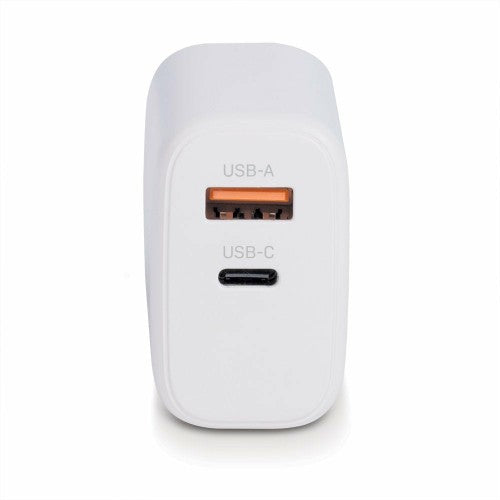

• Charges and powers two devices simultaneously via a USB Type C and a USB Type A port
• 65W GaN technology via the USB Type C port provides fast charging for smartphones, tablets, laptops and other mobile devices
• Compact design for maximum mobility
• Built-in safety features such as overvoltage and overcurrent protection

Description

The Lindy 65W USB Type A & C GaN Charger can charge two devices simultaneously. 65W Power Delivery and PPS are supported by the USB Type C port while the USB Type A port provides fast charging with up to 45W. When both ports are used in parallel a maximum power of 20W will be provided.

Featuring both a USB Type C female and a USB Type A female port this charger is ideal for use with most popular smartphones and iOS devices. Supporting power delivery of 65W and PPS (Programmable Power Supply), connected devices can be provided with faster and smarter charging than what is possible from a standard Type C charger supplied with many devices; it can modify voltage and current in real-time by feeding maximum power based on a device's charging status.

For safe charging the device includes overcharge, overcurrent, overtemperature and short circuit protection. As this charger is rated at Level 6 for efficiency, it also meets the highest current level of energy efficiency standards.

Specifications

Performance
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Charger type	Indoor
Charger compatibility	Universal
Power source type	AC
Power protection features	Over current, Overheating, Over voltage, Short circuit
Fast charging	Yes
Fast charging technology	GaN, Power Delivery 3.0
USB Type-C ports quantity	1
USB Power Delivery	Yes
USB Power Delivery revision	3.0
Number of simultaneously connected devices (max)	2
Design
Product colour	White
Gallium nitride (GaN) transistors	Yes
Housing material	Polyvinyl chloride (PVC)
Connector material	Copper
Power
Input current	1.5 A
Maximum power	65 W
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Maximum output voltage	20 V
Minimum output voltage	5 V
Output current (5V)	3 A
Output current (9V)	3 A
Output current (12V)	3 A
Output voltage accuracy (±)	5%
Power consumption (no load)	0.1 W
Efficiency at low load (10%)	Yes
Average active efficiency	81.38%
Compatible power plug types	UK
Output current (15V)	3 A
Output current (20V)	3.25 A
Technical details
Package type	Box
Charger type	Indoor
Charger compatibility	Universal
Power source type	AC
Power protection features	Over current, Overheating, Over voltage, Short circuit
Manual	Yes
Sustainability compliance	Yes
Sustainability certificates	ErP
Compliance certificates	CE, REACH, RoHS
Weight & dimensions
Width	26.8 mm
Depth	85.3 mm
Height	41.6 mm
Weight	40 g
Package width	80 mm
Package depth	100 mm
Package height	45 mm
Package weight	60 g
Packaging data
Package type	Box
Package width	80 mm
Package depth	100 mm
Package height	45 mm
Package weight	60 g
Operational conditions
Storage temperature (T-T)	-20 - 70 °C
Storage relative humidity (H-H)	20 - 90%
Operating temperature (T-T)	0 - 25 °C
Operating relative humidity (H-H)	20 - 90%
Packaging content
Manual	Yes
Package type	Box
Features
Compatible power plug types	UK
Colour
Product colour	White
Other features
Manual	Yes
Package type	Box
