Description

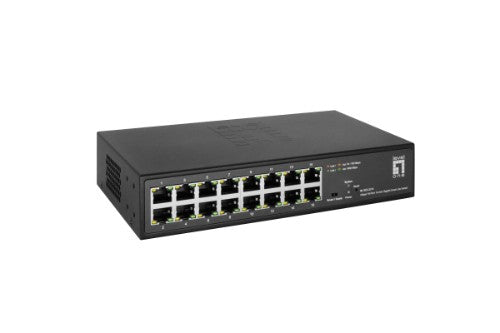

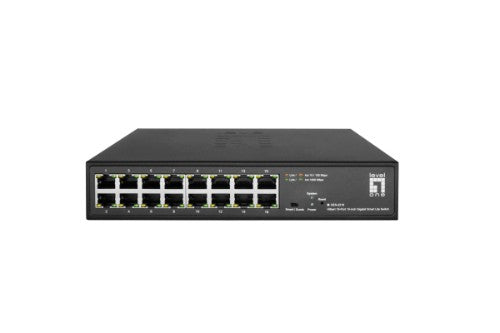

Hilbert 10” 16-Port Gigabit Smart Lite Switch, 16 x Gigabit RJ45 (10/100/1000)
The switch offers 16 (10M/100M/1G) RJ45 ports and is compatible with the latest LevelOne IP Locator, the easiest-to-use switch discovery tool, which can search all Hilbert series switches and instantly know forgotten IP and other info. Additionally, it's compatible with mainstream Windows and Mac operating systems.
With both dumb and smart Switchable usage modes, the switch is easily configurable using a DIP switch. It provides high-speed connectivity for all your devices, with 16 Gigabit ports. The support for 802.1q VLAN allows you to segment your network for enhanced security and performance.
The switch supports Port Mirroring, which allows you to monitor network traffic in real-time. Additionally, with Port-Based/802.1p/DSCP priority QoS and support for Storm Control, you can prioritize network traffic correctly and ensure that your network remains secure.
The advanced features like Loop Detection/Prevention make sure your network is always safe and reliable. Moreover, the web-based user interface and Smart-Configuration Utility make IP configuration a breeze. Upgrade your networking today with this powerful switch, and enjoy the ultimate performance, security, and ease of use.
Key Features
- 16 Gigabit Ethernet ports
- 1000Mbps full-duplex, 10/100Mbps full/half-duplex, auto-negotiation, auto-MDI/MDIX
- Supports 8K MAC address auto-learning and auto-aging
- 10K jumbo frames to increase data transfer rates
- IP Multicast Filtering through IGMP Snooping V1 / V2
- 802.1Q tag-based VLAN allows network segmentation to enhance performance and security
- IEEE 802.1p QoS with 4 priority queues
- Supports unknown unicast / broadcast / multicast storm control
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- 4KV surge protection, 6KV contact / 8KV air ESD protection
- Support Dumb and Web Smart two mode by dip switches
- Web-based and smart lite Management
- Supports LevelOne IP Locator for easier IP management
Description
If you're in search of a networking solution that fits your 10-inch rack/enclosure, the LevelOne GES-2216 Hilbert gigabit smart lite switch is an excellent option. This next-generation Ethernet switch delivers better functionality and usability, making it cost-effective for businesses and organizations.The switch offers 16 (10M/100M/1G) RJ45 ports and is compatible with the latest LevelOne IP Locator, the easiest-to-use switch discovery tool, which can search all Hilbert series switches and instantly know forgotten IP and other info. Additionally, it's compatible with mainstream Windows and Mac operating systems.
With both dumb and smart Switchable usage modes, the switch is easily configurable using a DIP switch. It provides high-speed connectivity for all your devices, with 16 Gigabit ports. The support for 802.1q VLAN allows you to segment your network for enhanced security and performance.
The switch supports Port Mirroring, which allows you to monitor network traffic in real-time. Additionally, with Port-Based/802.1p/DSCP priority QoS and support for Storm Control, you can prioritize network traffic correctly and ensure that your network remains secure.
The advanced features like Loop Detection/Prevention make sure your network is always safe and reliable. Moreover, the web-based user interface and Smart-Configuration Utility make IP configuration a breeze. Upgrade your networking today with this powerful switch, and enjoy the ultimate performance, security, and ease of use.
Specifications
| Network | |
|---|---|
| IGMP snooping | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Full duplex | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 32 |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 32 |
| Data transmission | |
| Number of VLANs | 32 |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Jumbo frames support | Yes |
| Forwarding rate | 23808 Mpps |
| Performance | |
| Packet buffer memory | 4.1 MB |
| Stackable | No |
| Auto-negotiation | Yes |
| Mean time between failures (MTBF) | 43800 h |
| Flash memory | 2 MB |
| Fanless | Yes |
| Power | |

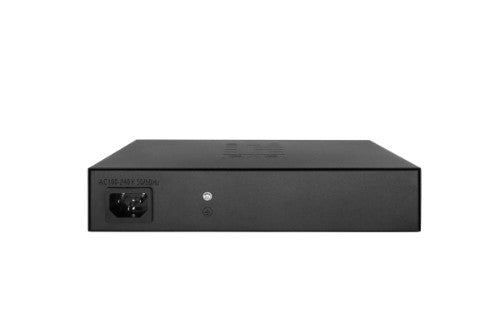

| Power connector | AC-in jack |
| Power supply included | Yes |
| Power consumption (typical) | 6 W |
| Power source | AC |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Mean time between failures (MTBF) | 43800 h |
| Rack mounting | Yes |
| Management features | |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Power connector | AC-in jack |
| Security | |
| IGMP snooping | Yes |
| Certificates | |
| Certification | CE, UKCA, FCC Part 15, Subpart B Class B, RoHS |
| Memory | |
| Packet buffer memory | 4.1 MB |
| Flash memory | 2 MB |
| Design | |
| Product colour | Black |
| Stackable | No |
| LED indicators | Activity, Link, Power |
| Certification | CE, UKCA, FCC Part 15, Subpart B Class B, RoHS |
| Rack mounting | Yes |
| Indication | |
| LED indicators | Activity, Link, Power |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 35.8 BTU/h |
| Weight & dimensions | |
| Width | 215 mm |
| Depth | 150 mm |
| Height | 44.5 mm |
| Weight | 838 g |
| Packaging data | |
| Package type | Box |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Package width | 285 mm |
| Package depth | 257 mm |
| Package height | 62 mm |
| Package weight | 1.27 kg |
| Cables included | AC |
| Packaging content | |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
