Description

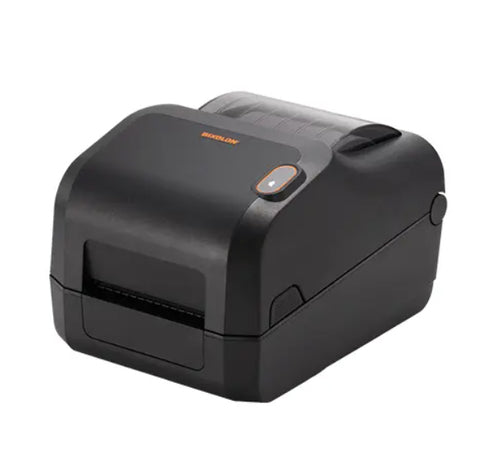

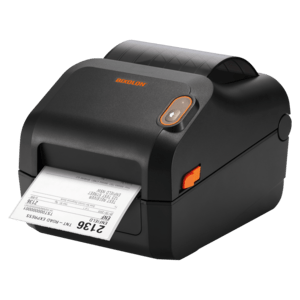

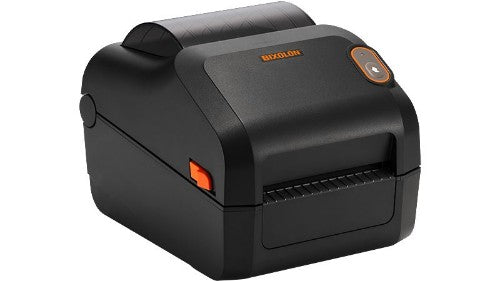

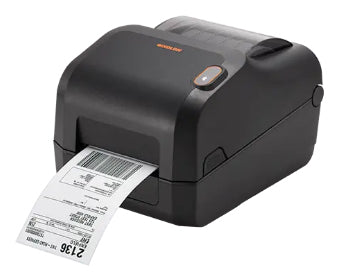

Thermal Transfer Desktop Label Printer, Up to 5 ips (127 mm/sec), 203 dpi, 64 MB SDRAM, 128 MB Flash
Supporting data processing and print speed up to 5 ips (127mm/sec) to produce high quality 203dpi text, graphics and barcodes paired with memory space of up to 64MB SDRAM, 125MB Flash Memory. Multiple connectivity options including USB 2.0 as standard, plus optional USB + Serial + Ethernet. Flexible core ribbon handling for 1/2-inch and 1-inch options (74m and 300m). While accompanied with an optional field-installable Peeler and an external paper supply, the label printer offers an adjustable paper guide plus holder and space for a media roll diameter of up to 127mm.
The XD3-40t is compatible with market-leading programming languages including SLCS™, BPL-Z™ and BPL-E™ and provides Smart Switch language programming without having to set the mode. Harmonizing with label design software including BIXOLON’s Label Artist-II™ and BarTender® UltraLite for BIXOLON. The XD3-40t also allows easy printer management and support with a single button setup with visual LED, comprehensive online ‘How to’ videos and an onboard QR code with direct links to online support resources. All complimented by a 2-year warranty as standard.
Description
The XD3-40t, a 4-inch (118mm) cost-effective Direct Thermal or Thermal Transfer Desktop Barcode and Label printer. Featuring a compact, clamshell design paired with high reliability which is ideal for labelling applications within the Manufacturing, Retail, Transport and Logistics and Healthcare industries.Supporting data processing and print speed up to 5 ips (127mm/sec) to produce high quality 203dpi text, graphics and barcodes paired with memory space of up to 64MB SDRAM, 125MB Flash Memory. Multiple connectivity options including USB 2.0 as standard, plus optional USB + Serial + Ethernet. Flexible core ribbon handling for 1/2-inch and 1-inch options (74m and 300m). While accompanied with an optional field-installable Peeler and an external paper supply, the label printer offers an adjustable paper guide plus holder and space for a media roll diameter of up to 127mm.
The XD3-40t is compatible with market-leading programming languages including SLCS™, BPL-Z™ and BPL-E™ and provides Smart Switch language programming without having to set the mode. Harmonizing with label design software including BIXOLON’s Label Artist-II™ and BarTender® UltraLite for BIXOLON. The XD3-40t also allows easy printer management and support with a single button setup with visual LED, comprehensive online ‘How to’ videos and an onboard QR code with direct links to online support resources. All complimented by a 2-year warranty as standard.
Specifications
| Print quality | |
|---|---|
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.4 cm |
| Maximum print height | 100 cm |
| Printing | |
| Print speed | 5 lpm |
| Print speed | 127 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Maximum printing width | 10.4 cm |
| Maximum print height | 100 cm |
| Print technology | Direct thermal / Thermal transfer |
| Margin depth settings | Fixed |
| Network | |
| Wi-Fi | Yes |
| Memory | |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Paper handling | |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Media thickness | 0.06 - 0.2 mm |
| Maximum roll diameter | 12.7 cm |
| Maximum label width | 11.8 cm |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Wi-Fi | Yes |
| USB port | Yes |
| Performance | |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Internal memory | 64 MB |
| Flash memory | 128 MB |
| Page description languages | BPL, SLCS |
| Design | |
| Product colour | Black |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Technical details | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Product colour | Black |
| Ribbon width | 11 cm |
| Ribbon length | 300 m |
| Maximum label width | 11.8 cm |
| System requirements | |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width | 210 mm |
| Depth | 284 mm |
| Height | 186 mm |
| Weight | 2.6 kg |
