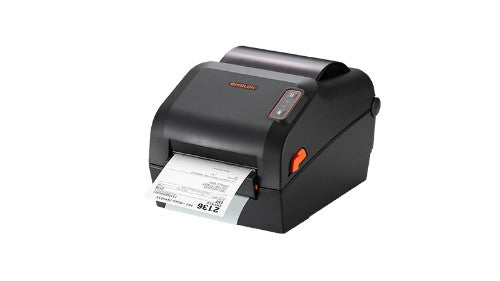

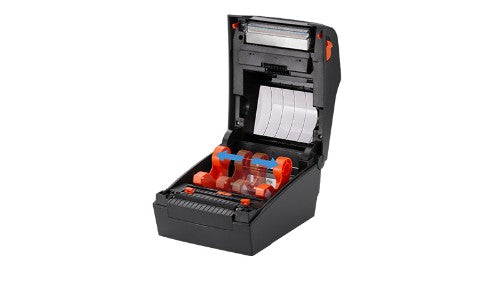

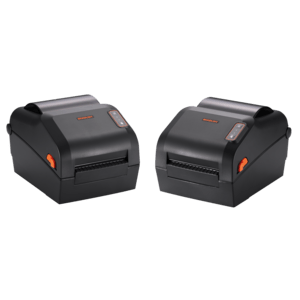

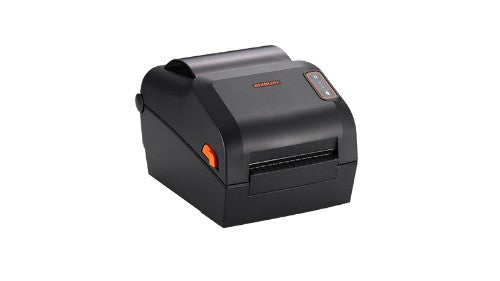

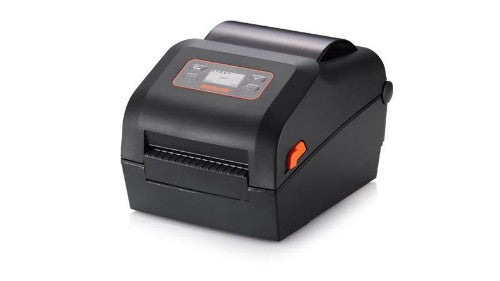

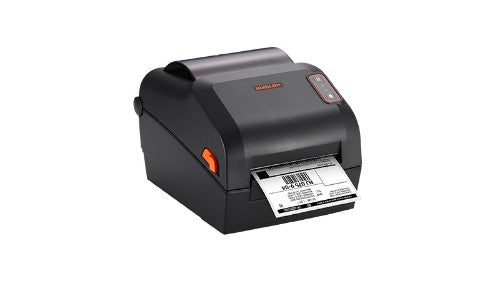

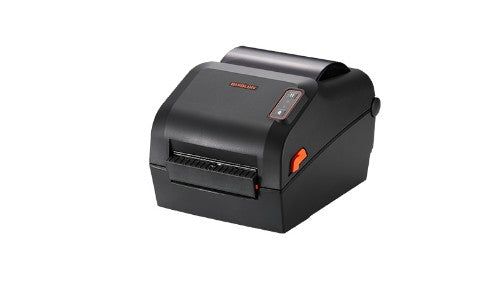

Bixolon XD5-40DK/BEG label printer Direct thermal 203 x 203 DPI 178 mm/sec Wired

Direct Thermal, 7 ips (178 mm/sec), 203 dpi, 108 mm max, 64 MB SDRAM, 128 MB Flash, USB, 1.89kg

Description

4-inch Direct Thermal Desktop Label Printer
The compact, 4-inch Direct Thermal XD5-40d provides a performance feature set supporting multiple media types and range of wired and wireless interfaces. Fast processing and print speeds up to 7ips, the printer has optional high resolution and LCD display choices. 300dpi for finer output and LCD display for easier setup and use, or to receive instructional and alert information that provides links to model specific support pages.

Reliable and Solid Performance
- Supporting Direct Thermal(XD5-40d) and Thermal Transfer(XD5-40t) label printing
- Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
- Optional 300 dpi high-resolution choice for fine print quality
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.0 (MFi certified)
- Extended memory space up to 256MB SDRAM, 512MB Flash

Next Level Usability
- Supports UHF RFID print and encode capability plus minimum encoding inlay pitch of 0.6 inch (16 mm) inlay
- An adjustable media guide and a holder
- Compact clamshell design with intuitive menu buttons and optional LCD Display
- Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
- Field-installable Peeler and Auto Cutter

Secure and Efficient Management
- Twin funtion™ supported: Copy printer setting and data by USB
- Compatible with label design software;
- BIXOLON’s Label Artist™ and Seagull's BarTender®
- XPM™ & XCM™ - Web-based printer management software and connection app
- A suite of SDKs for major operating systems
- Building standalone label printing solution using XI, BIXOLON's BASIC programming Interpreter

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Printing
Print speed	178 mm/sec
Maximum resolution	203 x 203 DPI
Print technology	Direct thermal
Network
Wi-Fi	No
Ethernet LAN	No
Memory
Internal memory	64 MB
Flash memory	128 MB
Paper handling
Ribbon width	11 cm
Ribbon length	300 m
Media thickness	0.06 - 0.2 mm
Maximum roll diameter	12.7 cm
Maximum label width	11.8 cm
Autocutter	Yes
Core diameters supported	12.7 mm (0.5"), 25.4 mm (1"), 38.1 mm (1.5")
Ports & interfaces
USB 2.0 ports quantity	2
Connectivity technology	Wired
Wi-Fi	No
Ethernet LAN	No
USB port	Yes
Performance
Mobile operating systems supported	Android, iOS
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 Databar (RSS-14), IMB, Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, Standard 2/5, TLC39, UPC-A, UPC-C
Ribbon width	11 cm
Ribbon length	300 m
Internal memory	64 MB
Flash memory	128 MB
Character sets	5 BPL-E, 16 BPL-Z, SLCS, Unicode
Design
Product colour	Black
Control type	Buttons
Built-in display	No
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Built-in barcodes	1D, 2D, AZTECCODE, CODABAR (NW-7), Codablock, Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 Databar (RSS-14), IMB, Industrial 2/5, Interleaved 2/5, LOGMARS, MSI, MaxiCode, MicroPDF417, PDF417, POSTNET, Plessey, QR Code, Standard 2/5, TLC39, UPC-A, UPC-C
Ribbon width	11 cm
Ribbon length	300 m
Maximum label width	11.8 cm
Emulations	SLCS, BPL-Z (ZPLII), BPL-E (EPL)
Character sets	5 BPL-E, 16 BPL-Z, SLCS, Unicode
Sustainability certificates	ENERGY STAR
System requirements
Mobile operating systems supported	Android, iOS
Linux operating systems supported	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Weight & dimensions
Width	194 mm
Depth	248 mm
Height	169 mm
Weight	1.89 kg
Packaging content
Cables included	USB
Other features
Emulations	SLCS, BPL-Z (ZPLII), BPL-E (EPL)
Character sets	5 BPL-E, 16 BPL-Z, SLCS, Unicode
