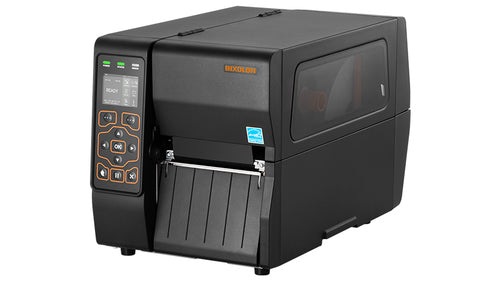

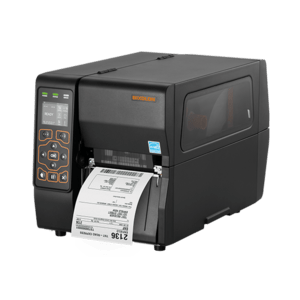

Bixolon XT3-40 label printer Thermal transfer 203 x 203 DPI 203 mm/sec Wired Wi-Fi

XT3-40 4-inch Thermal Transfer Industrial Label Printer, 203 DPI, 2.4 inch Color LCD, 128 MB SDRAM, 128 MB Flash, Standard

Description

Adding a new entry-level 4-inch (114 mm) printing solution to BIXOLON's industrial label printer lineup, XT3-40 is designed with a familiar feel to the XT5-40 Series. The XT3-40 supports fast data processing and print speeds of up to 8 ips (203 mm/sec) at 203 dpi. Featuring a compact and robust design, double-holding door, and side-loading supplier path, the XT3-40 allows easy printer installation within narrow environments.

User-Friendly Design

- Compact and robust design
- Rugged all-metal case and double folding door
- Side-loading supplies path for simplified media and ribbon installation
- 2.4 inch full colour LCD display
- Peeler and Auto Cutter, and factory-installed Rewinder with Peeler options
- Toolless maintenance of roller and print head
- Supporting up to 450 m ribbon length

Industrial-Standard Performance

- Fast data processing and print speeds of up to 8 ips (203 mm/sec)
- Optional 203 or 300 dpi high resolutions
- Fully compatible with market-leading programming languages
- Dual-band WLAN (5 GHz and 2.4 GHz) and Bluetooth V5.2 (MFi certified)

Secure and Efficient Management

- Twin funtion™ supported: Copy printer settings and data via USB
- Compatible with label design software;
- BIXOLON’s Label Artist and Seagull's BarTender
- XPM™ & XCM™ - Web-based printer management software and connection app.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	10.8 cm
Printing
Minimum print length	4 m
Print speed	203 mm/sec
Maximum resolution	203 x 203 DPI
Maximum printing width	10.8 cm
Print technology	Thermal transfer
Display
Display diagonal	6.1 cm (2.4")
Colour display	Yes
Display	LCD
Network
Wi-Fi	Yes
Memory
Internal memory	128 MB
Flash memory	128 MB
Paper handling
Ribbon width	11 cm
Ribbon length	450 m
Media thickness	0.06 - 0.25 mm
Maximum roll diameter	20.3 cm
Maximum label width	11.4 cm
Ports & interfaces
RS-232 ports	1
Connectivity technology	Wired
Bluetooth	No
Wi-Fi	Yes
USB port	Yes
Performance
Mobile operating systems supported	Android, iOS
Built-in barcodes	1D, 2D
Ribbon width	11 cm
Ribbon length	450 m
Internal memory	128 MB
Flash memory	128 MB
Page description languages	BPL, SLCS
Design
Display diagonal	6.1 cm (2.4")
Colour display	Yes
Display	LCD
Product colour	Black
Control type	Buttons
Built-in display	Yes
Power
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Technical details
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Product colour	Black
Built-in barcodes	1D, 2D
Ribbon width	11 cm
Ribbon length	450 m
Maximum label width	11.4 cm
System requirements
Mobile operating systems supported	Android, iOS
Linux operating systems supported	Yes
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Operational conditions
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Weight & dimensions
Width	240 mm
Depth	430.5 mm
Height	276.7 mm
Weight	9.3 kg
Packaging content
Cables included	USB
