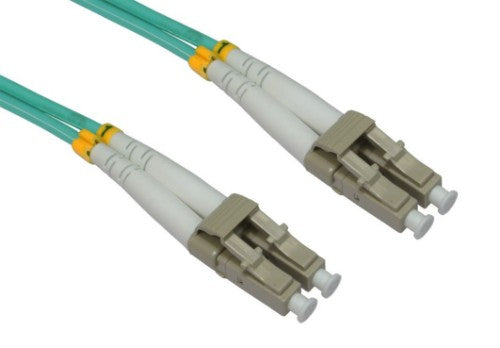

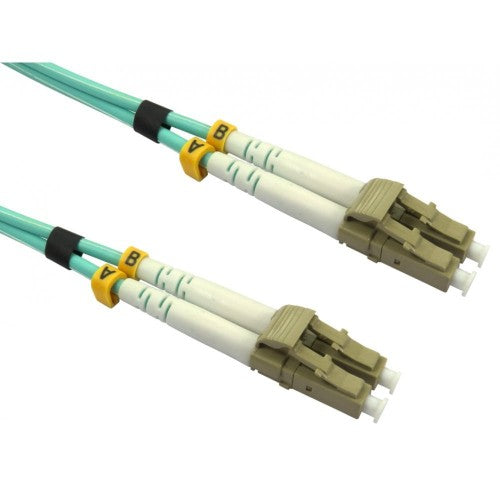

1m OM3 Fibre Optic Cable LC-LC (Multi-Mode)
Key Features
- LC to LC
- LC UPC Connectors
- 50/125µm Duplex
- Wavelength: 850nm & 1300nm
- Bandwidth: 1500 / 2000MHz
- Multi-mode OM3
- Aqua LSZH jacket
- Insertion Loss: <= 0.30dB
- Return Loss: > 35dB
- Diameter 3.0mm
Description
Our OM3 fibre optic cables are constructed with 50µm core and 125µm cladding and various connectors. The OM3 range offer a higher bandwidth and greater distance over OM2 cables.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
LC/UPC |
| Cable length |
1 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Features |
|---|
| Fibre optic type |
OM3 |
| Return loss |
35 dB |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable type |
LC/UPC |
| Cable length |
1 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Wavelengths supported |
850,1300 nm |
| Product colour |
Aqua colour |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Weight & dimensions |
|---|
| Cable length |
1 m |
| Cable diameter |
3 mm |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
