Description
ADF, Duplex, 600 dpi, 4.3" TFT, USB 3.1 Gen1, LAN, 42 W
Users can scan and save documents without any requirement for a local computer, they can simply login to the scanner using user authentication and select a job from their personalized job menus on the fi-7300NX’s touch screen. Customized job menus ensure efficient and secure decentralized data entry is possible for each user.

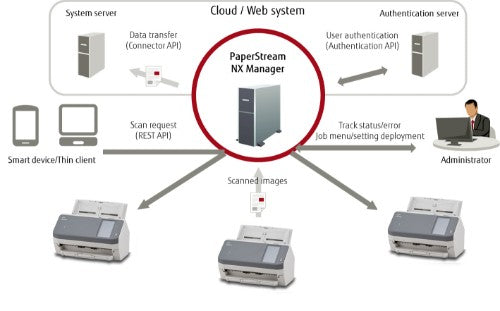

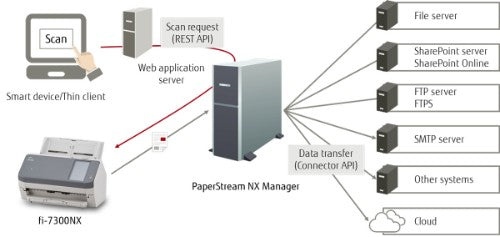

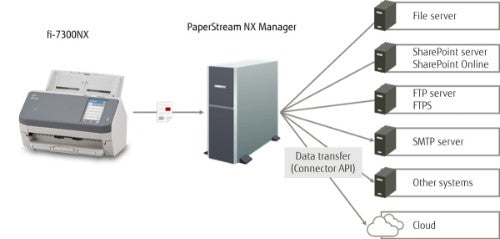

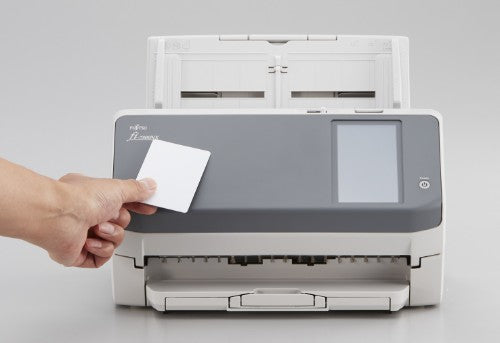

The fi-7300NX supports NFC (Type-A and Type-B) authentication and user authentication with username and password input on the touch screen. It is also possible for different job menus to be assigned to each scanner, and avoid any authentication processes. With PaperStream NX Manager, users can scan from mobile or web applications opened up on smart devices or thin client terminals. Seamless integration into company systems enables use of a variety of devices for scanning operations. The user authentication function, job menu, and other scan settings are all centrally managed with PaperStream NX Manager and Scanner Central Admin. With the fi-7300NX’s server software, there is no need for the conventional single client computer to scanner environment and the system administrator to stand by the scanner. This reduces the total burden of installation, expansion, operation, and management. Manage jobs and process images with PaperStream NX Manager. Monitor scanner operation with Scanner Central Admin.
When scanning with computers, the fi-7300NX can be used with PaperStream IP, a specialized scanner driver for image scanners, via Wi-Fi connection, wired network, and USB connection. Connection without need for the USB cable allows the scanner to be positioned wherever needed, to improve user productivity, reduce interruptions, and make more room for more frequently used equipment.
*Based on a study by PFU Limited on scanners with Wi-Fi connectivity (September 4th, 2018).
Key Features
- Scan from the scanner with touch screen operation
- Various authentication methods for improved efficiency and security
- Scan from your smart device to any business platform
- 3 types of SDKs to suit any environment
- PaperStream NX Manager and Scanner Central Admin for centralized management
- Paper Protection function protects scans from jamming by detecting anomalies in document length and sound
- Manual Feed Mode for scanning folded or bound documents
Description

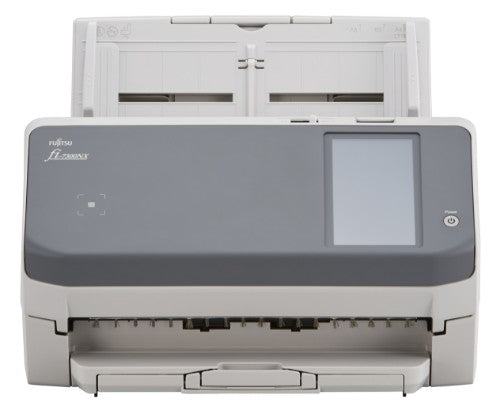

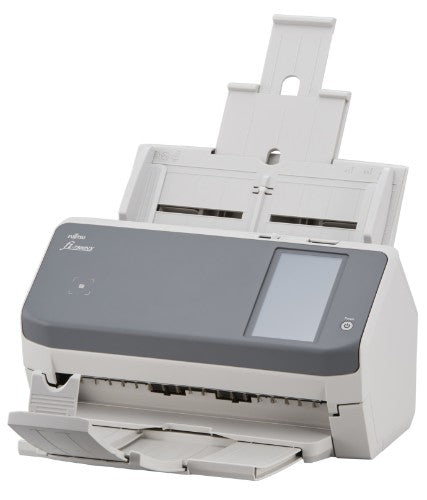

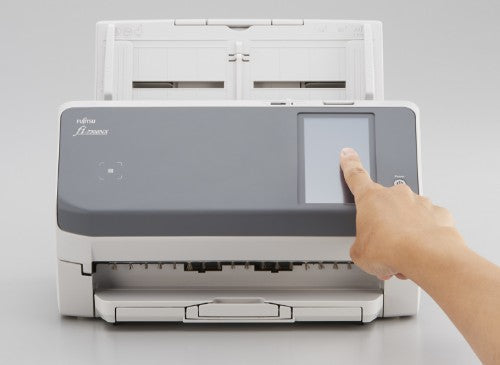

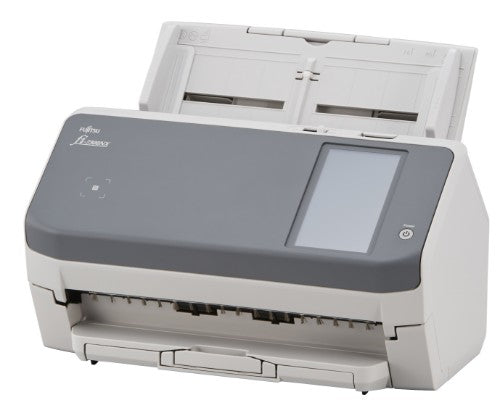

The fi-7300NX is an Image Scanner that supports web systems and connects directly to client systems. Users can begin scanning from the scanner’s touch screen or from various applications on smart devices to suit all business needs. Not only is direct data transfer to client-unique web systems possible with SDK use, but secure data transfer is also possible with strong data encryption. The fi-7300NX boasts a speed of 60 ppm/120 ipm (200/300 dpi) for scanning A4 portraits, loads up to 80 sheets at a time, and ensures utmost efficiency as the first standalone* scanner in the world to support 5 GHz Wi-Fi. The 4.3” touch screen enables users to perform operations intuitively, like scanning and data checking, with thumbnail reviews of scans and the screen also displays messages or instructions with illustrations so that users can handle errors themselves.Users can scan and save documents without any requirement for a local computer, they can simply login to the scanner using user authentication and select a job from their personalized job menus on the fi-7300NX’s touch screen. Customized job menus ensure efficient and secure decentralized data entry is possible for each user.
The fi-7300NX supports NFC (Type-A and Type-B) authentication and user authentication with username and password input on the touch screen. It is also possible for different job menus to be assigned to each scanner, and avoid any authentication processes. With PaperStream NX Manager, users can scan from mobile or web applications opened up on smart devices or thin client terminals. Seamless integration into company systems enables use of a variety of devices for scanning operations. The user authentication function, job menu, and other scan settings are all centrally managed with PaperStream NX Manager and Scanner Central Admin. With the fi-7300NX’s server software, there is no need for the conventional single client computer to scanner environment and the system administrator to stand by the scanner. This reduces the total burden of installation, expansion, operation, and management. Manage jobs and process images with PaperStream NX Manager. Monitor scanner operation with Scanner Central Admin.
When scanning with computers, the fi-7300NX can be used with PaperStream IP, a specialized scanner driver for image scanners, via Wi-Fi connection, wired network, and USB connection. Connection without need for the USB cable allows the scanner to be positioned wherever needed, to improve user productivity, reduce interruptions, and make more room for more frequently used equipment.
*Based on a study by PFU Limited on scanners with Wi-Fi connectivity (September 4th, 2018).
Specifications
| Scanning | |
|---|---|
| Output greyscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Background colours | Black, White |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Maximum scan size | 216 x 5588 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Output colour depth | 24 bit |
| Duplex ADF scan speed (colour, A4) | 120 ipm |
| Sensor type | Dual CCD |
| Light source | White LED (2x) |
| Daily duty cycle (max) | 4000 pages |
| Design | |
| Built-in display | Yes |
| Touchscreen | Yes |
| Scanner type | ADF scanner |
| Display diagonal | 10.9 cm (4.3") |
| Display | TFT |
| Product colour | Grey, White |
| Performance | |
| Sensor type | Dual CCD |
| Light source | White LED (2x) |
| Daily duty cycle (max) | 4000 pages |
| Scan drivers | ScanSnap, TWAIN, WIA |
| Supported network protocols | IPv4(15), TCP, UDP, ICMP, DHCP, HTTP/HTTPS, DNS |
| Ultrasonic double sheet detection | Yes |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 80 sheets |
| Paper handling | |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 5.59 m |
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Plain paper, Plastic Card |
| Minimum scan area (ADF) | 50.8 x 54 mm |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Long-paper mode | Yes |
| Ports & interfaces | |
| Standard interfaces | Ethernet, USB 1.1, USB 2.0, USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN |
| USB port | Yes |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Socket connector type | C5 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Supported network protocols | IPv4(15), TCP, UDP, ICMP, DHCP, HTTP/HTTPS, DNS |
| Software | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
| Scan drivers | ScanSnap, TWAIN, WIA |
| Drivers included | Yes |
| Power | |
| Power consumption (typical) | 42 W |
| Power consumption (off) | 0.35 W |
| Input voltage | 100 - 240 V |
| Power supply type | AC |
| Power consumption (PowerSave) | 2.4 W |
| Weight & dimensions | |
| Width | 300 mm |
| Depth | 202 mm |
| Height | 170 mm |
| Weight | 49 kg |
| Package depth | 400 mm |
| Package weight | 7.2 kg |
| Package width | 270 mm |
| Package height | 305 mm |
| Packaging data | |
| Package depth | 400 mm |
| Package weight | 7.2 kg |
| Package width | 270 mm |
| Package height | 305 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Cables included | AC, USB |
| ADF paper chute | Yes |
| AC adapter included | Yes |
| Drivers included | Yes |
| Technical details | |
| Maximum scan width | 21.6 cm |
| Pallet gross width | 101.6 cm |
| Pallet gross length | 121.9 cm |
| Black/white scanning colour modes | Grayscale, Monochrome |
| Scanner type | ADF scanner |
| Country of origin | Indonesia |
| Product colour | Grey, White |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 8471607000 |
| Wood packaging weight | 0 g |
| Plastic packaging weight | 15 g |
| Paper packaging weight | 2.4 kg |
| Metal packaging weight | 0 g |
| Compliance certificates | RoHS |
| Display | |
| Touchscreen | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Display | TFT |
| Features | |
| Country of origin | Indonesia |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64, Windows Server 2016 x64 |
| Minimum processor | 3.5 GHz |
| Minimum storage drive space | 120000 MB |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 41 - 95 °F |
| Other features | |
| Background colours | Black, White |
| Compliance certificates | RoHS |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Scanner type | ADF scanner |
| Country of origin | Indonesia |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Country of origin | Indonesia |
| Quantity per pack | 1 pc(s) |
| Pallet gross width | 101.6 cm |
| Pallet gross length | 121.9 cm |
| Harmonized System (HS) code | 8471607000 |
| Wood packaging weight | 0 g |
| Plastic packaging weight | 15 g |
| Paper packaging weight | 2.4 kg |
| Metal packaging weight | 0 g |
| Products per pallet (sea) | 60 pc(s) |
| Products per pallet (air) | 40 pc(s) |
| Polystyrene (EPS/EPP) packaging weight | 200 g |
| Pallet height (sea) | 198 cm |
| Pallet height (air) | 137 cm |
| Foil packaging weight | 15 g |
| Glass packaging weight | 0 g |
| Cardboard packaging weight | 1.2 kg |
