TP-Link TL-WPA8631P KIT, 300 Mbit/s, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Type E / F, Gigabit Ethernet, 10,100,1000 Mbit/s, Wi-Fi 5 (802.11ac)
Description

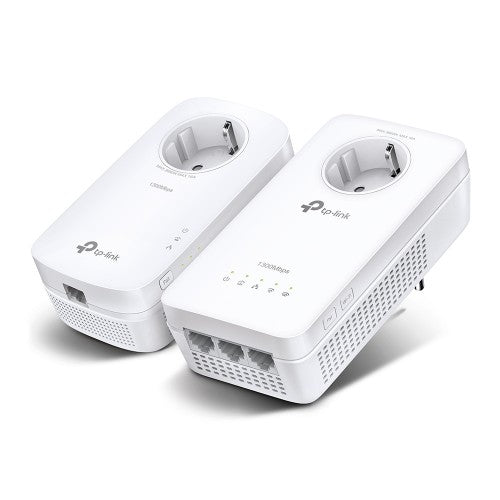

TP-Link TL-WPA8631P KIT. Maximum data transfer rate: 300 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Power plug: Type E / F. Power consumption (typical): 11 W. Product colour: White, Antenna type: Internal. Windows operating systems supported: Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP. Package width: 230 mm, Package depth: 190 mm, Package height: 100 mm
Specifications
| Performance |
|---|
| Ethernet LAN interface type |
Gigabit Ethernet |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
3 |
| Wi-Fi |
Yes |
| Maximum data transfer rate |
300 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power plug |
Type E / F |
| Built-in power socket |
Yes |
| PowerLine standard |
HomePlug AV2 |
| Modulation |
OFDM |
| Security algorithms |
WEP, WPA-PSK, WPA2-PSK |
| Maximum operating distance |
300 m |
| Quality of Service (QoS) support |
Yes |
| Plug and Play |
Yes |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (second band) |
867 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| Technical details |
|---|
| Antenna type |
Internal |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
3 |
| Wi-Fi |
Yes |
| Maximum data transfer rate |
300 Mbit/s |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Power plug |
Type E / F |
| Built-in power socket |
Yes |
| PowerLine standard |
HomePlug AV2 |
| Modulation |
OFDM |
| Security algorithms |
WEP, WPA-PSK, WPA2-PSK |
| Maximum operating distance |
300 m |
| LED indicators |
Yes |
| Product colour |
White |
| Quality of Service (QoS) support |
Yes |
| Plug and Play |
Yes |
| Power |
|---|
| Power consumption (typical) |
11 W |
| Design |
|---|
| Antenna type |
Internal |
| LED indicators |
Yes |
| Product colour |
White |
| System requirements |
|---|
| Mac compatibility |
Yes |
| Windows operating systems supported |
Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
|---|
| Package width |
230 mm |
| Package depth |
190 mm |
| Package height |
100 mm |
| Package weight |
870 g |
| Packaging data |
|---|
| Package type |
Box |
| Package width |
230 mm |
| Package depth |
190 mm |
| Package height |
100 mm |
| Package weight |
870 g |
| Packaging content |
|---|
| Quantity per pack |
2 pc(s) |
| Package type |
Box |
| Quick installation guide |
Yes |
| Cables included |
LAN (RJ-45) |
