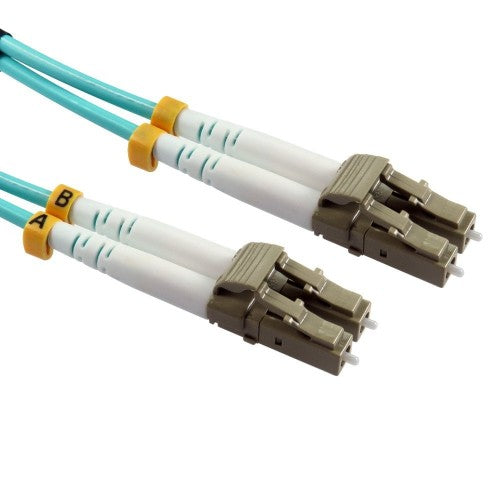

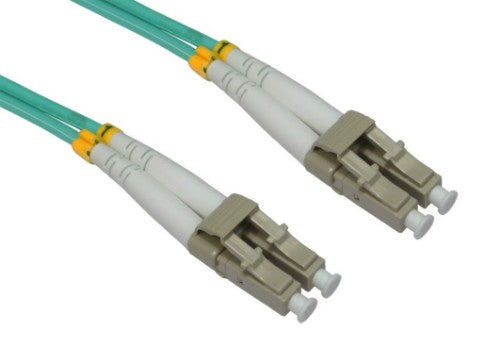

3m OM3 Fibre Optic Cable LC-LC (Multi-Mode)
Description
Our OM3 fibre optic cables are constructed with 50µm core and 125µm cladding and various connectors. The OM3 range offer a higher bandwidth and greater distance over OM2 cables.
Specifications
| Features |
|---|
| Fibre optic type |
OM3 |
| Return loss |
35 dB |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
3 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Product colour |
Aqua colour |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Connector polish type |
UPC |
| Cable shape |
Round |
| Sustainability |
|---|
| Doesn't contain |
Halogen |
| Weight & dimensions |
|---|
| Cable diameter |
3 mm |
| Cable length |
3 m |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
3 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Doesn't contain |
Halogen |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
