Description

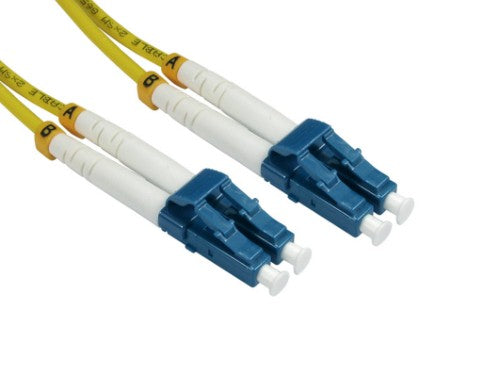

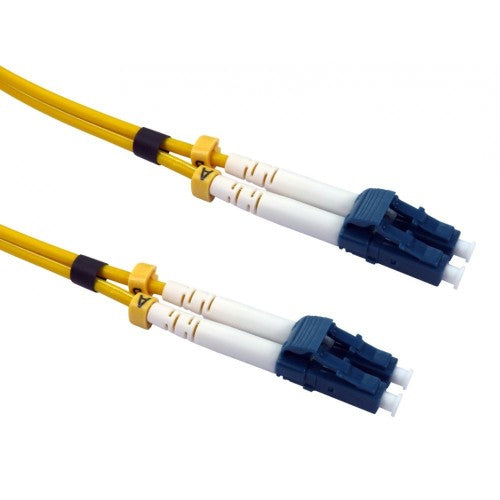

5m OS2 Fibre Optic Cable LC - LC (Single Mode)
The cables have LC to LC connectors, a yellow Low Smoke Zero Halogen jacket and 9µm fibre core with 125µm cladding.
Description
Fibre optic cables use glass threads (fibres) to transmit data. These fibres transmit the data by using modulated light waves. Fibre cables are popular because they have a much greater bandwidth than the standard copper networking cables.The cables have LC to LC connectors, a yellow Low Smoke Zero Halogen jacket and 9µm fibre core with 125µm cladding.
Specifications
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 5 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Doesn't contain | Halogen |
| Features | |
| Fibre optic type | OS2 |
| Return loss | 50 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Single-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable length | 5 m |
| Full duplex | Yes |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Insertion loss | 0.3 dB |
| Data transfer rate | 10 Gbit/s |
| Wavelengths supported | 1310,1550 nm |
| Product colour | Yellow |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector polish type | UPC |
| Cable shape | Round |
| Data transmission | |
| Data transfer rate | 10 Gbit/s |
| Weight & dimensions | |
| Cable length | 5 m |
| Cable diameter | 3 mm |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
