Description
8MP Sony super-low-light, Full HD 1920 x 1080, WDR, 36x zoom (12x optical), PTZ, SmartFrame, WDR Enterprise-Grade Imaging, HDMI, USB 3.1 Type-B, RS232 in/out,, DC 12V, RJ45 and POE+

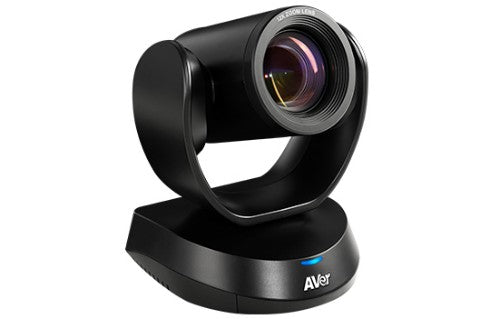

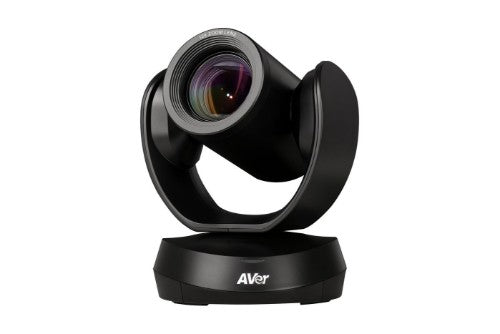

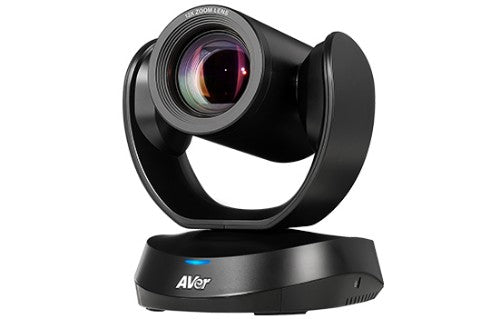

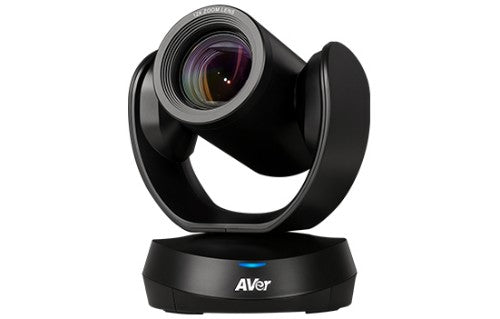

The AVer CAM520 Pro3 is extremely versatile, offering users a 36X total zoom PTZ camera, upgraded AVer SmartFrame, Preset Framing, and a Sony WDR Sensor. In addition, 3-way outputs — including an HDMI connection — deliver more streaming options. But what makes the CAM520 Pro3 truly special is Smart Composition, an embedded AI function that quickly captures meeting participants’ images to facilitate productive video conferences in mid-to-large meeting rooms.
Master the Details with a 36X* Total Zoom Lens and Boost Your Business
Create error-free meetings with the CAM520 Pro3 PTZ lens. Capture wide shots with an 80° diagonal field of view, and focus on presenters, attendees, content on whiteboards, or physical objects with flexible pan and tilt controls. Powerfully handle every detail with a 12X optical lens and a 36X* total zoom. Additionally, the CAM520 Pro3 uses 24X lossless zoom to deliver outstanding clarity to remote participants, making it the ideal conferencing camera for mid-to-large rooms!
Accurately Capture Attendees with AVer Smart Composition to Access Layout Flexibility
The CAM520 Pro3 is one of the first PTZ cameras in the video conferencing industry to include a Smart Composition function. Smart Composition uses an AI algorithm to automatically crop each participant’s face or body in a perfect frame. This is a click-to-play feature that doesn’t require any software to set up! Smartly integrate headshots and half-body views, and smoothly convert from an individual visual to a group image. The CAM530 Pro3 delivers high-definition views of participants for stress-free meeting setups and ultimate productivity.
More Efficiency and Security with Upgraded AVer SmartFrame
With enhanced SmartFrame, AVer’s CAM520 Pro3 elevates your meeting efficiency and safety. This AI technology automatically focuses on participants, working effortlessly from an impressive distance of up to 7 meters away — even when people are wearing masks!
The CAM520 Pro3 also provides a Preset Framing mode that efficiently follows presenters through preset areas. By setting multiple preset viewing areas, you can make the camera automatically shift as the presenter moves without any manual control!
HDMI Enables Dual Display and 3-Way Output, Creating Diverse Display Options
Simultaneously presenting in 1080p/60fps via HDMI and USB 3.1 streaming or RTSP/RTMP H.264 broadcasting, the CAM520 Pro3 lets you use a 2nd display for virtual meetings. These connection options allow you to create seamless hybrid meeting experiences for your business.
Enjoy Enterprise-Grade Imaging with No Limits
The CAM520 Pro3 provides lifelike meetings even in in high-contrast backlight environments — such as meeting rooms with too much sunlight pouring in. By applying its Sony sensor and advanced image-tuning algorithm, the CAM520 Pro3 automatically refines highlights, shadows, and white balance. Furthermore, with AVer Virtual Streaming technology, you can use the CAM520 Pro3 as a video source for virtual meetings through a single Ethernet connection. Additionally, a PoE+ port streamlines the setup process and reduces installation expenses. You deserve to experience enterprise-grade imaging in every meeting.
Key Features
- Full HD 1080p
- Smart Composition
- 36X Total Zoom Presents Every Detail
- SmartFrame
- WDR Enterprise-Grade Imaging
- HDMI Enables Dual Display and 3-Way Output
Description
Professional USB 3.1 Conferencing Camera for Mid-to-Large RoomsThe AVer CAM520 Pro3 is extremely versatile, offering users a 36X total zoom PTZ camera, upgraded AVer SmartFrame, Preset Framing, and a Sony WDR Sensor. In addition, 3-way outputs — including an HDMI connection — deliver more streaming options. But what makes the CAM520 Pro3 truly special is Smart Composition, an embedded AI function that quickly captures meeting participants’ images to facilitate productive video conferences in mid-to-large meeting rooms.
Master the Details with a 36X* Total Zoom Lens and Boost Your Business
Create error-free meetings with the CAM520 Pro3 PTZ lens. Capture wide shots with an 80° diagonal field of view, and focus on presenters, attendees, content on whiteboards, or physical objects with flexible pan and tilt controls. Powerfully handle every detail with a 12X optical lens and a 36X* total zoom. Additionally, the CAM520 Pro3 uses 24X lossless zoom to deliver outstanding clarity to remote participants, making it the ideal conferencing camera for mid-to-large rooms!
Accurately Capture Attendees with AVer Smart Composition to Access Layout Flexibility
The CAM520 Pro3 is one of the first PTZ cameras in the video conferencing industry to include a Smart Composition function. Smart Composition uses an AI algorithm to automatically crop each participant’s face or body in a perfect frame. This is a click-to-play feature that doesn’t require any software to set up! Smartly integrate headshots and half-body views, and smoothly convert from an individual visual to a group image. The CAM530 Pro3 delivers high-definition views of participants for stress-free meeting setups and ultimate productivity.
More Efficiency and Security with Upgraded AVer SmartFrame
With enhanced SmartFrame, AVer’s CAM520 Pro3 elevates your meeting efficiency and safety. This AI technology automatically focuses on participants, working effortlessly from an impressive distance of up to 7 meters away — even when people are wearing masks!
The CAM520 Pro3 also provides a Preset Framing mode that efficiently follows presenters through preset areas. By setting multiple preset viewing areas, you can make the camera automatically shift as the presenter moves without any manual control!
HDMI Enables Dual Display and 3-Way Output, Creating Diverse Display Options
Simultaneously presenting in 1080p/60fps via HDMI and USB 3.1 streaming or RTSP/RTMP H.264 broadcasting, the CAM520 Pro3 lets you use a 2nd display for virtual meetings. These connection options allow you to create seamless hybrid meeting experiences for your business.
Enjoy Enterprise-Grade Imaging with No Limits
The CAM520 Pro3 provides lifelike meetings even in in high-contrast backlight environments — such as meeting rooms with too much sunlight pouring in. By applying its Sony sensor and advanced image-tuning algorithm, the CAM520 Pro3 automatically refines highlights, shadows, and white balance. Furthermore, with AVer Virtual Streaming technology, you can use the CAM520 Pro3 as a video source for virtual meetings through a single Ethernet connection. Additionally, a PoE+ port streamlines the setup process and reduces installation expenses. You deserve to experience enterprise-grade imaging in every meeting.
Specifications
| Camera | |
|---|---|
| Megapixel (approx.) | 8 MP |
| Sensor type | Sony |
| Optical zoom | 12x |
| Digital zoom | 24x |
| Combined zoom | 36x |
| Focal length range | 3.9 - 46.8 mm |
| Field of view (FOV) angle | 80.5° |
| White balance | Auto, Manual |
| Closest focusing distance | 1 m |
| Horizontal field of view | 72.8° |
| Noise reduction | Yes |
| PTZ control | Yes |
| Aspect ratio | 4:3, 16:9 |
| Aperture range (F-F) | 1.8 - 2.8 |
| Number of camera presets | 10 |
| Network streaming | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Light exposure modes | Auto |
| Vertical field of view | 44.1° |
| Flip & mirror | Yes |
| PTZ protocols | Pelco-P/D, UVC, VISCA |
| Camera type | Single camera |
| Zoom capability | Yes |
| Face tracking | Yes |
| Video | |
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| Video formats supported | H.264, M-JPEG, NV12, YUV, YUY2 |
| Supported graphics resolutions | 320 x 180, 320 x 240, 424 x 240, 480 x 360, 640 x 360, 640 x 480 (VGA), 800 x 448, 800 x 600 (SVGA), 848 x 480, 960 x 540, 1280 x 720 (HD 720), 1280 x 960, 1600 x 900, 1920 x 1080 (HD 1080) |
| HD type | Full HD |
| Design | |
| Product colour | Black |
| Mounting type | Stand/Wall mounting |
| Tilt angle range | -30 - 90° |
| Pan range | -170 - 170° |
| LED indicators | Status |
| Country of origin | Taiwan |
| Web-based management | Yes |

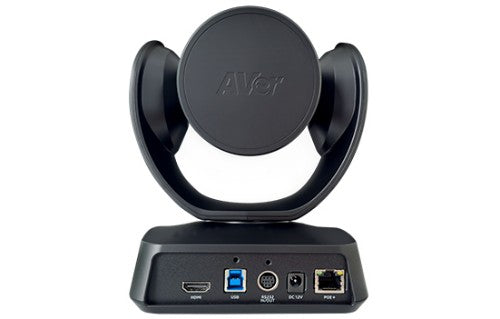

| Ports & interfaces | |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| HDMI version | 1.4 |
| VISCA input ports | 1 |
| DIN connector | Yes |
| DIN connector type | 9-pin |
| Power | |
| DC input voltage | 12 V |
| Input current | 5 A |
| Power source type | DC |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Technical details | |
| Harmonized System (HS) code | 8517691000 |
| Warranty period | 3 year(s) |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7 |
| Mac operating systems supported | Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Minimum processor family | Core i5 |
| Minimum processor speed | 3.2 GHz |
| Minimum processor | Intel Core i5-4460 |
| Minimum RAM | 8000 MB |
| Audio | |
| Noise reduction | Yes |
| Number of microphone arrays | 2 |
| Protocols | |
| Supported network protocols | RTSP, RTMP |
| Networking standards | IEEE 802.3at |
| Network | |
| Supported network protocols | RTSP, RTMP |
| Networking standards | IEEE 802.3at |
| Network streaming | Yes |
| Streaming capability | Yes |
| Packaging content | |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | DIN 8 to D-Sub 9, USB |
| AC adapter included | Yes |
| Remote control batteries included | Yes |
| USB cable length | 5 m |
| Power cable length | 3 m |
| Power supply included | Yes |
| Screws included | Yes |
| Mounting brackets included | Yes |
| Packaging content | Speakerphone, QR code card, 1/4" tripod screw |
| Performance | |
| Remote control function | Yes |
| Remote control type | IR |
| Tripod mounting supported | Yes |
| Plug and Play | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Certification | Zoom, ClickShare |
| Live video preview | Yes |
| Auto framing | Yes |
| Logistics data | |
| Products per pallet | 60 pc(s) |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 8517691000 |
| Weight & dimensions | |
| Width | 253 mm |
| Depth | 253 mm |
| Height | 346 mm |
| Weight | 5.8 kg |
| Remote control dimensions (W x H x D) | 200 x 50 x 21 mm |
| Remote control weight | 90 g |
| Packaging data | |
| Package width | 518 mm |
| Package depth | 264 mm |
| Package height | 359 mm |
| Package weight | 12.2 kg |
