LAN, PoE, 10/100/1000Mbps, 48VDC, IEEE802.3, IEEE802.3/u/ab/af
Key Features
- IEEE 802.3af compliant

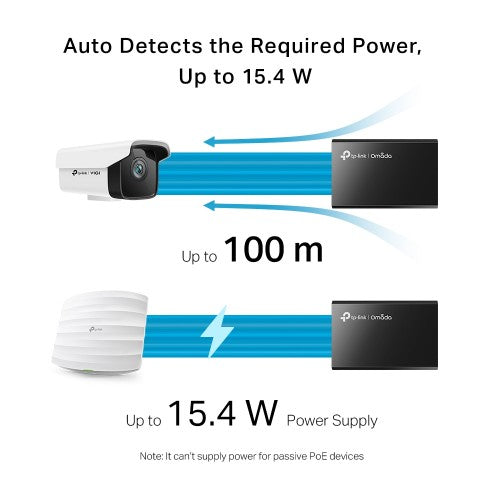

- Auto-determine the necessary power requirements
- Gigabit speed support
- Plug-and-Play, no configuration required
Description

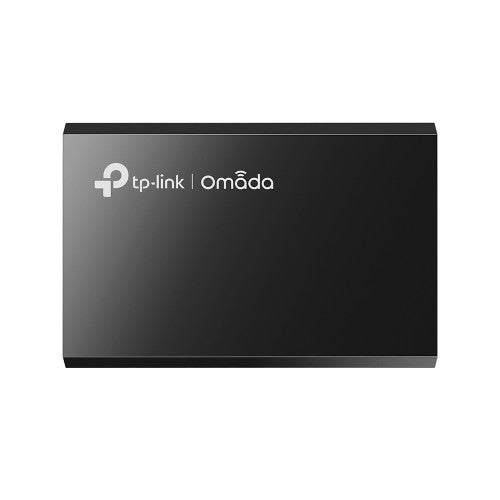

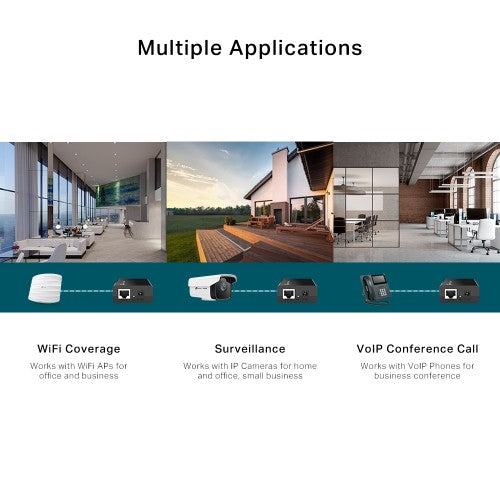

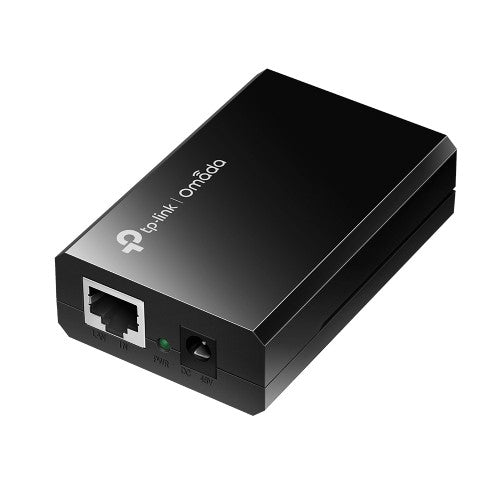

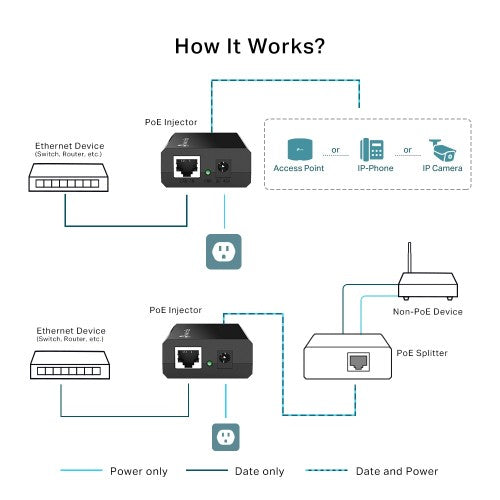

The PoE Injector POE150S (TL-POE150S) fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Specifications
| Network |
|---|
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Power over Ethernet (PoE) |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Cabling technology |
10/100/1000 |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Features |
|---|
| Plug and Play |
Yes |
| Maximum operating distance |
100 m |
| Product colour |
Black |
| LED indicators |
Yes |
| Auto-negotiation |
Yes |
| Auto-sensing |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |

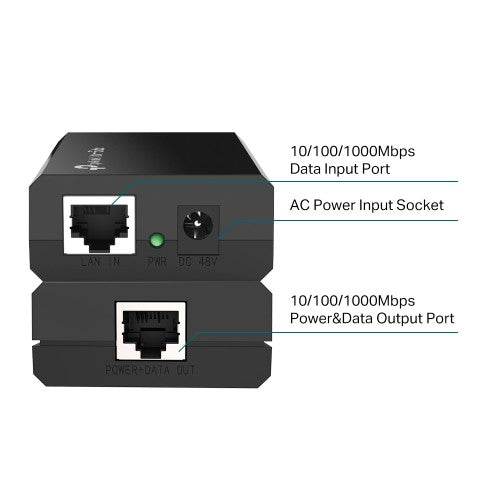

| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Power |
|---|
| Input voltage |
48 V |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
80.8 mm |
| Depth |
54 mm |
| Height |
24 mm |
| Package weight |
350 g |
| Package depth |
198 mm |
| Package width |
65 mm |
| Package height |
65 mm |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Number of products included |
1 pc(s) |
| Packaging data |
|---|
| Package weight |
350 g |
| Package depth |
198 mm |
| Package width |
65 mm |
| Package height |
65 mm |
| Technical details |
|---|
| Number of products included |
1 pc(s) |
| Package width |
65 mm |
| Package height |
65 mm |
| Power over Ethernet (PoE) |
Yes |
| Input voltage |
48 V |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Fast Ethernet, Gigabit Ethernet |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Indication |
|---|
| LED indicators |
Yes |
