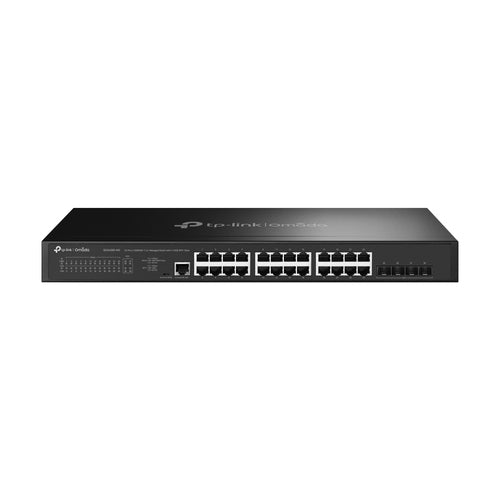

24× 10/100/1000Mbps/2.5Gbps RJ45, 4× 10G SFP+ Slots, Micro-USB/RJ45, 200 Gbps, 32 K MAC, 9 KB Jumbo, 440×180×44 mm
Key Features
- 24× 2.5 Gbps RJ45 ports
- 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity
- 200 Gbps switching capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Specifications
| Management features |
|---|
| ARP inspection |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| System event log |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| MIB support |
Yes |
| Switch layer |
L2+ |
| Configuring Location Settings (CLI) |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Console port |
RJ-45/Micro-USB |
| Power connector |
AC-in jack |
| 2.5G Ethernet (copper) ports quantity |
24 |
| Network |
|---|
| Active link detection |
Yes |
| Networking standards |
IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Head-of-line (HOL) blocking |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Link aggregation |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
Yes |
| Policy-based routing |
Yes |
| Virtual LAN features |
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IPv6 routes |
48 |
| IPv4 routes |
48 |
| IGMP snooping |
Yes |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| IPv6 FIB entries |
100 |
| IPv4 FIB entries |
100 |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Number of static routes |
48 |
| Packet buffer memory |
16 MB |
| MAC address table |
32000 entries |
| Switching capacity |
200 Gbit/s |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
148.8 Mpps |
| Multicast Listener Discovery (MLD) snooping |
Yes |
| Security |
|---|
| Loop protection |
Yes |
| IP-MAC-Port binding |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL support |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Authentication type |
AAA, RADIUS, TACACS+ |
| DHCP features |
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Multicast Listener Discovery (MLD) snooping |
Yes |
| Protocols |
|---|
| Management protocols |
SNMP v1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| IPv6 FIB entries |
100 |
| IPv4 FIB entries |
100 |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design |
|---|
| Form factor |
1U |
| Product colour |
Black |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Number of fans |
1 fan(s) |
| Certification |
CE, FCC, RoHS |
| Power |
|---|
| Power consumption (max) |
45.1 W |
| Power supply included |
Yes |
| AC input voltage |
100 - 240 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power connector |
AC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Heat dissipation |
154.38 BTU/h |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Virtual LAN features |
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| IPv4 & IPv6 features |
|---|
| IPv6 FIB entries |
100 |
| IPv4 FIB entries |
100 |
| IPv4 & IPv6 features |
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Performance |
|---|
| Packet buffer memory |
16 MB |
| Technical details |
|---|
| Form factor |
1U |
| Product colour |
Black |
| Rack mounting |
Yes |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Memory |
|---|
| Packet buffer memory |
16 MB |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Indication |
|---|
| LED indicators |
Yes |
| Mobile network |
|---|
| GARP VLAN Registration Protocol (GVRP) |
Yes |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
