Description

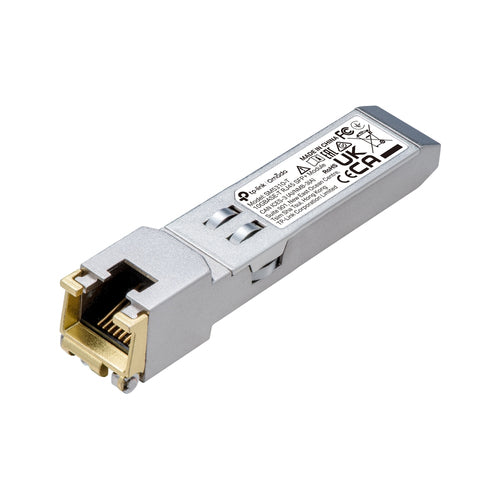

10G BASE-T RJ45 SFP+, 67.4x13.75x13.8 mm 10G BASE-T RJ45 SFP+ Module
Key Features
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
- Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Fully Metallic Enclosure for Low EMI
Description
10G BASE-T RJ45 SFP+ Module
- Support 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, and 100BASE-TX
- Transmit data up to 30m* at 10 Gbps (UTP cat.6a or above)
- Support DDM (Temperature and Voltage)
- Hot-Pluggable SFP+ Footprint Features
- Support TX Disable function
- Commercial Product Operating Temperature Range: 0-70C
- Fully Metallic Enclosure for Low EMI
What This Product Does
TL-SM5310-T provides superior 10G performance for an easy and quick connection between your SFP+ interface and RJ45 port. It covers up to 30m* at 10 Gbps (UTP cat.6a or above). A plug-and-play design makes for easy deployment, no technician needed. High-quality metal casing ensures strength and reliability for a long time, maintaining a stable connection in a wide range of environments.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Copper |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz |
| Maximum transfer distance | 100 m |
| Maximum data transfer rate | 10300 Mbit/s |
| Interface type | RJ-45 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Copper ethernet cabling technology | 10GBASE |
| Easy to install | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Features | |
| Easy to install | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Hot-Plug support | Yes |
| Form factor | SFP+ |
| Power | |
| Input voltage | 3.3 V |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz |
| Maximum data transfer rate | 10300 Mbit/s |
| Interface type | RJ-45 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Weight & dimensions | |
| Width | 67.4 mm |
| Depth | 13.8 mm |
| Height | 13.8 mm |
| Package depth | 122.5 mm |
| Package width | 81.5 mm |
| Package height | 38.5 mm |
| Package weight | 2.87 kg |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 81.5 mm |
| Package height | 38.5 mm |
| Hot-Plug support | Yes |
| Maximum transfer distance | 100 m |
| Ethernet LAN | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Packaging data | |
| Package depth | 122.5 mm |
| Package width | 81.5 mm |
| Package height | 38.5 mm |
| Package weight | 2.87 kg |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
