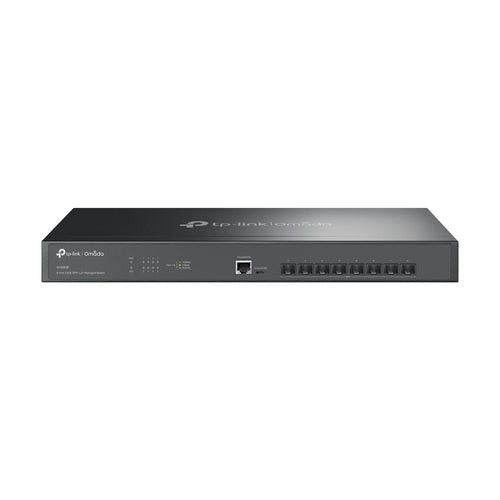

8× 10GE SFP+ Slots, 1× RJ45 Console, 1× Micro-USB Console, 160 Gbps, 32 K MAC, 9 KB Jumbo, 440×180×44 mm
Key Features
- 8× 10 Gbps SFP+ slots enable high-bandwidth connectivity
- 160 Gbps Switching Capacity
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Fanless design for silent operation
- Durable metal casing and rack-mountable design
Description
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Specifications
| Management features |
|---|
| Traffic classification |
Yes |
| ARP inspection |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| System event log |
Yes |
| Quality of Service (QoS) support |
Yes |
| Multicast support |
Yes |
| MIB support |
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Switch layer |
L2/L3 |
| Configuring Location Settings (CLI) |
Yes |
| Cloud-managed |
Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity |
8 |
| Basic switching RJ-45 Ethernet ports quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
No |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Console port |
RJ-45/micro-USB |
| Power connector |
DC-in jack |
| Network |
|---|
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x |
| Head-of-line (HOL) blocking |
Yes |
| VLAN support |
Yes |
| Spanning tree protocol |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| Number of VLANs |
4000 |
| Link aggregation |
Yes |
| IP routing |
Yes |
| Flow control support |
Yes |
| Broadcast storm control |
Yes |
| 10G support |
Yes |
| Virtual LAN features |
Private VLAN, Protocol-based VLAN, Voice VLAN |
| IGMP snooping |
Yes |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| Packet buffer memory |
16 MB |
| MAC address table |
32000 entries |
| Switching capacity |
160 Gbit/s |
| Number of queues |
8 |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
119.04 Mpps |
| Number of VLANs |
4000 |
| Multicast Listener Discovery (MLD) snooping |
Yes |
| Security |
|---|
| Loop protection |
Yes |
| IP-MAC-Port binding |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication |
| Static port security |
Yes |
| SSH/SSL support |
Yes |
| Security algorithms |
HTTPS, SSH, SSH-2, SSL/TLS |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Queue scheduling algorithms |
SP, WRR+SP, Weighted Round Robin (WRR) |
| Authentication type |
AAA, TACACS+ |
| DHCP features |
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features |
|---|
| Multicast support |
Yes |
| Multicast Listener Discovery (MLD) snooping |
Yes |
| Protocols |
|---|
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| IPv4 & IPv6 features |
IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Design |
|---|
| Product colour |
Black |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Certification |
CE, FCC, RoHS |
| Power |
|---|
| Power consumption (max) |
15.46 W |
| Power supply included |
Yes |
| AC input voltage |
220 V |
| AC input frequency |
50/60 Hz |
| Power source |
AC |
| Power connector |
DC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) |
No |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Heat dissipation |
52.75 BTU/h |
| Virtual LAN features |
|---|
| VLAN support |
Yes |
| Number of VLANs |
4000 |
| Virtual LAN features |
Private VLAN, Protocol-based VLAN, Voice VLAN |
| Weight & dimensions |
|---|
| Width |
440 mm |
| Depth |
180 mm |
| Height |
44 mm |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Manual |
Yes |
| Cables included |
AC |
| Packaging data |
|---|
| Package type |
Box |
| Rack mount kit |
Yes |
| Quick start guide |
Yes |
| Manual |
Yes |
| Cables included |
AC |
| IPv4 & IPv6 features |
|---|
| IPv4 & IPv6 features |
IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Performance |
|---|
| Packet buffer memory |
16 MB |
| Technical details |
|---|
| Product colour |
Black |
| Rack mounting |
Yes |
| Memory |
|---|
| Packet buffer memory |
16 MB |
| Certificates |
|---|
| Certification |
CE, FCC, RoHS |
| Indication |
|---|
| LED indicators |
Yes |
