Description

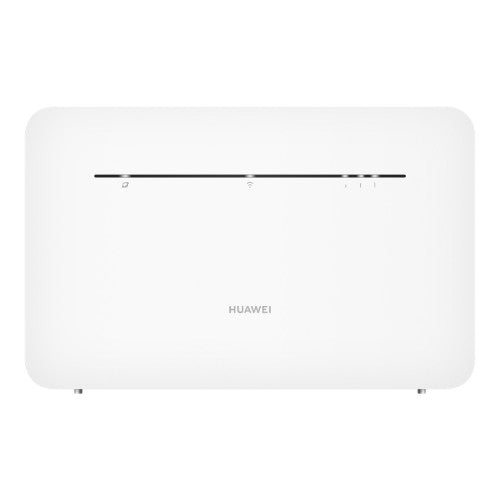

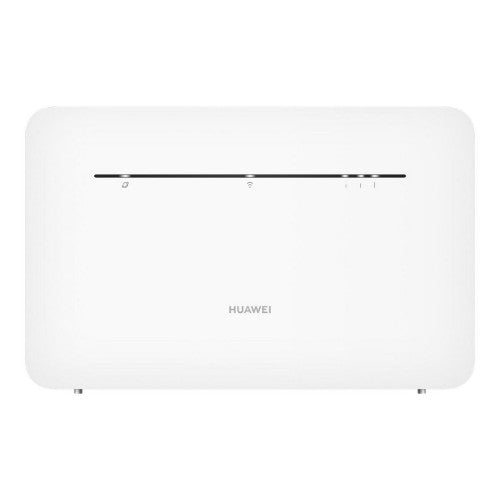

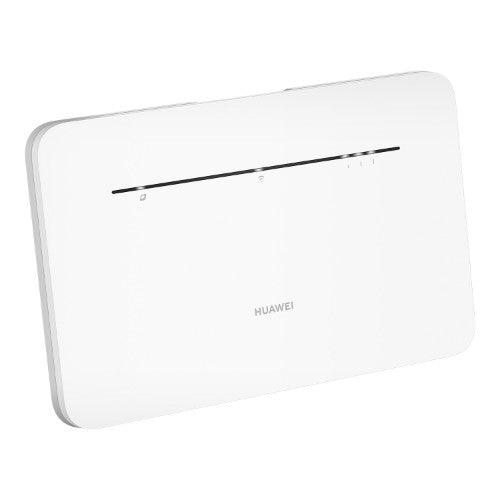

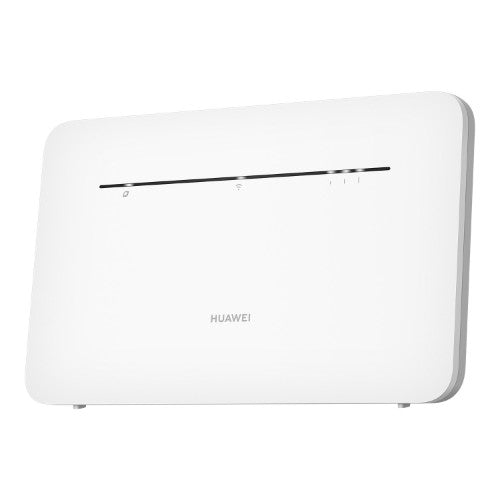

Huawei B535-235a, Wi-Fi 5 (802.11ac), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, 4G, White, Tabletop router
Description
Huawei B535-235a. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Mobile network generation: 4G, SIM card type: NanoSIM. Number of data streams: 2x2. Security algorithms: WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP, WPA3-SAESpecifications
| Ethernet LAN features | |
|---|---|
| Ethernet WAN | Yes |
| Ethernet LAN | Yes |
| Mobile network | |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| Mobile network generation | 4G |
| Short Message Service (SMS) | Yes |
| 4G LTE category | 7 |
| SIM card type | NanoSIM |
| Network | |
| Short Message Service (SMS) | Yes |
| Network address translation (NAT) | Yes |
| Ethernet LAN | Yes |
| SSID-based VLAN assignment | Yes |
| Dynamic DNS (DDNS) | Yes |
| Protocols | |
| DMZ support | Yes |
| Supported network protocols | IPv6/IPv4 |
| Performance | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Internal memory | 256 MB |
| Flash memory | 256 MB |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| WAN connection | |
| Ethernet WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 867 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (first band) | 400 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ports & interfaces | |
| USB port | No |
| RJ-11 ports quantity | 1 |

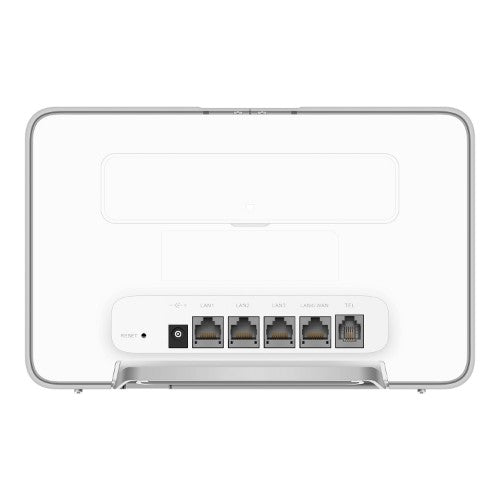

| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| MIMO | Yes |
| Number of data streams | 2x2 |
| Security | |
| Security algorithms | WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP, WPA3-SAE |
| Network address translation (NAT) | Yes |
| MAC address filtering | Yes |
| Firewall | Yes |
| DMZ support | Yes |
| DDoS protection | Yes |
| Design | |
| Product type | Tabletop router |
| Product colour | White |
| Software | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Other features | |
| Internal memory | 256 MB |
| Flash memory | 256 MB |
| Antenna | |
| Antenna design | Internal & external |
| Antenna connector type | SMA |
| Features | |
| Internal memory | 256 MB |
| Flash memory | 256 MB |
| Power | |
| Power source type | DC |
| Power consumption (typical) | 24 W |
| Output voltage | 12 V |
| Output current | 2 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Weight & dimensions | |
| Width | 219 mm |
| Weight | 330 g |
| Height | 138 mm |
| Depth | 66 mm |
| Packaging data | |
| Quick start guide | Yes |
| Cables included | LAN (RJ-45), Phone (RJ-11) |
| AC adapter included | Yes |
| Number of products included | 1 pc(s) |
