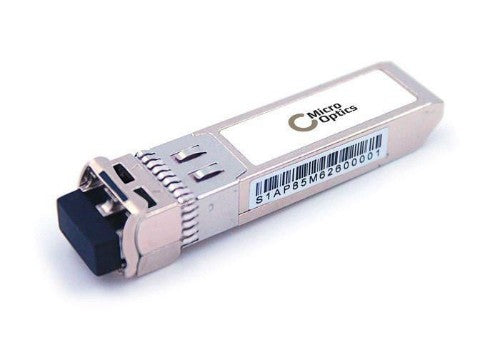

SFP+ 10 Gbps, MMF, 300 m, LC, DDMI support, Compatible with Cisco SFP-10G-SR
Key Features
- **100% Cisco Compatible**
Description
Micro-Optics products provide seamless connectivity for all your current and future network hardware needs.
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Auto MDI/MDI-X |
Yes |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Cabling technology |
10GBASE-SR |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Multi-mode fiber (MMF) supported |
Yes |
| SFP transceiver standard |
SR |
| Hot-Plug support |
Yes |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Hot-Plug support |
Yes |
| Certification |
MSA |
| Certificates |
|---|
| Certification |
MSA |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| Storage relative humidity (H-H) |
10 - 85% |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Fiber optic connector |
LC |
| Cabling technology |
10GBASE-SR |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Weight & dimensions |
|---|
| Width |
13.4 mm |
| Depth |
56.5 mm |
| Height |
8.5 mm |
| Technical details |
|---|
| Hot-Plug support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Fiber cable diameters supported (core/cladding) |
50/125,62.5/125 µm |
| Cabling technology |
10GBASE-SR |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
