Description

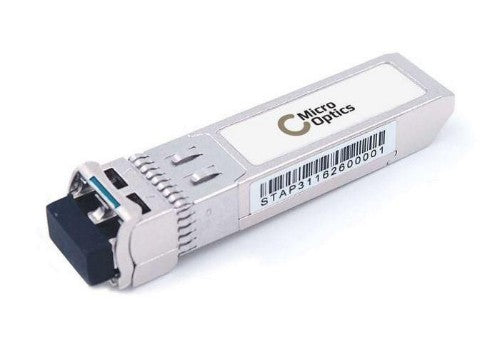

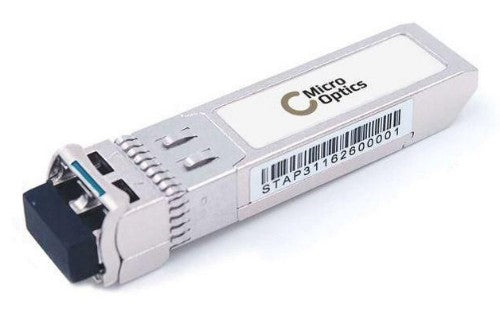

SFP 155 Mbps, SMF, 40 km, LC, DDMI, Compatible with Alcatel-Lucent SFP-100-LC-SM40
Key Features
- **100% Alcatel-Lucent Compatible**
Description
Micro-Optics products provide seamless connectivity for all your current and future network hardware needs.Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Ethernet interface type | Fast Ethernet |
| SFP transceiver standard | EX |
| Fiber ethernet cabling technology | 100BASE |
| Easy to install | Yes |
| Product colour | Stainless steel |
| Plug and Play | Yes |
| Compatible products | SFP-100-LC-SM40 |
| Brand compatibility | Alcatel-Lucent |
| Features | |
| Easy to install | Yes |
| Product colour | Stainless steel |
| Plug and Play | Yes |
| Compatible products | SFP-100-LC-SM40 |
| Brand compatibility | Alcatel-Lucent |
| Form factor | SFP |
| Certification | MSA |
| Certificates | |
| Certification | MSA |
| Compliance certificates | RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Ethernet interface type | Fast Ethernet |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 56 mm |
| Height | 8.5 mm |
| Weight | 30 g |
| Package depth | 100 mm |
| Package width | 60 mm |
| Package height | 30 mm |
| Package weight | 40 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 60 mm |
| Package height | 30 mm |
| Plug and Play | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 40000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Compatible products | SFP-100-LC-SM40 |
| Sustainability compliance | Yes |
| Warranty period | 3 year(s) |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 100 mm |
| Package width | 60 mm |
| Package height | 30 mm |
| Package weight | 40 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Warranty period | 3 year(s) |
