Description
Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails Slim, Space-saving Enclosure with Only 170 mm (6.7 in.) Depth, Ideal for AV, Multimedia and Surveillance Applications, Assembled, Gray RAL 7035
The Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.

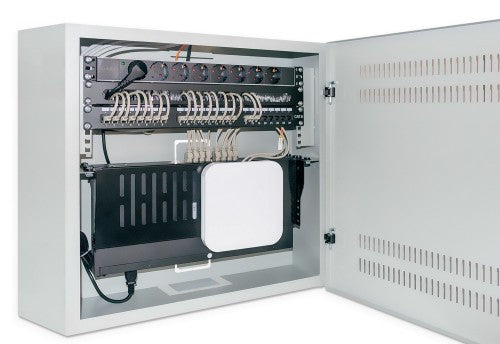

Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be locked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.
Key Features
- Slim, space-saving design for organized, secure housing of network, multimedia, surveillance, audio/video and smart home equipment
- Horizontal 4U 19" rackmount option for PDUs, patch panels and other equipment with a depth up to 170 mm (6.7 in.)
- Vertical 2U 19" rackmount option for network switches and other equipment with a depth up to 280 mm (11 in.)
- Maximum load capacity of 60 kg (132 lbs.)
- Extends only 170 mm (6.7 in.) from the wall
- Sturdy, secure steel housing with antistatic powder coating
- Three-point door lock with two included keys
- Ventilation slots for maximum airflow to keep your equipment cool and prevent overheating
- IP20-rated protection

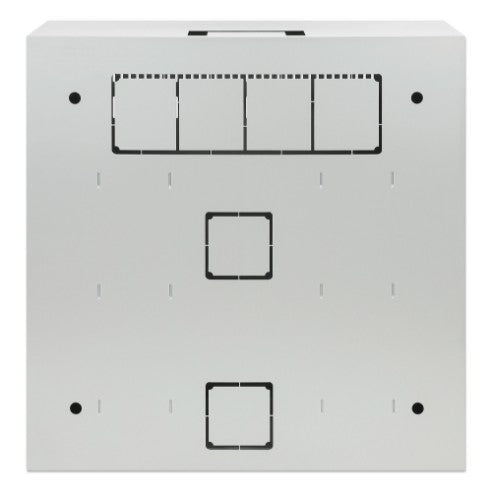

- Pre-punched cable entry openings on top, rear and bottom
- Ships fully assembled for quick installation
Description
Slim, space-saving wall-mount network enclosure rack for AV multimedia equipment and moreThe Low-Profile 19" Wall Mount Cabinet with 4U Horizontal and 2U Vertical Rails from Intellinet Network Solutions is a slim rack enclosure for residential and SOHO environments. It organizes and secures network equipment from multimedia, surveillance, audio/video and home automation while saving valuable space with its hybrid of two mounting options.
Thanks to its compact depth, it only extends 170 mm (6.7 in.) from the wall, but its vertical mounting option means you can install even bulky equipment like network switches with a depth up to 280 mm (11 in.). The sturdy IP20-rated steel housing with antistatic powder coating can be locked with a secure three-point door lock to prevent damage, tampering or theft. It carries a load capacity up to 60 kg (132 lbs.), and ventilation slots ensure maximum airflow to keep your equipment cool. Your structured cabling can enter through pre-punched holes on the top, rear or bottom. Its fully assembled shipping condition saves you the trouble of putting it together.
Specifications
| Weight & dimensions | |
|---|---|
| Package depth | 555 mm |
| Package width | 545 mm |
| Package height | 205 mm |
| Width | 550 mm |
| Depth | 170 mm |
| Height | 540 mm |
| Weight | 8.5 kg |
| Maximum weight capacity | 60 kg |
| Packaging content | |
| Nuts included | Yes |
| Number of nuts | 12 |
| Screws included | Yes |
| Number of screws | 12 |
| Number of washers included | 12 |
| Features | |
| Key lock | Yes |
| Frame type | Closed |
| Product design | 4-post |
| Rack capacity | 2U/4U |
| International Protection (IP) code | IP20 |
| Front door construction | Steel |
| Front door key lock | Yes |
| Type | Wall mounted rack |
| Maximum weight capacity | 60 kg |
| Material | Steel |
| Product colour | Grey |
| Ventilation holes | Yes |
| Packaging data | |
| Nuts included | Yes |
| Number of nuts | 12 |
| Package depth | 555 mm |
| Package width | 545 mm |
| Package height | 205 mm |
| Screws included | Yes |
| Number of screws | 12 |
| Number of washers included | 12 |
| Technical details | |
| Package width | 545 mm |
| Package height | 205 mm |
| Type | Wall mounted rack |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 2U/4U |
| International Protection (IP) code | IP20 |
| Colour | |
| Product colour | Grey |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 560 mm |
| Master (outer) case length | 560 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 9.5 kg |
| Products per master (outer) case | 1 pc(s) |
