Description
3 Port HDMI 8K60 Switch

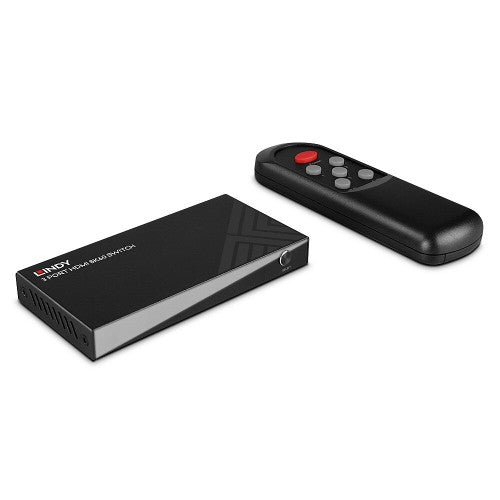

The Lindy 3 Port HDMI 8K60 switch is a compact, high quality solution for effortlessly switching between 3 HDMI source devices when connected to a single display.
Supporting HDMI 48G signals, this switch allows for the transmission of detailed 8K Ultra High Speed resolutions, while additional support for HDR ensures video content features greater contrasts and a much wider colour gamut. This switch is perfect for a premium residential setup, eye-catching digital signage in retail settings or engaging presentations.
This switch also provides efficient, simple switching options for the user, via an included IR remote or push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight. HDCP 2.3 ensures the compatibility with a variety of 8K content from source devices including set top boxes, Graphics cards, Blu-Ray players and 8K HDR Media players.
Key Features

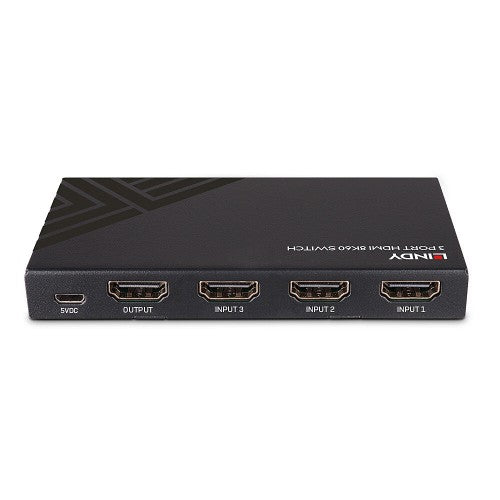

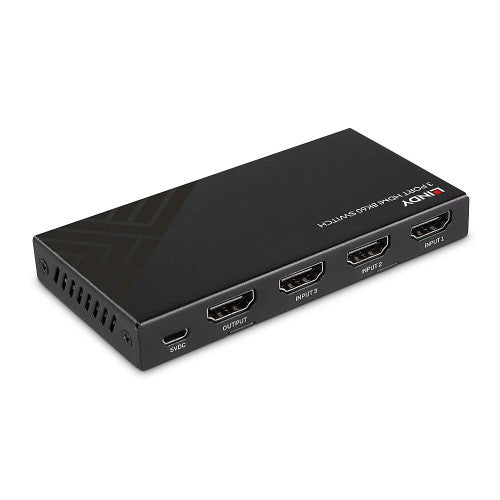

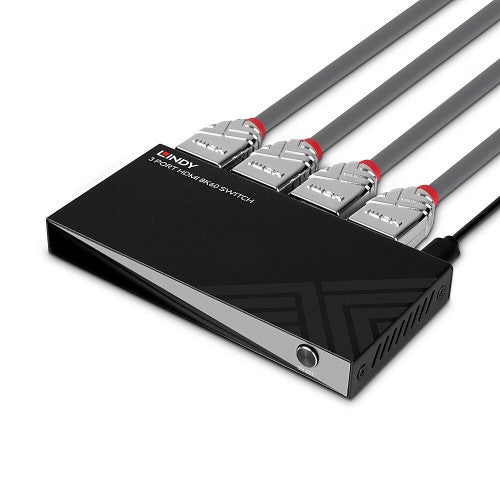

- Switches between 3 HDMI source devices when connected to a single display
- Supports 48G resolutions up to 8K@60Hz, with additional support for HDR

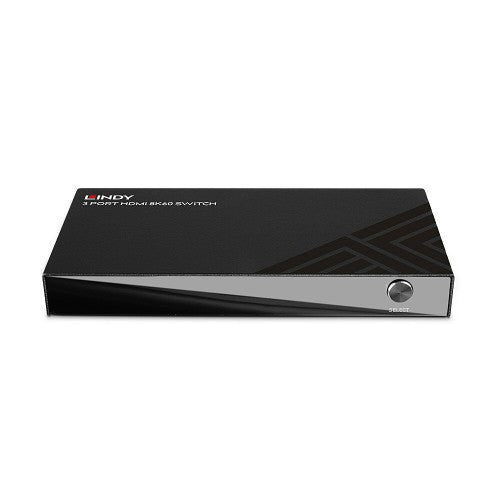

- Flexible control via push button, IR remote
- Compact, minimalist design to ensure no distraction from the display or installation
- 2 year warranty
Description
HDMI switches are reliable solutions for controlling and switching multiple HDMI source devices and outputting to a single display.The Lindy 3 Port HDMI 8K60 switch is a compact, high quality solution for effortlessly switching between 3 HDMI source devices when connected to a single display.
Supporting HDMI 48G signals, this switch allows for the transmission of detailed 8K Ultra High Speed resolutions, while additional support for HDR ensures video content features greater contrasts and a much wider colour gamut. This switch is perfect for a premium residential setup, eye-catching digital signage in retail settings or engaging presentations.
This switch also provides efficient, simple switching options for the user, via an included IR remote or push buttons on the main unit. The switch can also identify the active HDMI source device and automatically switch to this option, providing a useful solution for when the unit is required to be out of sight. HDCP 2.3 ensures the compatibility with a variety of 8K content from source devices including set top boxes, Graphics cards, Blu-Ray players and 8K HDR Media players.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI version | 2.1 |
| HDMI ports quantity | 4 |
| Number of HDMI outputs | 1 |
| HDMI in | 3 |
| USB port type | Micro-USB |
| Features | |
| HD type | 8K Ultra HD |
| Product colour | Black |
| Supported video modes | 4320p |
| Maximum resolution | 7680 x 4320 pixels |
| LED indicators | Yes |
| HDCP | Yes |
| Bandwidth | 48 Gbit/s |
| Audio formats supported | LPCM |
| Audio decoders | DTS-HD, Dolby TrueHD |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | Yes |
| Power | |
| Power requirements | 5VDC 1A |
| Certificates | |
| Certification | California Proposition 65 |
| Weight & dimensions | |
| Width | 112 mm |
| Height | 14 mm |
| Depth | 56 mm |
| Weight | 139 g |
| Package width | 177 mm |
| Package height | 43 mm |
| Package depth | 119 mm |
| Package weight | 305 g |
| Technical details | |
| HD type | 8K Ultra HD |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 112 mm |
| Height | 14 mm |
| Depth | 56 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported video modes | 4320p |
| Maximum resolution | 7680 x 4320 pixels |
| LED indicators | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 4 |
| HDCP | Yes |
| Remote control included | Yes |
| Bandwidth | 48 Gbit/s |
| Audio formats supported | LPCM |
| Audio decoders | DTS-HD, Dolby TrueHD |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Packaging data | |
| Package width | 177 mm |
| Package height | 43 mm |
| Package depth | 119 mm |
| Package weight | 305 g |
| Packaging content | |
| Manual | Yes |
| Remote control included | Yes |
| Cables included | USB Type-A to Micro USB-B |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
