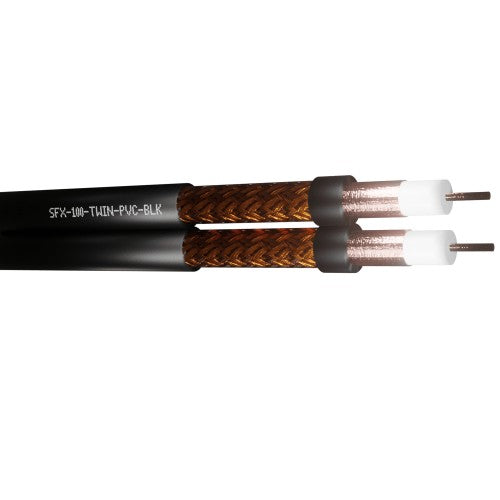

250m SFX100 Coaxial Twin Premium Black PVC
Key Features
- High frequency, low loss cable, designed to carry
- CCTV, TV and Satellite Signals
- Manufactured with gas injected foam granting the
- cable a much better mechanical, electrical and
- ageing performance compared to a solid PE
- dielectric
- Polyvinyl chloride plastic has excellent aging
- properties and will usually exceed a 25-30 year
- service life
- This family of cable contains both a foil and
- braided screen, enhancing performance and
- reducing interference
- Improved performance and protection against fire
Description
Our low loss coaxial cable features a higher level of performance than standard RG cables, due to their protective shielding and copper conductor. The foil and braided screen helps to not only enhance performance, but most importantly reduce interference.
Specifications
| Ports & interfaces |
|---|
| Connector 2 |
No |
| Connector 1 |
No |
| Features |
|---|
| Jacket material |
Polyvinyl chloride (PVC) |
| Jacket thickness |
1.23 mm |
| Conductor material |
Copper |
| Conductor size |
1 mm |
| Insulation material |
Foamed polyethylene |
| Insulation thickness |
1.79 mm |
| Shield material |
Copper/Aluminium |
| Product colour |
Black |
| Impedance |
760 Ω |
| Connector 2 |
No |
| Connector 1 |
No |
| Certification |
CE2014/30/EU,RoHS2 2011/65/EU,LVD 2014/35/EU |
| Cable length |
250 m |
| Technical details |
|---|
| Jacket material |
Polyvinyl chloride (PVC) |
| Product colour |
Black |
| Impedance |
760 Ω |
| Cable length |
250 m |
| Compliance certificates |
CE, RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 80 °C |
| Certificates |
|---|
| Certification |
CE2014/30/EU,RoHS2 2011/65/EU,LVD 2014/35/EU |
