Description

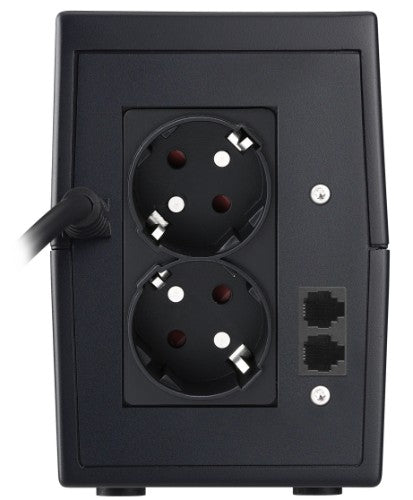

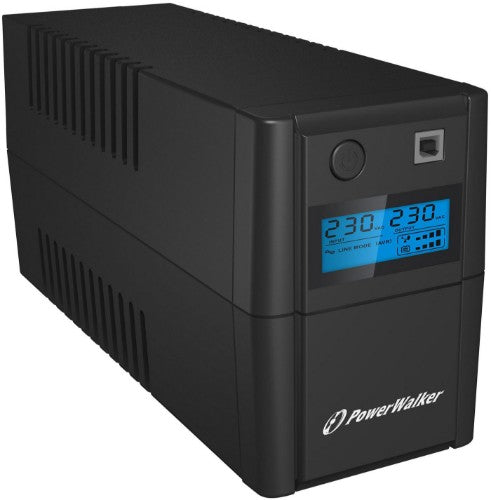

Line-Interactive, 650VA, 360W, Schuko Input, 2 x Schuko Outlet, 1 x 12V/7Ah
The VI SHL Series are equipped with stronger charger to reach 90% of battery capacity in 2-4h. With HID support for USB communication it allows quick and easy setup with any operating system.
Description
PowerWalker VI SHL provides comprehensive protection and high power density in small and economic package. The UPS can be automatically started up without AC power supplied. In addition, this UPS provides RJ-11 surge protection. Equipped with a voltage stabilizer, this UPS will continue providing clean and stable power to connected equipment and is perfect for any home or small office application.The VI SHL Series are equipped with stronger charger to reach 90% of battery capacity in 2-4h. With HID support for USB communication it allows quick and easy setup with any operating system.
Specifications
| Power | |
|---|---|
| Output voltage regulation | 10% |
| Output frequency regulation | 1 Hz |
| Output power factor | 0.55 |
| Output power | 360 W |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 280 V |
| Efficiency | 95% |
| Output power capacity | 0.65 kVA |
| Charging current | 1.2 A |
| Performance | |
| UPS topology | Line-Interactive |
| Automatic Voltage Regulation (AVR) | Yes |
| LED indicators | Yes |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Telephone |
| Features | |
| UPS topology | Line-Interactive |
| Output voltage regulation | 10% |
| Output frequency regulation | 1 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Output power factor | 0.55 |
| Output power | 360 W |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 280 V |
| Efficiency | 95% |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Telephone |
| Output power capacity | 0.65 kVA |
| Input frequency | 50/60 Hz |
| Charging current | 1.2 A |
| Ports & interfaces | |
| Number of type F outputs | 2 |
| AC outlets quantity | 2 AC outlet(s) |
| AC outlet types | Type F |
| USB 2.0 ports quantity | 1 |
| Serial ports quantity | 0 |
| Modem (RJ-11) ports | 2 |
| Battery | |
| Number of batteries supported | 1 |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Battery recharge time | 4 h |
| Typical backup time at half load | 6 min |
| Typical backup time at full load | 0.1 min |
| Charging current | 1.2 A |
| Design | |
| Form factor | Tower |
| LED indicators | Yes |
| Product colour | Black |
| Cooling type | Passive |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Packaging content | |
| Cables included | USB cable |
| Manual | Yes |
| Resource CD | Yes |
| Bundled software | WinPower |
| Cooling | |
| Cooling type | Passive |
| Weight & dimensions | |
| Package width | 139 mm |
| Package depth | 345 mm |
| Package height | 226 mm |
| Weight | 4.4 kg |
| Width | 100 mm |
| Package weight | 4.74 kg |
| Height | 143 mm |
| Depth | 290 mm |
| Packaging data | |
| Cables included | USB cable |
| Resource CD | Yes |
| Manual | Yes |
| Package width | 139 mm |
| Package depth | 345 mm |
| Package height | 226 mm |
| Bundled software | WinPower |
| Package weight | 4.74 kg |
| Logistics data | |
| Products per pallet | 128 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Nominal output voltage | 230 V |
