Description

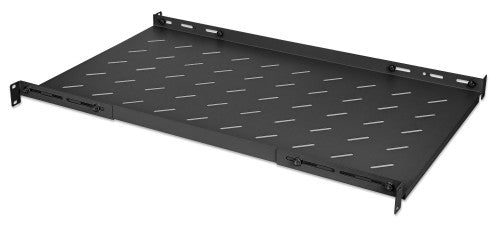

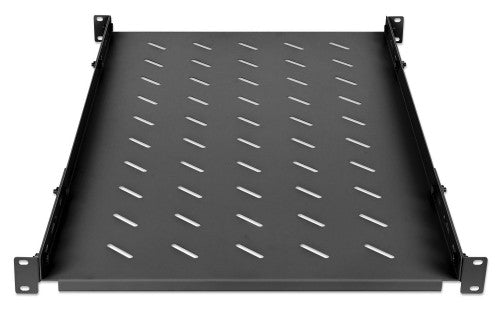

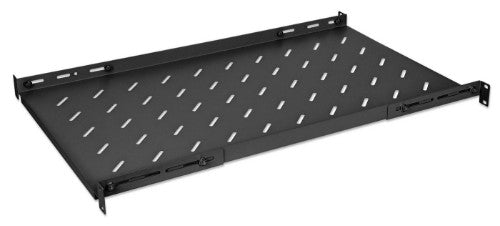

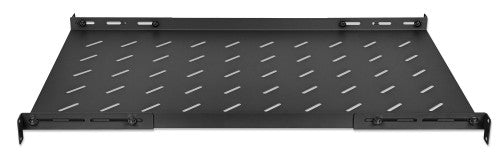

19" Fixed Shelf (adjustable), 1U, 750mm shelf depth, 750 to 950mm adjustable rail depth, Max 20kg, Black, Lifetime warranty
A fixed shelf that mounts to a rack at four points is superior to a cantilever or sliding shelf in terms of stability and load capacity, but it’s usually limited to a particular installation depth. This rack mount shelf from Intellinet Network Solutions overcomes that weakness with variable rails you can adjust to depths between 750 and 950 mm (29.5 to 37.4 in.). As a flexible network accessory, it universally fits Intellinet and other third-party cabinets that are 1000 mm (39.4 in.) deep.
Key Features

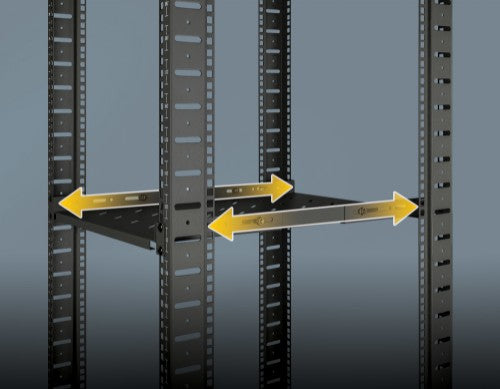

- Fixed shelf with extending rail depth of 750 to 950 mm for flexible installations in cabinets with 1000 mm depth
- Shelf storage area depth 750 mm
- Universal fit for most cabinet and open-frame rack brands
- Maximum load capacity of 20 kg
- 1U installation height
- Sturdy steel sheet with antistatic powder coating
- Perforated for increased airflow to keep your equipment cool and prevent overheating
- Mounting material included
Description
Rack mount shelf with depth-adjustable rails for universal flexibility in 19" network cabinetsA fixed shelf that mounts to a rack at four points is superior to a cantilever or sliding shelf in terms of stability and load capacity, but it’s usually limited to a particular installation depth. This rack mount shelf from Intellinet Network Solutions overcomes that weakness with variable rails you can adjust to depths between 750 and 950 mm (29.5 to 37.4 in.). As a flexible network accessory, it universally fits Intellinet and other third-party cabinets that are 1000 mm (39.4 in.) deep.
Specifications
| Features | |
|---|---|
| Type | Rack shelf |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Maximum weight capacity | 20 kg |
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
| Package weight | 3.9 kg |
| Depth (max) | 95 cm |
| Width | 482.6 mm |
| Weight | 3.2 kg |
| Size (imperial) | 48.3 cm (19") |
| Height | 44.5 mm |
| Depth | 750 mm |
| Maximum weight capacity | 20 kg |
| Packaging data | |
| Package weight | 3.9 kg |
| Technical details | |
| Type | Rack shelf |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Colour | |
| Product colour | Black |
