Description

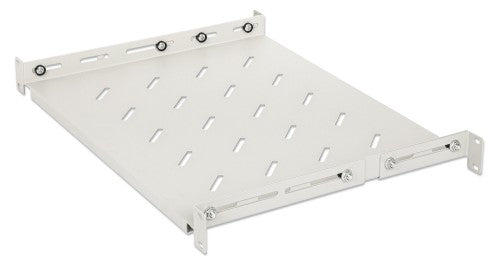

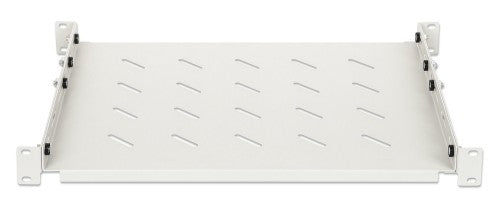

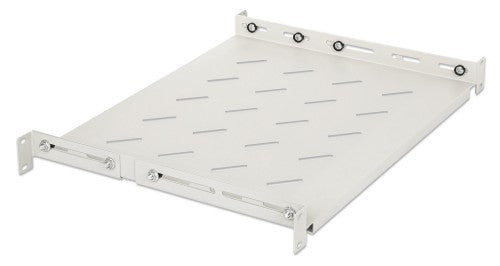

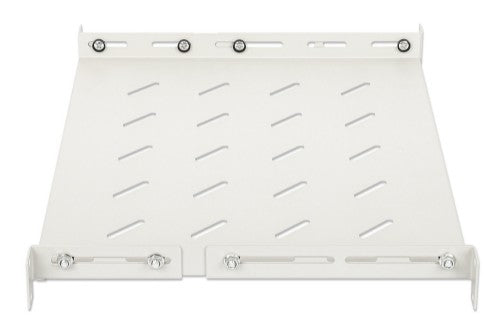

19" Fixed Shelf (adjustable), 1U, 350mm shelf depth, 350 to 550mm adjustable rail depth, Max 20kg, Grey, Lifetime warranty
A shelf with 4-point fixed rack mounting is superior to cantilever and sliding shelves in terms of stability and load capacity, but it’s usually limited to a particular installation depth. This rack mount shelf from Intellinet Network Solutions overcomes that weakness with variable rails you can adjust to depths between 350 and 550 mm (13.8 to 21.7 in.). As a flexible network accessory, it universally fits Intellinet and other third-party cabinets that are 600 mm (23.6 in.) deep.
Key Features

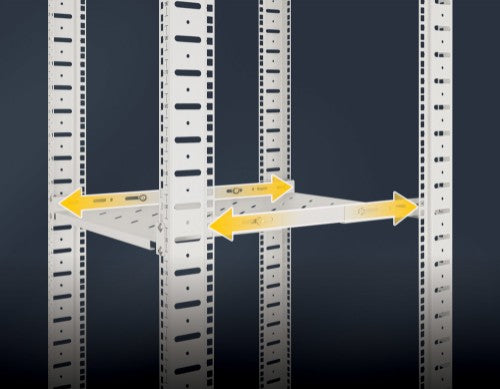

- Fixed shelf with extending rail depth of 350 to 550 mm for flexible installations in cabinets with 600 mm depth
- Shelf storage area depth 350 mm
- Universal fit for most cabinet and open-frame rack brands
- Maximum load capacity of 20 kg
- 1U installation height
- Sturdy steel sheet with antistatic powder coating
- Perforated for increased airflow to keep your equipment cool and prevent overheating
- Mounting material included
Description
Rack mount shelf with depth-adjustable rails for universal flexibility in 19" network cabinetsA shelf with 4-point fixed rack mounting is superior to cantilever and sliding shelves in terms of stability and load capacity, but it’s usually limited to a particular installation depth. This rack mount shelf from Intellinet Network Solutions overcomes that weakness with variable rails you can adjust to depths between 350 and 550 mm (13.8 to 21.7 in.). As a flexible network accessory, it universally fits Intellinet and other third-party cabinets that are 600 mm (23.6 in.) deep.
Specifications
| Features | |
|---|---|
| Type | Rack shelf |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Maximum weight capacity | 20 kg |
| Product colour | White |
| Housing material | Steel |
| Weight & dimensions | |
| Package weight | 2.1 kg |
| Depth (max) | 55 cm |
| Width | 482.6 mm |
| Weight | 1.7 kg |
| Size (imperial) | 48.3 cm (19") |
| Height | 44.5 mm |
| Depth | 350 mm |
| Maximum weight capacity | 20 kg |
| Packaging data | |
| Package weight | 2.1 kg |
| Technical details | |
| Type | Rack shelf |
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 1U |
| Colour | |
| Product colour | White |
