Description

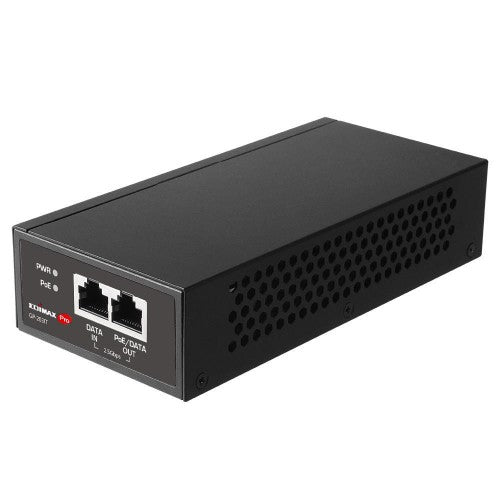

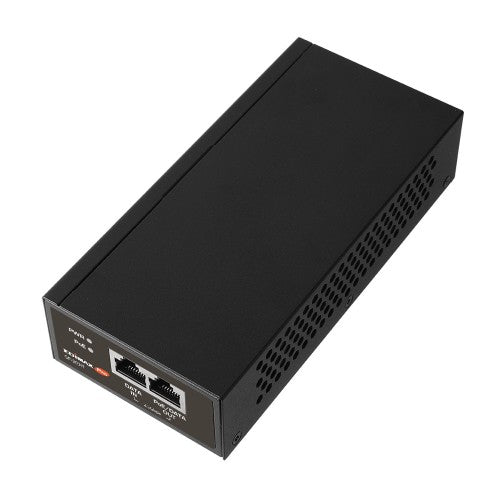

IEEE 802.3bt 2.5 Gigabit 90W PoE++ Injector, black

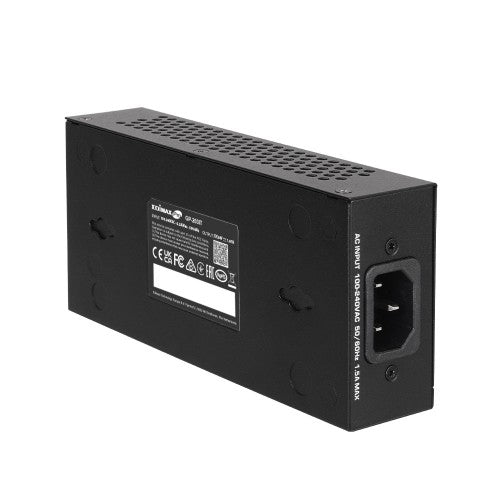

Built-in 90W power supply, it connects directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.
2.5 Gigabit Ports Ensure Faster Connections
Both the 10/100/1000/2500 Mbps input and output port ensure faster, more reliable connections for all applications. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Easy Plug-and-Play
Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration is required.
Fast and Simple Installation / Flexible Mounting Options
The convenient wall-mounting design saves space for a simple installation.
Power Your PoE Devices
Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 90W.
IP Surveillance
IP surveillance camera is now ubiquitous. This PoE can be supported with only one LAN cable which enables fast deployment and easy repositioning for business, office, residential environments.
Digital Signage
Digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, and the content can be updated quickly to enhance users' real-time information.
Other PoE Devices
Other PoE-enabled devices such as POS System, Information Kiosk, RFID readers, access controls, thin clients, alarms or sensors, benefits easy and cost-saving installation even when it is away from AC outlets.
Key Features
- Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Power over Ethernet (PoE) Standards
- Adds PoE capability to a non-PoE Ethernet switch or router
- 2.5 Gigabit LAN ports provide high-speed connectivity
- Supplies PoE output 95W to ensure Powered Device (PD) is able to be powered up to 90W
- PoE short circuit protection to safeguard network devices
- Delivers power and data to PoE device from up to 100 meters (328 feet) over a single Ethernet cable
- Reduces installation and equipment costs
- Easy plug-and-play desktop or wall-mounted installation
Description
High Power PoE PortBuilt-in 90W power supply, it connects directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.
2.5 Gigabit Ports Ensure Faster Connections
Both the 10/100/1000/2500 Mbps input and output port ensure faster, more reliable connections for all applications. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.
Easy Plug-and-Play
Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration is required.
Fast and Simple Installation / Flexible Mounting Options
The convenient wall-mounting design saves space for a simple installation.
Power Your PoE Devices
Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 90W.
IP Surveillance
IP surveillance camera is now ubiquitous. This PoE can be supported with only one LAN cable which enables fast deployment and easy repositioning for business, office, residential environments.
Digital Signage
Digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, and the content can be updated quickly to enhance users' real-time information.
Other PoE Devices
Other PoE-enabled devices such as POS System, Information Kiosk, RFID readers, access controls, thin clients, alarms or sensors, benefits easy and cost-saving installation even when it is away from AC outlets.
Specifications
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | |
| Wall mountable | Yes |
| Easy to install | Yes |
| Plug and Play | Yes |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| Product colour | Black |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Power protection features | Over current, Short circuit |
| LED indicators | Yes |
| Housing material | Metal |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Output power | 90 W |
| Power consumption (max) | 95 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.5 A |
| DC output voltage | 54 V |
| Technical details | |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 32 - 104 °F |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.5 A |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Weight | 601 g |
| Width | 73 mm |
| Depth | 154 mm |
| Height | 36 mm |
| Indication | |
| LED indicators | Yes |
