Description

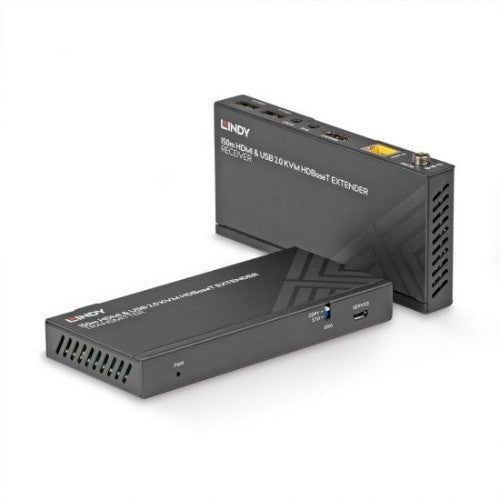

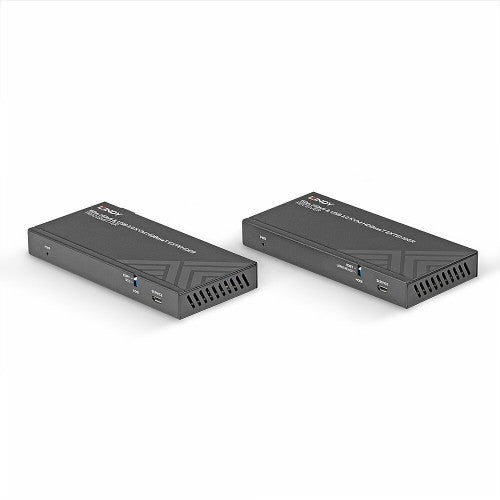

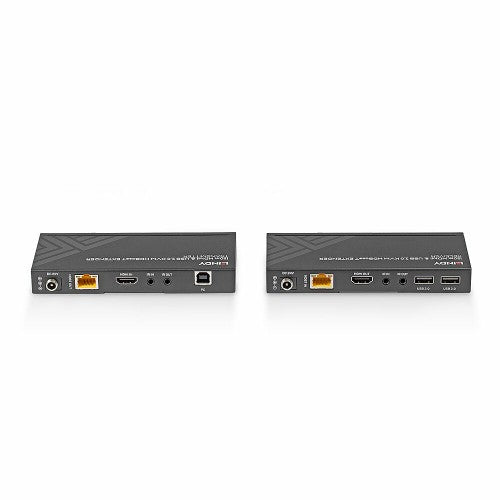

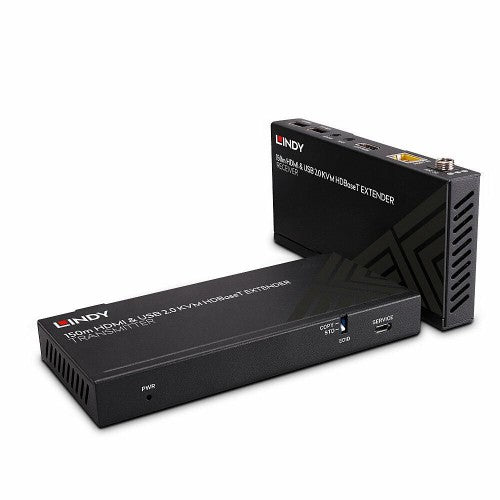

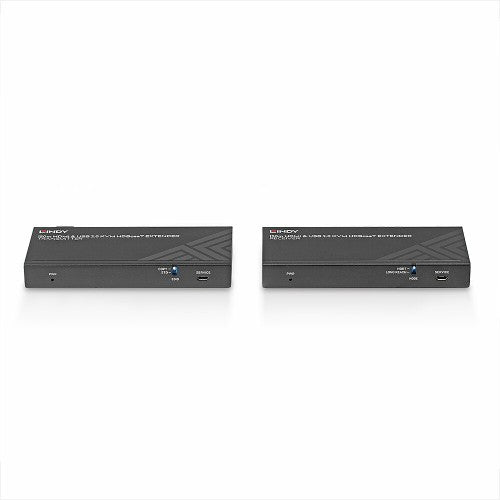

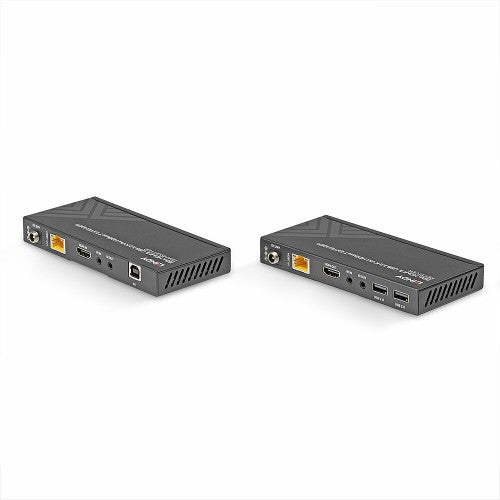

150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Setting up HDBT mode, this extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer while in Long Reach mode only USB HID devices are supported. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Key Features
- Distributes HDMI resolutions up to 150m over Cat.6 network cable via HDBaseT technology with Long Reach mode
- Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
- Supports USB 2.0 & bi-directional IR for control
- Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
Description
The Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
Setting up HDBT mode, this extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer while in Long Reach mode only USB HID devices are supported. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.
Specifications
| Features | |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 150 m |
| Cable types supported | Cat6 |
| Maximum digital resolution | 3840 x 2160 pixels |
| Product colour | Black |
| Material | Metal |
| Colour depth | 12 bit |
| Supported resolutions | 3840 x 2160 1920 x 1080 |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 18 Gbit/s |
| Infrared (IR) frequency range | 20 - 60 kHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Chipset | VS010-A0 |
| Transmitter | |
| Transmitter local video port | Yes |
| Transmitter local video port type | HDMI |
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter USB Type-B ports quantity | 1 |
| Transmitter Micro-USB ports quantity | 1 |
| Receiver | |
| Receiver local video port type | HDMI |
| RJ-45 ports quantity (receiver) | 1 |
| Receiver USB Type-A ports quantity | 2 |
| Receiver Micro-USB ports quantity | 1 |
| Ports & interfaces | |
| HDMI version | 2.0 |
| Remote (IR) output | 2 |
| Remote (IR) input | 2 |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (transmitter) (max) | 13.2 W |
| Power consumption (receiver) (max) | 13.2 W |
| DC-in jack | Yes |
| Weight & dimensions | |
| Transmitter width | 14 cm |
| Transmitter depth | 6.5 cm |
| Transmitter height | 1.8 cm |
| Transmitter weight | 790 g |
| Receiver width | 14 cm |
| Receiver depth | 6.5 cm |
| Receiver height | 1.8 cm |
| Receiver weight | 790 g |
| Package width | 245 mm |
| Package depth | 185 mm |
| Package height | 75 mm |
| Package weight | 1.02 kg |
| Packaging data | |
| Package width | 245 mm |
| Package depth | 185 mm |
| Package height | 75 mm |
| Package weight | 1.02 kg |
| Cables included | IR, USB Type-A to USB Type-B |
| Manual | Yes |
| Packaging content | |
| Cables included | IR, USB Type-A to USB Type-B |
| Manual | Yes |
| Included power plug types | AU, EU, UK, US |
| Screws included | Yes |
| Technical details | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Other features | |
| Bandwidth | 18 Gbit/s |
| Infrared (IR) frequency range | 20 - 60 kHz |
| HDCP | Yes |
| HDCP version | 2.2 |
| Extended display identification data (EDID) | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
