Description

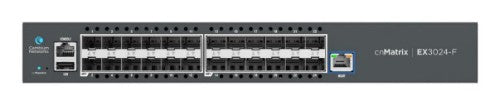

cnMatrix EX3024F, Intelligent Ethernet Fiber Aggregation Switch, 24 - 10 Gbps SFP+ ports, dual internal AC power supplies - no power cord
The cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced security. The EX3024F is a fiber aggregation switch that has all 10 Gbps SFP+ fiber ports. Also, this switch has dual internal power supplies for additional robustness and redundancy. These switches come with a five-year limited lifetime warranty.
Key Features
- Zero-touch deployments
- Policy-based automation
- Auto-device profiling and segmentation
- Non-blocking, line-rate architecture with
- fully featured L2/L3 switching
Description
Cambium Networks’ next-generation cnMatrix™ switching platform offers a cloud-managed, high-performance, feature-rich enterprise-grade ethernet switching solutionThe cnMatrix series of fully managed switches delivers full Layer 2 and Layer 3 capabilities with enhanced security. The EX3024F is a fiber aggregation switch that has all 10 Gbps SFP+ fiber ports. Also, this switch has dual internal power supplies for additional robustness and redundancy. These switches come with a five-year limited lifetime warranty.
Specifications
| Management features | |
|---|---|
| ARP inspection | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Switch layer | L2/L3 |
| Ports & interfaces | |
| SFP+ module slots quantity | 24 |
| Basic switching RJ-45 Ethernet ports quantity | 0 |
| Basic switching RJ-45 Ethernet ports type | No |
| USB 2.0 ports quantity | 1 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Network | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support | Yes |
| Policy-based routing | Yes |
| IGMP snooping | Yes |
| IGMP entries | 512 |
| Data transmission | |
| Throughput | 480 Mpps |
| Number of static routes | 64 |
| Packet buffer memory | 3 MB |
| MAC address table | 32000 entries |
| Forwarding rate | 120 Mpps |
| Security | |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| IGMP entries | 512 |
| DHCP features | DHCP snooping |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Performance | |
| Processor frequency | 1400 MHz |
| Mean time between failures (MTBF) | 928678 h |
| Flash memory | 256 MB |
| Built-in processor | Yes |
| Packet buffer memory | 3 MB |
| Stackable | Yes |
| Power | |
| Power consumption (max) | 75 W |
| Power supply included | Yes |
| Number of power supply units | 2 |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
| Width | 330 mm |
| Depth | 230.5 mm |
| Height | 444 mm |
| Weight | 3 kg |
| Technical details | |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 1400 MHz |
| Mean time between failures (MTBF) | 928678 h |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 3 MB |
| Flash memory | 256 MB |
